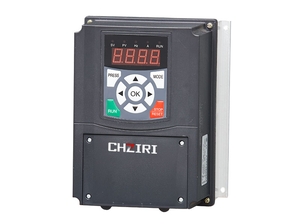

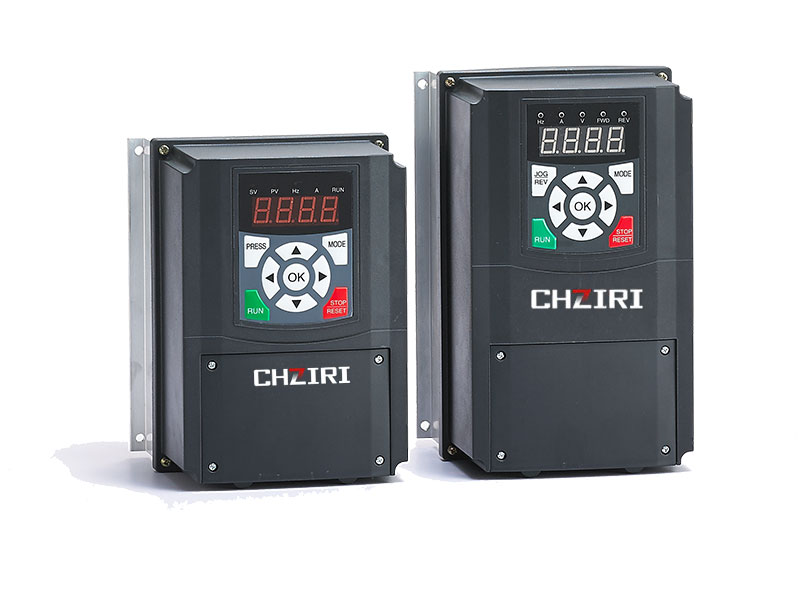

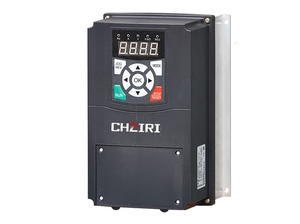

ZVF600 IP54 Pump Inverter for Water Systems

Description

Overview

The ZVF600 pump inverter is an IP54 unit designed for installation near a pump motor. It supports the captured 220V and 380V pump-motor ranges and can control one pump or coordinate main and auxiliary pumps.

Pump-control functions

V/F and vector control with constant-pressure operation.
Water-shortage protection with automatic restart when water returns.
High- and low-level response, antifreeze and anti-rust functions for pump protection.
One-button pressure setting, quick parameter viewing and pump-specific fault protection.

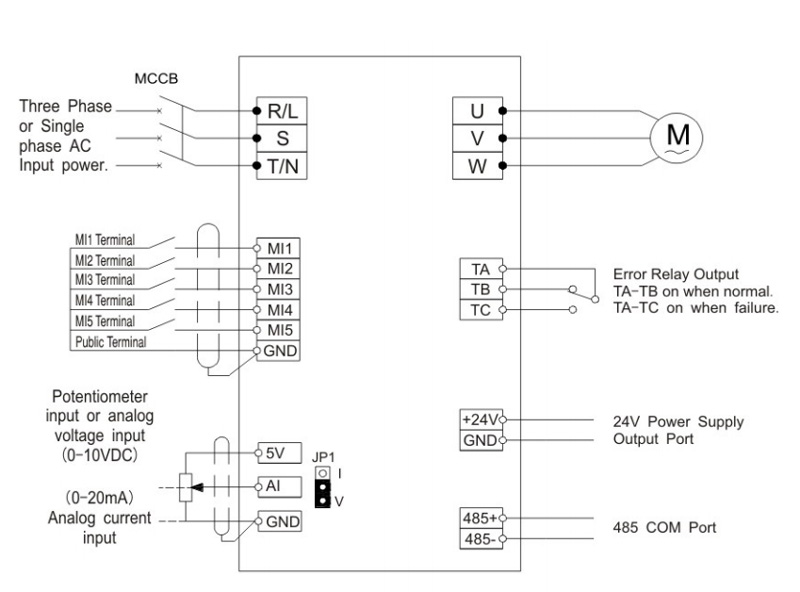

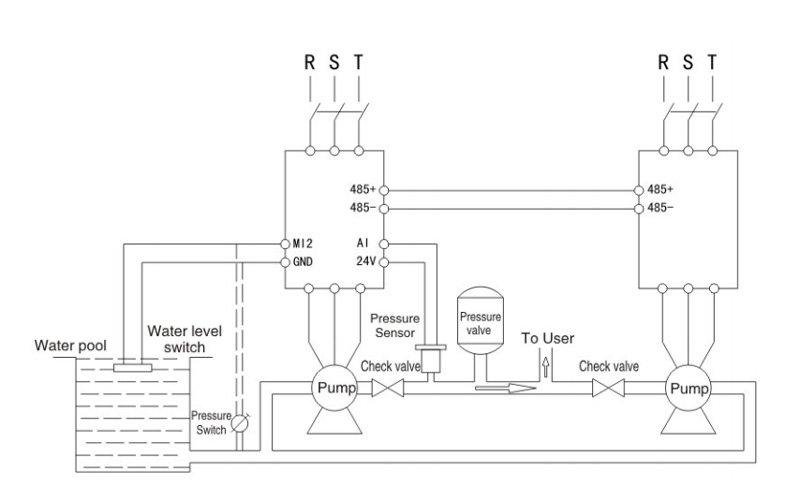

Two-wire 4-20mA sensor support for master-slave pump control.

Applications

Typical applications include constant-pressure water supply, firefighting equipment, environmental systems, water-treatment equipment and related pump installations.

Model selection and technical data

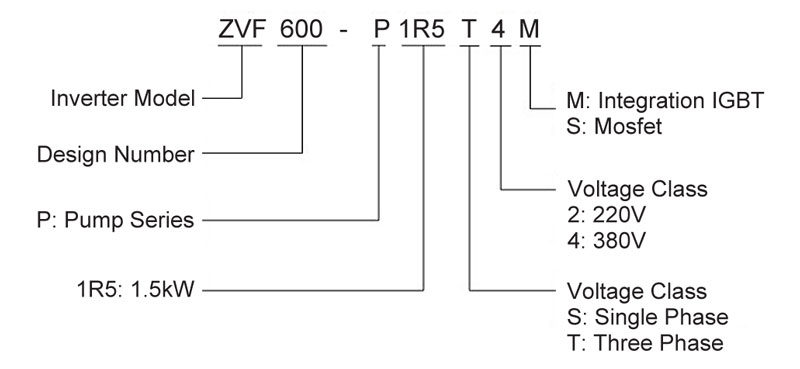

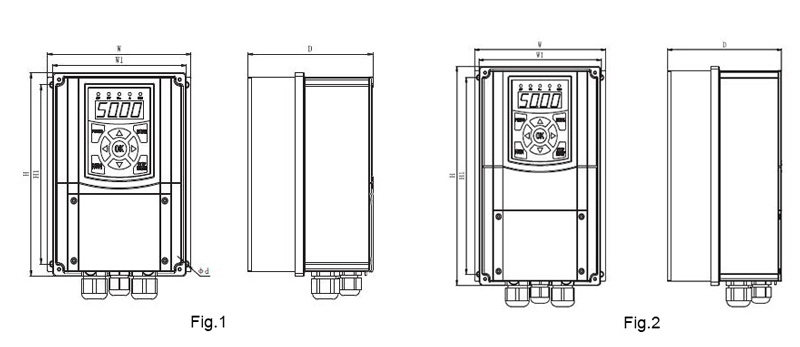

Model selection and mounting dimensions

Inverter Model	Voltage (V)	Power (KW)	Output Current (A)	Dimension (mm)						Figure
Inverter Model	Voltage (V)	Power (KW)	Output Current (A)	H	H1	W	W1	D	d	Figure
ZVF600-P0R7S2M	220	0.75	4.5	193	170	150	140	131	4.5	Fig.1
ZVF600-P1R5S2M		1.5	7.0
ZVF600-P2R2S2M		2.2	10
ZVF600-P3R7S2M		3.7	16	228	205	150	140	131	4.5	Fig.2
ZVF600-P0R7T4M	380	0.75	2.5	193	170	150	140	131	4.5	Fig.1
ZVF600-P1R5T4M		1.5	3.7
ZVF600-P2R2T4M		2.2	5.0
ZVF600-P3R0T4M		3	6.8
ZVF600-P4R0T4M		4	9.0	228	205	150	140	131	4.5	Fig.2
ZVF600-P5R5T4M		5.5	13
ZVF600-P7R5T4M		7.5	17
