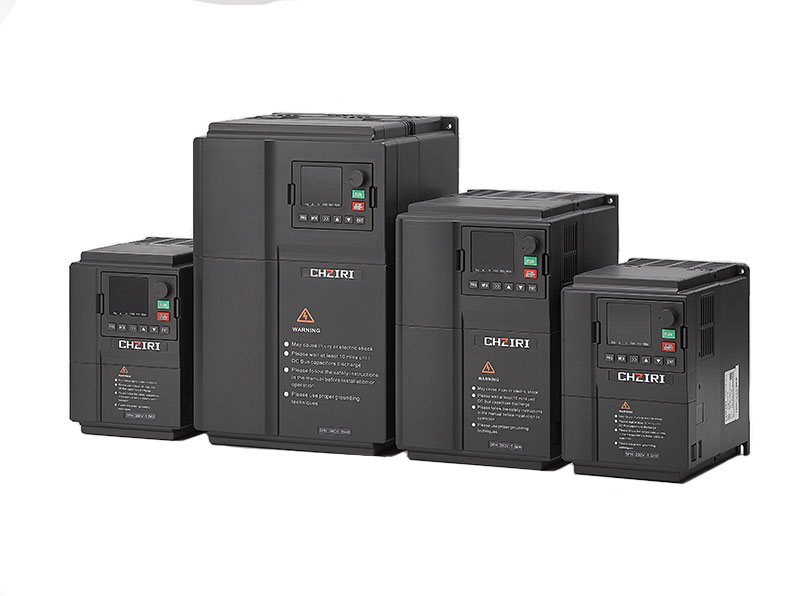

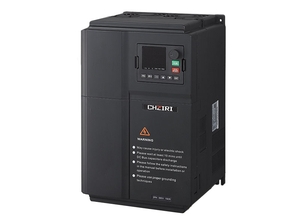

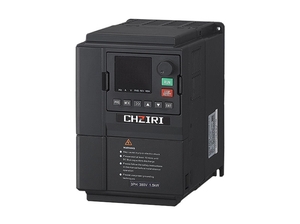

The ZVF380 is a vector frequency converter for asynchronous-motor control. It offers sensorless vector control, closed-loop vector control and V/F control, with motor auto-tuning and a 0-500Hz output range.

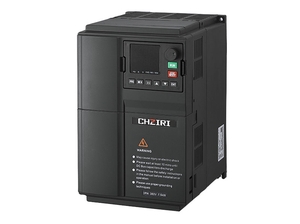

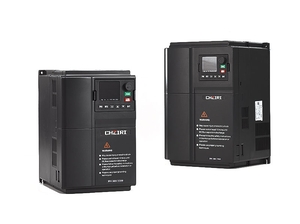

The IP20 series is intended for indoor installation below 1000m altitude, with wall-mounted units and floor-standing cabinet arrangements represented in the captured data.

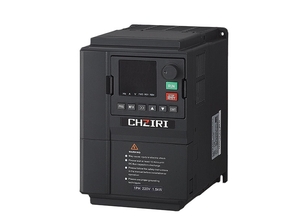

| Inverter Model | Power (KW) | Current (A) | Dimension (mm) | Figure | |||||
|---|---|---|---|---|---|---|---|---|---|
| H | H1 | W | W1 | D | d | ||||

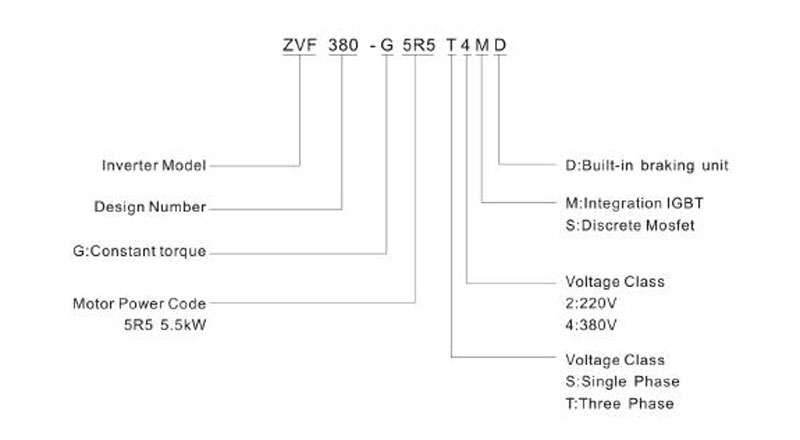

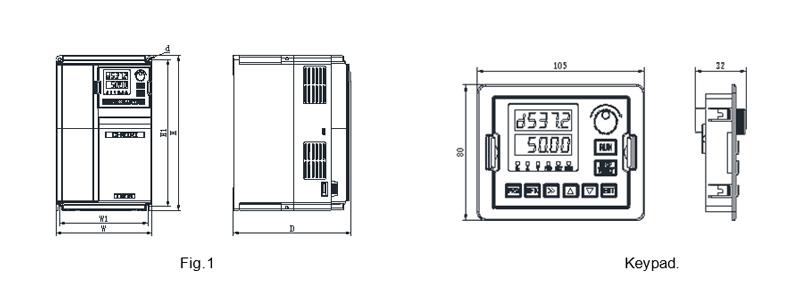

| ZVF380-G0R4S2MD | 0.4 | 2.3 | 186 | 172 | 125 | 113 | 180 | 5 | Fig.1 |
| ZVF380-G0R7S2MD | 0.75 | 4 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G1R5S2MD | 1.5 | 7.0 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G2R2S2MD | 2.2 | 9.6 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G3R7S2MD | 3.7 | 17 | 249 | 236 | 160 | 147 | 197 | 5 | |
| ZVF380-G5R5T2MD | 5.5 | 25 | 322 | 304 | 208 | 194 | 204 | 6 | |
| ZVF380-G7R5T2MD | 7.5 | 32 | 322 | 304 | 208 | 194 | 204 | 6 | |
| ZVF380-G0R7T4MD | 0.75 | 2.1 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G1R5T4MD | 1.5 | 3.8 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G2R2T4MD | 2.2 | 5.1 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G3R0T4MD | 3.0 | 6.8 | 186 | 172 | 125 | 113 | 180 | 5 | |
| ZVF380-G4R0T4MD | 4.0 | 9.0 | 249 | 236 | 160 | 147 | 197 | 5 | |
| ZVF380-G5R5T4MD | 5.5 | 13 | 249 | 236 | 160 | 147 | 197 | 5 | |
| ZVF380-G7R5T4MD | 7.5 | 17 | 249 | 236 | 160 | 147 | 197 | 5 | |
| ZVF380-G011T4MD | 11 | 25 | 322 | 304 | 208 | 194 | 204 | 6 | |
| ZVF380-G015T4MD | 15 | 32 | 322 | 304 | 208 | 194 | 204 | 6 | |
| Item | Item Description | ||
|---|---|---|---|
| Input | Rated Voltage&Frequency | Single/Three phase 200-240VAC, Three phase 360-440VAC,50/60Hz | |
| Allowable voltage range | Voltage fluctuate range: ±10% | ||
| Voltage unbalance rate: <3% | |||
| Frequency fluctuation:≤±5% | |||
| Output | Rated voltage | Three phase 0～Input AC voltage | |
| Frequency | 0.00～500.00Hz | ||
| Overload capacity | Type G:150% 1minute,180% 3 second, 200% Instant protection | ||
| Type P:120% 1minute,150% 3 second, 180% Instant protection | |||
| Control function | Modulation | Optimize space voltage vector PWM modulation | |
| Control method | Closed loop control (FVC), open loop control (SVC), V/F control | ||
| Frequency resolution | Digital setting:0.01Hz; Analog setting: Max. frequency×0.1% | ||
| Starting torque | Type G:0.5Hz/150%（SVC); 0Hz/180%（FVC） | ||
| Type P:0.5Hz/100% | |||
| Speed range | 1:100 （SVC） | 1:1000 （FVC） | |
| Steady velocity precision | ±0.5%（SVC） | ±0.02%（FVC） | |
| Torque control precision | ±5%（FVC） | ||
| Torque boost | Automatic torque boost,automatically boost torque according to output current. | ||
| Manual torque boost, range:0.1～30.0% | |||
| V/F curve | 3 ways:linear curve; Multi-point Curve; Nth power V/F curve. | ||
| (1.2th power,1.4th power,1.6th power,1.8th power,2th power) | |||
| V/F separation | 2ways:full separation, half separation | ||
| Acceleration and deceleration curve | Linear or S-curve acceleration/deceleration mode. 4 acceleration and deceleration time, the range of acceleration and deceleration time is 0.0～6500.0s. | ||
| Carrier frequency | 1.0～15.0KHz | ||
| Jog function | Jog frequency range: 0.01～50.00Hz, jog acceleration and deceleration time | ||
| 0.1～6500.0 can be set. | |||
| Simple PLC multi-speed operation | Realize up to 16-speed operation through built-in PLC or control terminal. | ||
| Automatic voltage regulator(AVR) | When the grid voltage changes, it can automatically adjust the PWM output to keep the output voltage constant. | ||
| Built-in PID | Conveniently form a closed-loop control system, suitable for process control such as pressure control and flow control. | ||
| Over-voltage over current stall control | Automatically limit the current and voltage during operation to prevent | ||
| frequent over-current and over-voltage trips. | |||
| Rapid current limit function | Minimize over-current faults and protect the inverter from normal operation. | ||
| Torque limit and control | The "shovel" feature automatically limits the torque during operation to prevent frequent over-current trips; closed-loop vector mode can realize torque control. | ||
| Special feature | Outstanding performance | Realize asynchronous motor control with high-performance current vector control technology. | |
| Power dip ride through | When instantaneous power failure occurs, the load feedback energy is used to compensate for the voltage drop, and maintain the inverter to continue running for a | ||
| short time. | |||
| Rapid current limit | Avoid frequent over-current faults of the inverter. | ||
| VirtualI/O | 5 groups of virtual DIDO, can realize simple logic control. | ||
| Timing control | Timing control function: set time range 0.0Min ~ 6500.0Min. | ||
| Multi-motor switchover | Two motors can be switched over via two groups of motor parameters. | ||
| Multithreaded bus support | Support 4 field buses: Modbus, Profibus-DP, CANlink, CANopen . | ||
| Multi-encoder support | Support differential, open collector, UVW, resolver, sine and cosine encoders. | ||
| Operation function | Operation instruction | Operation panel control, external terminal control, serial communication control. Can be switched in a variety of ways. | |
| Frequency setting | 10 kinds of frequency sources: digital setting, analog voltage setting, analog current setting. Pulse setting, serial port setting. Can be switched in a variety of ways. | ||
| Auxiliary frequency source | 10 kinds of auxiliary frequency sources. Flexible realization of auxiliary frequency fine-tuning and frequency synthesis. | ||

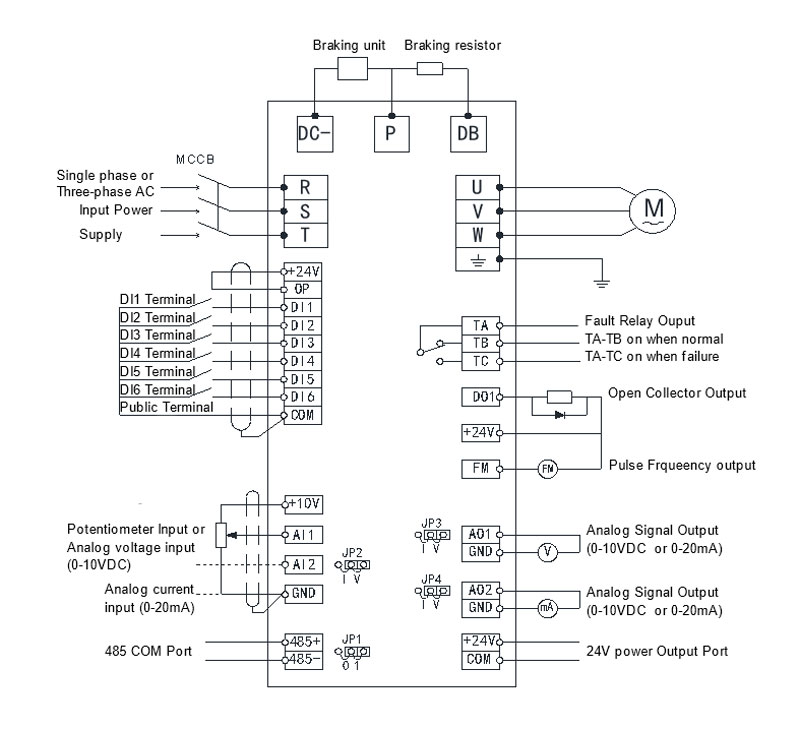

| Input terminal | Standard: 6digital input terminals, one of which supports high-speed pulse input up to 100kHz. 2 analog input terminals, 1 only supports 0～10V voltage input. 1 supports 0 ～ 10V voltage input or 0 ～ 20mA current input. Expansion capacity: 5 digital input terminals. 1 analog input terminal, support -10V ~ 10V voltage input, and support PT100/PT1000. | ||
| Output terminal | Standard: 1 high-speed pulse output terminal (open collector type is optional). Support 0~100kHz square wave signal output. 1 digital output terminal, 1 relay output terminal. 2 analog output terminals, support 0~20mA current output or 0~10V voltage output. Expansion capacity: 1 digital output terminal, 1 relay output terminal. 1 analog output terminal, support 0~20mA current output or 0~10V voltage output.. | ||
| Braking function | Dynamic braking | External braking resistor, maximum braking torque 100%. | |
| DC braking | It can be selected separately when starting and stopping, the action frequency is 0～600Hz, the action current level is 0～150%, the action time is 0～50 seconds, continuous can be set. | ||
| LED display | Real-time display of the inverter's operating status, monitoring parameters, function parameters, fault codes and other information. | ||
| Other functions | Jump frequency, counter, speed tracking, restart after instantaneous power failure, upper and lower limit of frequency, adjustable acceleration and deceleration mode, two-wire/three-wire control, swing frequency control, automatic fault reset, frequency arrival output, cooling fan control, multi-function buttons Custom settings, etc. | ||
| Protection function | Power-on motor short-circuit detection, input and output phase loss protection, over current protection, overvoltage protection, under voltage protection, overheat protection, overload protection, etc. | ||
| Optional accessories | Braking component, remote operation panel and connecting cable , communication board. | ||
| Environment | Place to be used | Indoors, free from direct sunlight, free of dust, corrosive gas, flammable and explosive gas, oil mist, water vapor, dripping water or salt. | |
| Altitude | Less than 1000 meters. | ||
| Ambient temperature | -10～+45℃[The bare is:-10～+50℃] | ||
| Humidity | 20～90%RH,No condensation. | ||
| Vibration | <0.5G | ||
| Storage temperature | -20～+60℃ | ||
| Structure | Protection level | IP20 | |
| Cooling method | Forced air cooling | ||
| Installation method | Wall-mounted, floor-standing electric control cabinet. | ||
