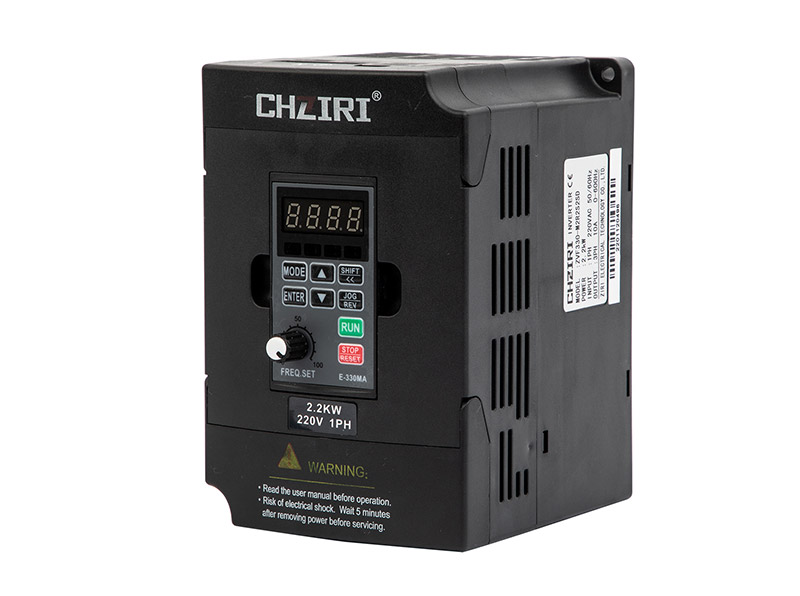

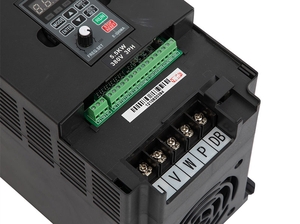

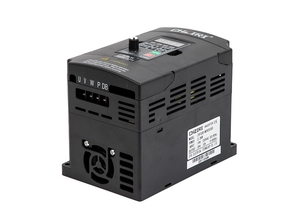

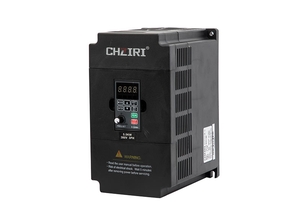

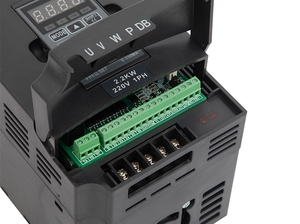

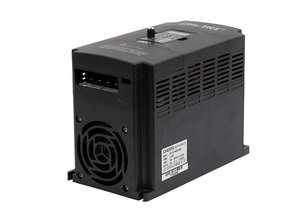

ZVF330 Compact AC Drive for Small Motors

Description

Overview

The ZVF330 is a compact V/F AC drive for small-power machinery and OEM equipment. It supports single-phase 220V input, three-phase 220V input and three-phase 380V input model groups without combining their ratings.

Control and operating functions

0-600Hz output, multi-point V/F curves, multi-step speed and wobble-frequency operation.
Built-in PID, DC braking, automatic voltage regulation and adaptive current and voltage limiting.

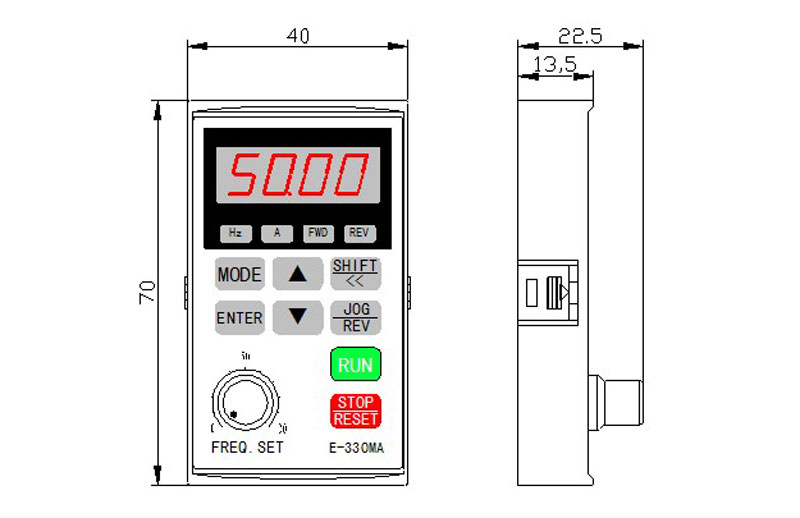

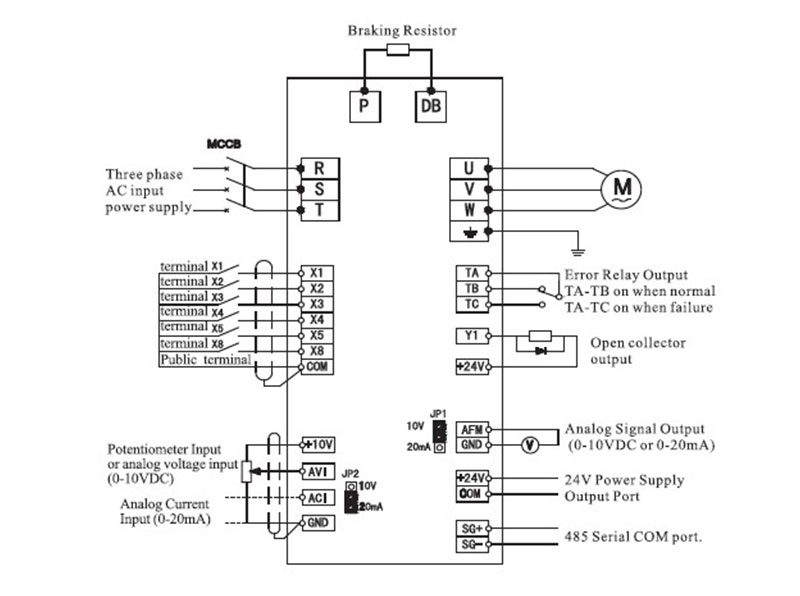

Remote keypad operation, keypad parameter copying and Modbus communication.
Compact installation format with hardware and software protection.

Applications

Typical uses include small automation equipment, electronic machinery, food packaging, woodworking and glass equipment, metal processing, machine tools, wire drawing, paper, chemical, pharmaceutical and textile machinery, and small fans or pumps.

Model selection and technical data

Input supply and power range

Input Voltage (V)	Output Voltage(V)	Power Range (kW)
Single phase 220V± 20%	Three phase 0~Input Voltage	0.4kW~2.2kW
Three phase 380V ± 20%	Three phase 0~Input Voltage	0.75kW~7.5kW

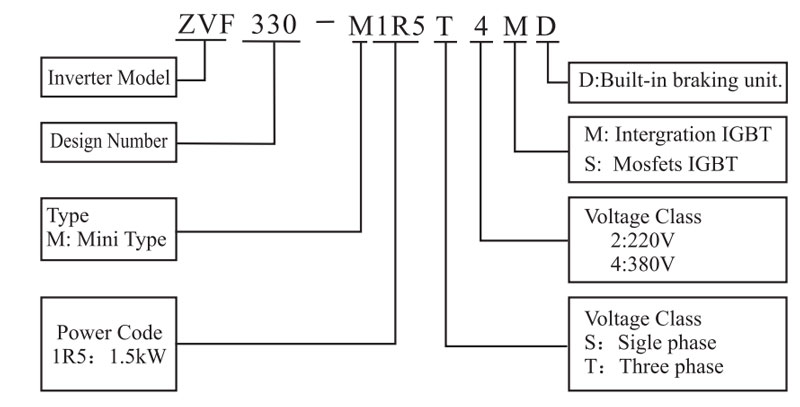

Single-phase 220V and three-phase 380V model selection

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)						Figure
Inverter Model	Voltage (V)	Power (KW)	Current ( A)	H	H1	W	W1	D	d	Figure

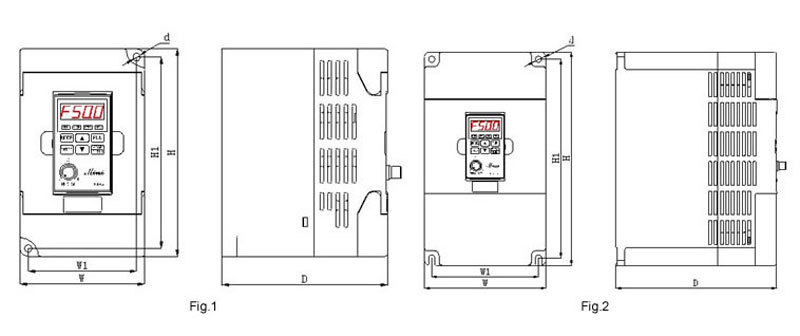

ZVF330-M0R4S2MD	220V	0.4	2.4	142	131	85	74	125	Ф5	Fig.1
ZVF330-M0R7S2MD		0.75	4.5	142	131	85	74	125	Ф5
ZVF330-M1R5S2SD		1.5	7.0	151	140	100	89.5	129	Ф5
ZVF330-M2R2S2SD		2.2	10	151	140	100	89.5	129	Ф5
ZVF330-M0R7T4SD	380V	0.75	2.5	151	140	100	89.5	129	Ф5
ZVF330-M1R5T4SD		1.5	3.7	151	140	100	89.5	129	Ф5
ZVF330-M2R2T4SD		2.2	5.0	151	140	100	89.5	129	Ф5
ZVF330-M3R7T4MD		3.7	9.0	220	205	125	110	176	Ф6.5	Fig.2
ZVF330-M5R5T4MD		5.5	13	220	205	125	110	176	Ф6.5
ZVF330-M7R5T4MD		7.5	17	220	205	125	110	176	Ф6.5

Three-phase 220V model selection

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)						Figure
Inverter Model	Voltage (V)	Power (KW)	Current ( A)	H	H1	W	W1	D	d	Figure
ZVF330-M0R7T2MD	220V	0.75	4.5	151	140	100	89.5	129	Ф5	Fig.1
ZVF330-M1R5T2SD		1.5	7.5	151	140	100	89.5	129	Ф5
ZVF330-M2R2T2SD		2.2	10	151	140	100	89.5	129	Ф5
ZVF330-M3R7T2MD		3.7	16	220	205	125	110	176	Ф6.5	Fig.2
ZVF330-M5R5T2MD		5.5	25	220	205	125	110	176	Ф6.5	Fig.2
