ZVF300 T2 Frequency Drive

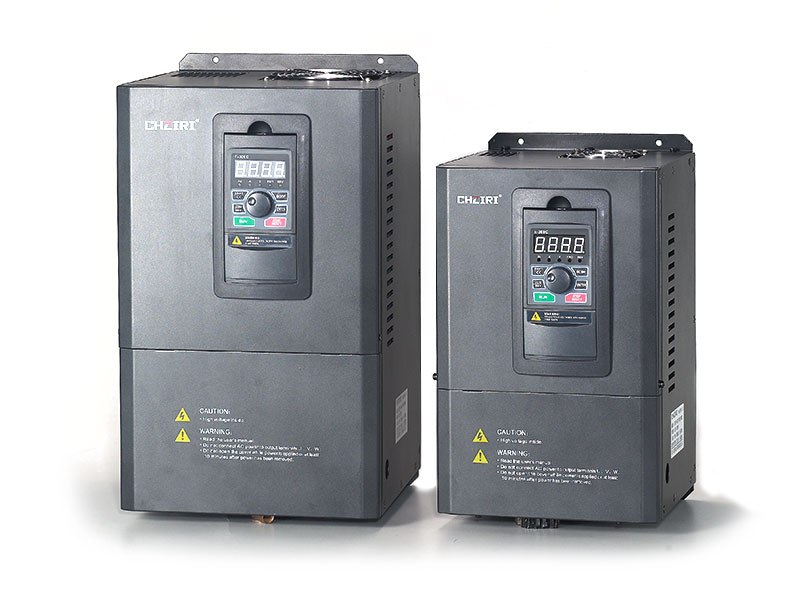

ZVF300 T2 Drive Range

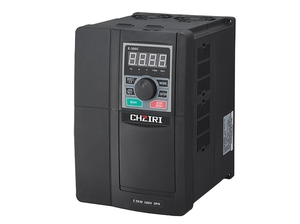

ZVF300 T2 Compact Drive

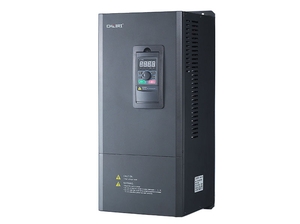

ZVF300 T2 Standard Drive

Description

Overview

The ZVF300 T2 is an open-loop vector frequency drive for three-phase 220V asynchronous motors. The captured range covers 0.4-110kW models for variable-speed machinery.

Control and operating functions

  • 0-600Hz output with multi-point V/F settings, adaptive current and voltage limiting, undervoltage restraint and automatic voltage regulation.
  • Multi-step speed and wobble-frequency operation, remote-keypad control and keypad parameter copying for multiple drives.
  • Built-in PID for temperature, pressure and flow control, plus Modbus communication with PLCs and industrial computers.
  • Hardware and software protection with an independent air path and enclosed electrical section.

Applications

The series is intended for speed control in metallurgy, plastics, textiles, food processing, chemical production, paper making, pharmaceutical machinery, printing, construction materials and lifting equipment.

Model selection and technical data

Input, output and overload ratings

Input Voltage(V)

Output Voltage (V)

Power Range （kW）

Three phase 220V± 20%

Three phase 0~input voltage

0.4kW~110kW

Overload Capacity : 150% 1 minute ;180% 1 second ;200% transient protection .

Three-phase 220V model selection and mounting dimensions

Inverter Model

Power

(KW)

Current

(A)

Dimension (mm)

Figure

H

H1

W

W1

D

d

ZVF300-G0R4T2MD

0.4

2.4

185

175

118

108

170

Ф5

Fig.1

ZVF300-G0R7T2MD

0.75

4.5

ZVF300-G1R5T2MD

1.5

7.0

185

175

118

108

190

Ф5

ZVF300-G2R2T2MD

2.2

10

ZVF300-G3R7T2MD

3.7

16

215

205

145

135

193

Ф5

ZVF300-G5R5T2MD

5.5

25

265

253

185

174

215

Ф6

ZVF300-G7R5T2MD

7.5

30

380

360

220

145

230

Ф6

Fig.2

ZVF300-G011T2M

11

42

460

443

260

177

268

Ф7

ZVF300-G015T2M

15

55

ZVF300-G018T2M

18.5

70

620

603

265

182

300

Ф9

ZVF300-G022T2M

22

80

ZVF300-G030T2M

30

110

ZVF300-G037T2M

37

130

720

702

365

240

360

Ф9

ZVF300-G045T2M

45

160

ZVF300-G055T2M

55

200

ZVF300-G075T2M

75

270

1190

493

390

Fig.3

ZVF300-G090T2M

90

320

ZVF300-G110T2M

110

380

1430

660

415

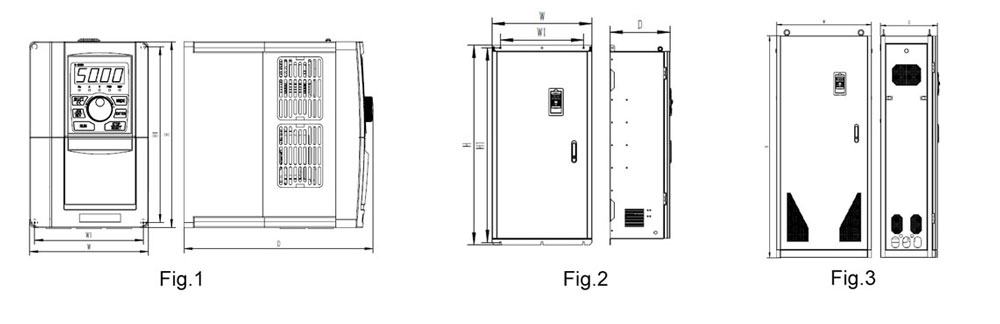

ZVF300 T2 outline and mounting drawings for the model-selection table.
ZVF300 T2 outline and mounting drawings for the model-selection table.

Drawings and connection details

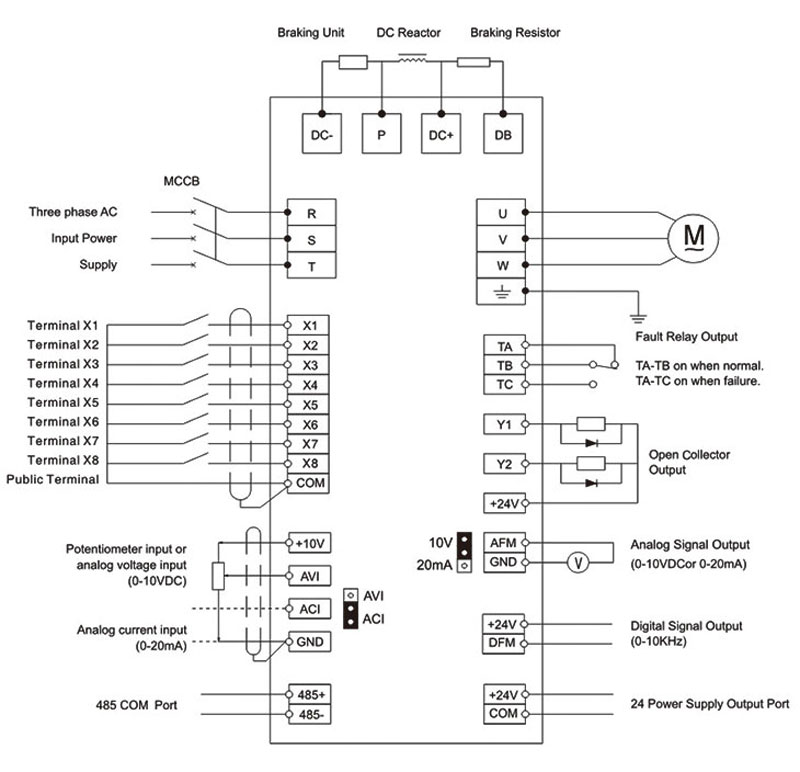

ZVF300 T2 power, motor, control-terminal and communication wiring diagram.
ZVF300 T2 power, motor, control-terminal and communication wiring diagram.
