Description

Overview

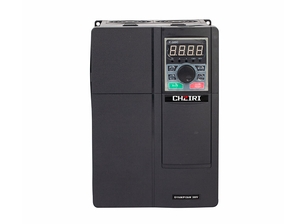

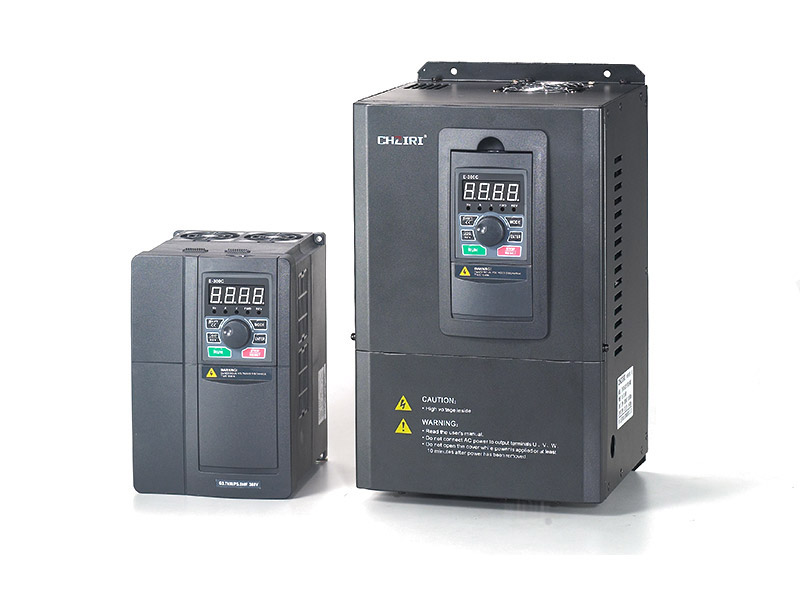

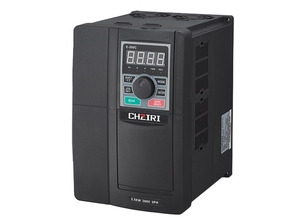

The ZSI800 converts photovoltaic DC power to AC for water-pump motors and can also accept the stated AC supply classes. Separate 220V and 380V model groups cover applications from 0.4kW to 160kW in the selection data.

Solar pump control

  • MPPT tracks the available photovoltaic voltage and current and adjusts output frequency as solar conditions change.
  • Automatic water-level control can stop at a high tank level and restart when the level falls.
  • Dry-run protection stops the pump when the water source is unavailable.
  • Weak-light hibernation and strong-light restart support unattended daily operation.
  • Keyboard encoder resolution settings and multiple power-input modes support system setup.

Applications

Applications include domestic groundwater supply, agricultural and forestry irrigation, desert control, livestock watering, island water supply and wastewater projects. The system can pump from wells, rivers, lakes or other suitable sources and store water in a tank rather than using battery storage.

Model selection and technical data

Model selection and mounting dimensions

Inverter Model

Input Voltage(v)

Power (KW)

Current (A)

Dimension (mm)

Figure

H

H1

W

W1

D

d

ZSI800-0R4S2

260-380VDC

(Single Phase

220V±15%)

0.4

2.4

185

175

118

108

170

5

Fig.1

ZSI800-0R7S2

0.75

4.5

ZSI800-1R5S2

1.5

7.0

190

ZSI800-2R2S2

2.2

10.0

ZSI800-0R7T4

420-750VDC

(Three Phase

400V±15%)

0.75

2.5

170

ZSI800-1R5T4

1.5

3.7

ZSI800-2R2T4

2.2

5.0

ZSI800-3R7T4

3.7

9.0

190

ZSI800-5R5T4

5.5

13

215

205

145

135

193

ZSI800-7R5T4

7.5

17

ZSI800-011T4

11

25

265

253

185

174

215

6

ZSI800-015T4

15

32

ZSI800-018T4

18.5

37

385

370

220

150

210

7

Fig.2

ZSI800-022T4

22

45

ZSI800-030T4

30

60

450

435

260

180

225

ZSI800-037T4

37

75

ZSI800-045T4

45

90

510

490

320

220

275

9

ZSI800-055T4

55

110

ZSI800-075T4

75

160

570

550

380

260

320

ZSI800-090T4

90

176

ZSI800-110T4

110

210

ZSI800-132T4

132

253

ZSI800-160T4

160

300

800

775

460

350

330

11

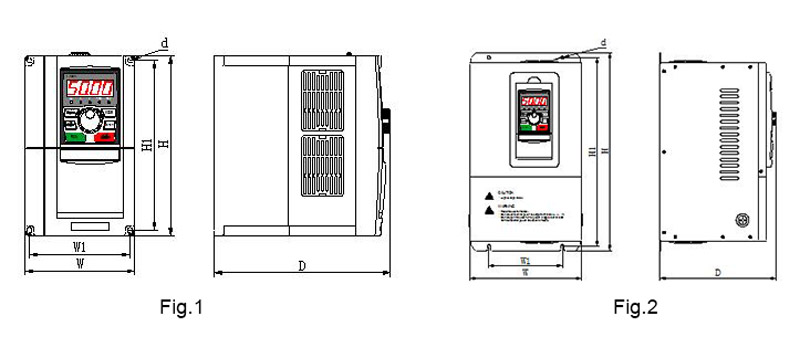

ZSI800 outline and mounting drawings for the selection table.
ZSI800 outline and mounting drawings for the selection table.

Drawings and connection details

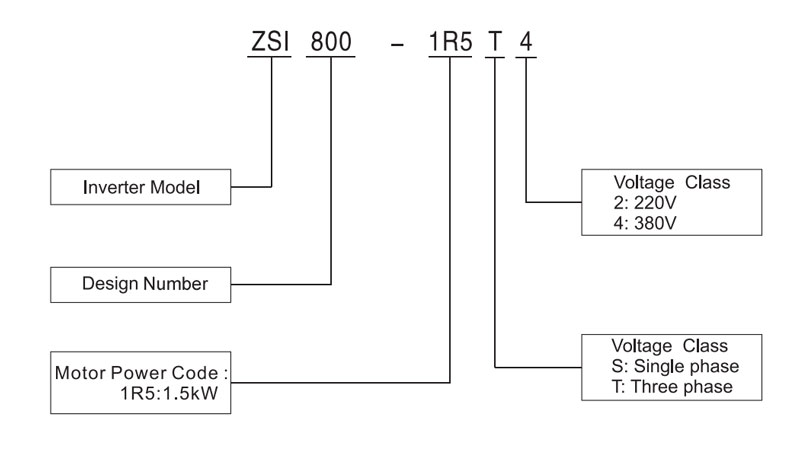

ZSI800 model-code structure for power and voltage class.
ZSI800 model-code structure for power and voltage class.

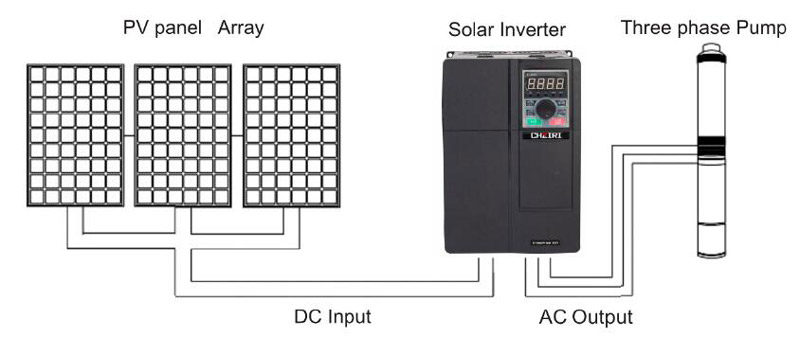

Solar array, inverter and three-phase pump connection principle.
Solar array, inverter and three-phase pump connection principle.

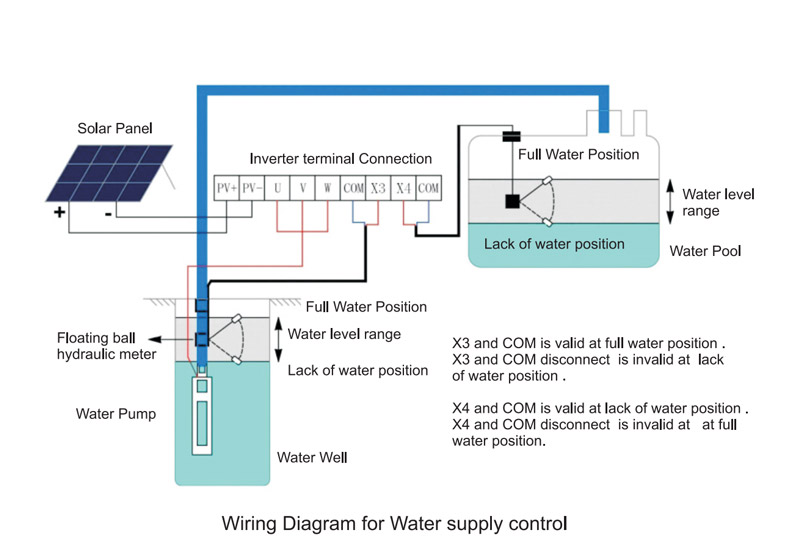

Water-supply wiring diagram with float switches and level positions.
Water-supply wiring diagram with float switches and level positions.

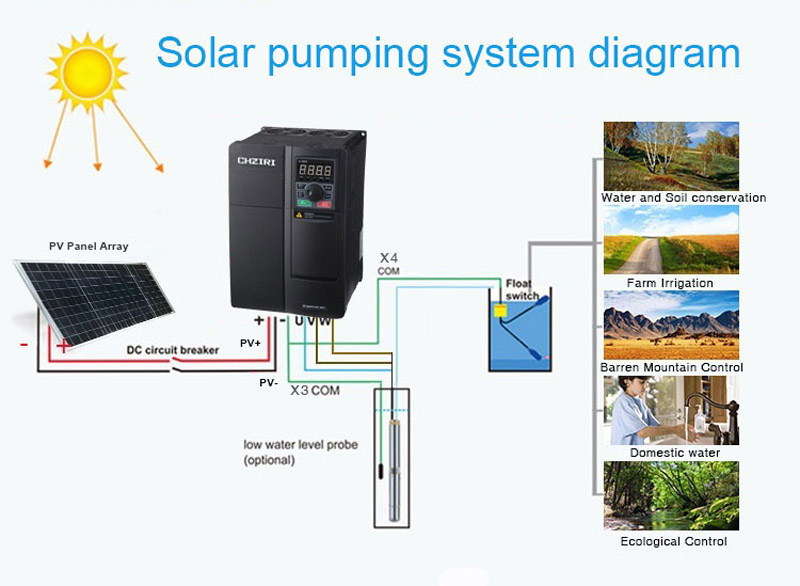

Solar pumping system layout with well pump and storage tank.
Solar pumping system layout with well pump and storage tank.
