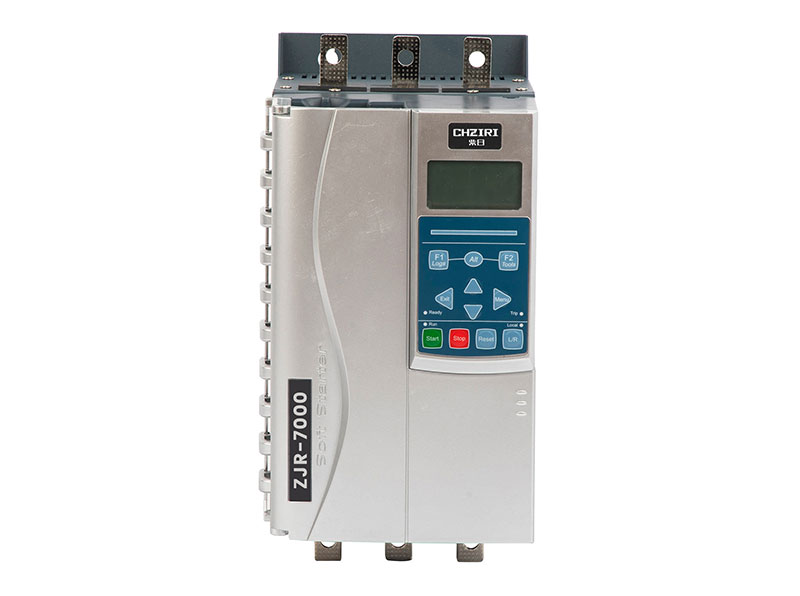

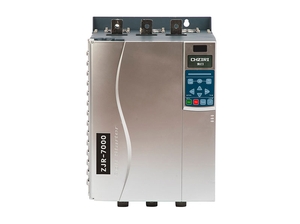

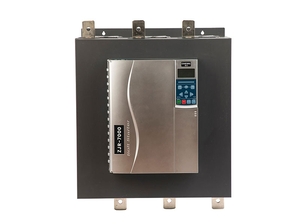

ZJR7000 690V Built-in Motor Soft Starter

Description

Overview

The ZJR7000 is a 690V soft starter with integrated bypass switching. The captured selection table covers 11-400kW models; separately mentioned 450-1200kW customized ranges are not combined with the stocked model data.

Control and installation

Multilingual LCD, guided programming, advanced start and stop control and motor protection.
Real-time metering and 99 time-stamped event records.
Optional remote panel-mount keypad for centralized cabinet access.
Plug-in control terminals and cable routing from the top, left or bottom.

Applications

Representative loads include pumps, mills, fans, compressors, lifting equipment, mixers, crushers, conveyors and heat pumps.

Model selection and technical data

Technical and application data

Soft starter Model	Rated Power(kW)	Voltage(V)	Rated Current (A)	Outline Size			Install Size			Figure
Soft starter Model	Rated Power(kW)	Voltage(V)	Rated Current (A)	A	C	E	B	D	d	Figure
ZJR7000-0110-V7	11kW	690V	16A	152	292	215	92	269	M6	Fig.1
ZJR7000-0150-V7	15kW	690V	22A
ZJR7000-0185-V7	18.5kW	690V	27A
ZJR7000-0220-V7	22kW	690V	30A
ZJR7000-0300-V7	30kW	690V	37A
ZJR7000-0370-V7	37kW	690V	45A
ZJR7000-0450-V7	45kW	690V	60A
ZJR7000-0550-V7	55kW	690V	75A
ZJR7000-0750-V7	75kW	690V	90A	274	408	260	160	385	M8	Fig.2
ZJR7000-0900-V7	90kW	690V	110A
ZJR7000-1150-V7	115kW	690V	145A
ZJR7000-1320-V7	132kW	690V	180A	440	530	290	320	530	M8	Fig.3
ZJR7000-1600-V7	160kW	690V	220A
ZJR7000-1850-V7	185kW	690V	260A
ZJR7000-2000-V7	200kW	690V	260A
ZJR7000-2500-V7	250kW	690V	320A
ZJR7000-2800-V7	280kW	690V	370A
ZJR7000-3200-V7	320kW	690V	400A
ZJR7000-4000-V7	400kW	690V	500A

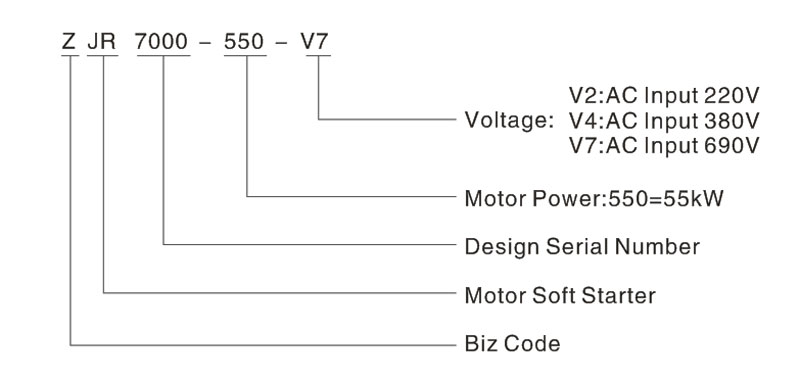

Dimensions, wiring and model references

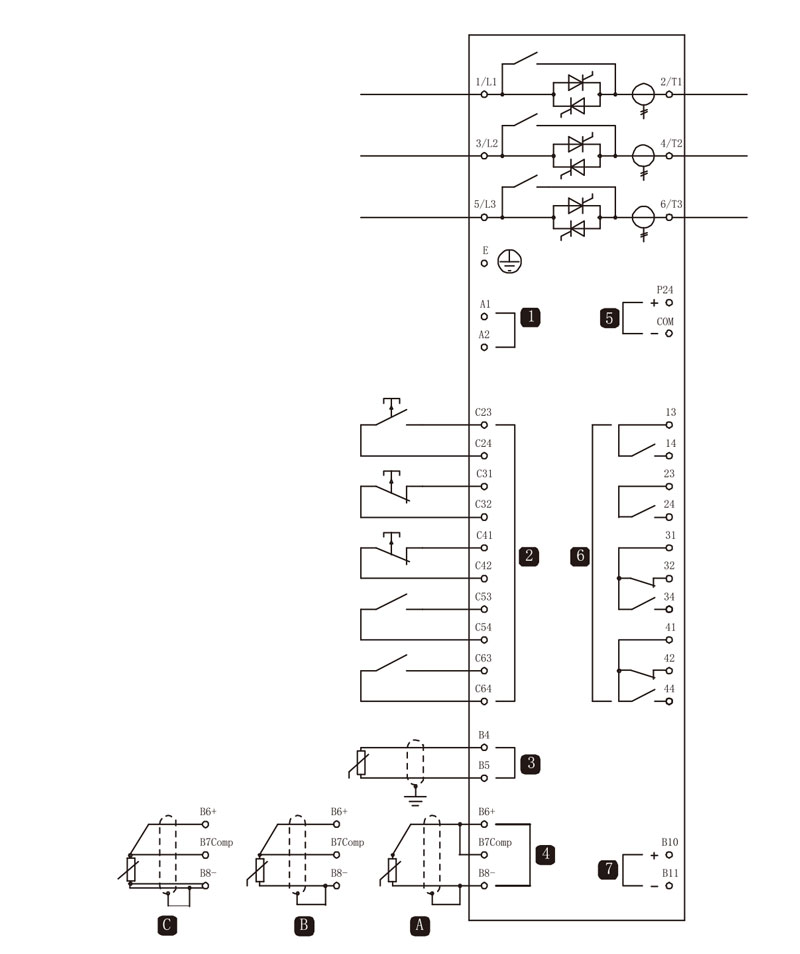

ZJR7000 control and power wiring reference.

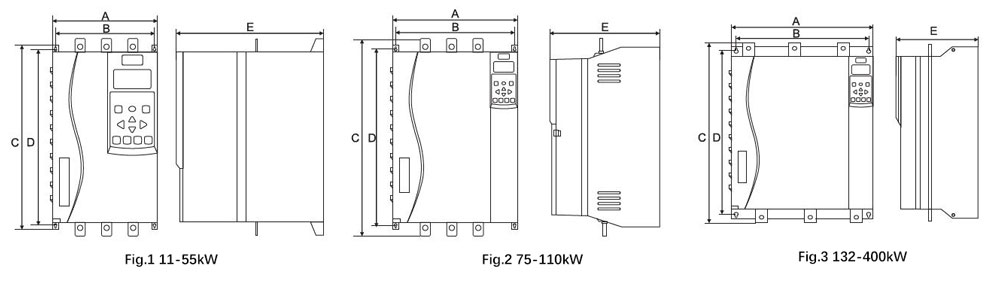

ZJR7000 outline and mounting dimensions for the smaller frames.

ZJR7000 outline and mounting dimensions for the larger frames.
