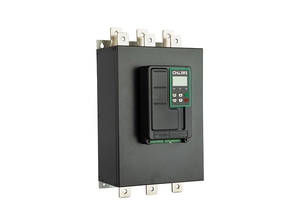

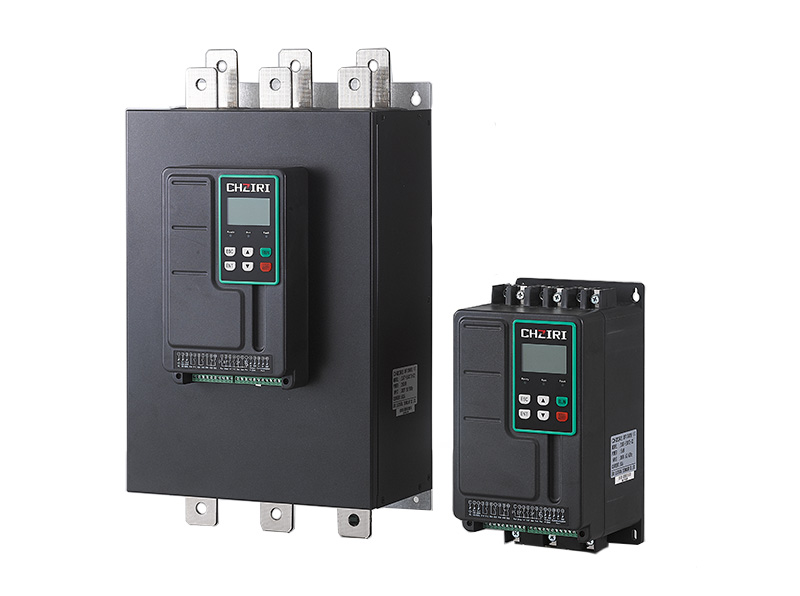

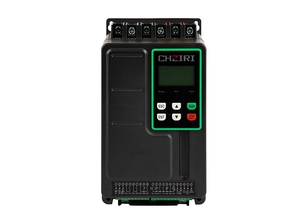

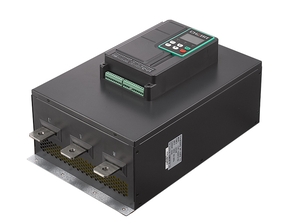

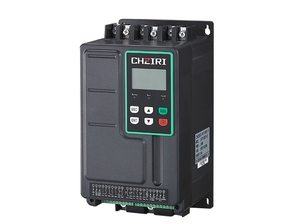

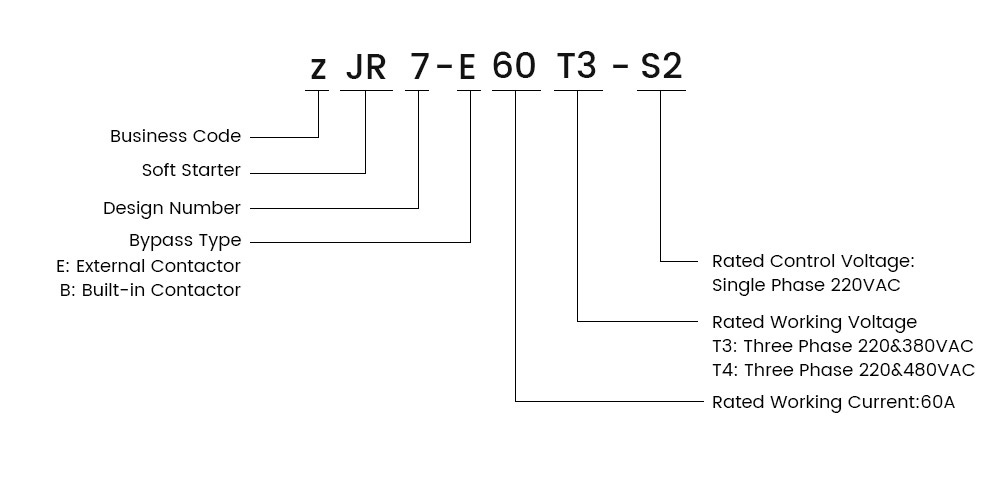

ZJR7-E External Bypass Soft Starter

Rated working voltage

Three Phase 220-480VAC±10%/50(60)Hz

Rated limit short-circuit current

20kA (400A and Below)

30kA (400A and above)

Coordination type

Type I

Use categories

AC-53b

Rated control supply voltage

180-260VAC

Rated insulation voltage

660V

Applicable motors

Squirrel-cage three-phase asynchronous motors

Number of starts

It's recommended that No more than 5 times per hour, the number of starts can be set in the parameters

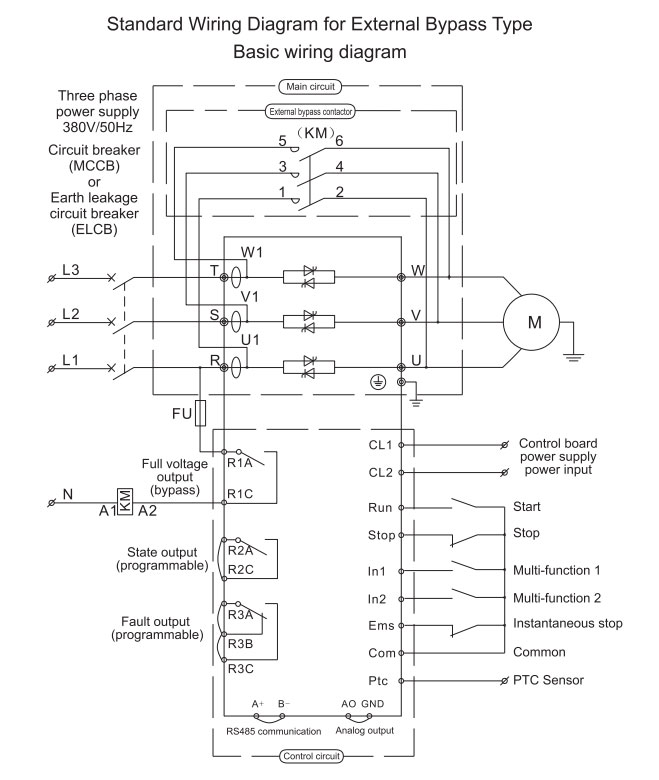

Control mode

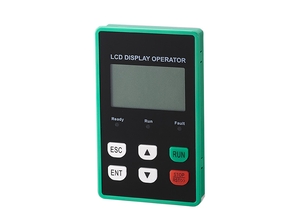

(1) Operation panel control; (2) External terminal control; (3) Communication control

Start Mode

⑴Voltage ramp starting;

⑵Torque Start;

⑶Kick start+Voltage ramp Start

⑷Kick start +torque start

Stop Mode

⑴Soft Stop; ⑵ Free Stop

Protection Function

⑴Instantaneous stop terminal open circuit fault;

⑵Soft starter overheating; ⑶Motor overheating;

⑷Input Phase loss; (5)Output phase loss;

⑹Three phase unbalance; ⑺Underload protection;

⑻Overload protection; ⑼The power supply voltage is too low;

⑽The power supply voltage is too high;

⑾Error setting parameters;

⑿The load is shorted circuit ;

⒀frequency error; ⒁External faults;

⒂ The starting time is too long;

⒃ Too many starting times and etc.

Ambient

Place to be used

Indoor; no corrosive gases, no conductive dust; well ventilated.

Altitude

The altitude does not exceed 1000m, if it exceeds 1000m and is less than 3000m, the current is reduced by 1% for each additional 100m.

Ambient temperature

Ambient temperature should be between -10℃～+40℃, +40℃～+50℃ should be derated, the current is derated by 2% for every 1℃ rise in temperature.

Ambient humidity

The relative humidity is no more than 90%, without dew condensation .

Vibration

Vibration force should be below 0.5G

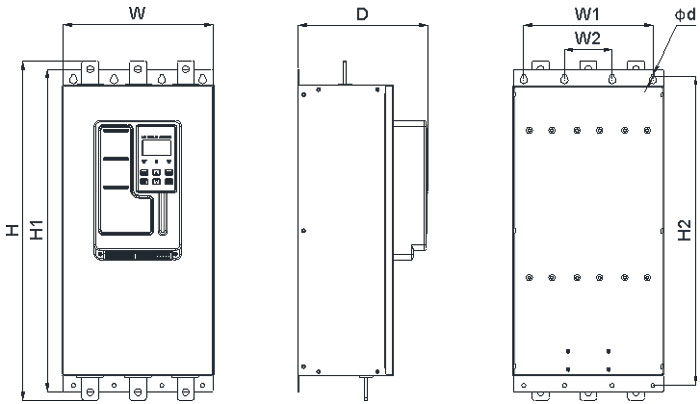

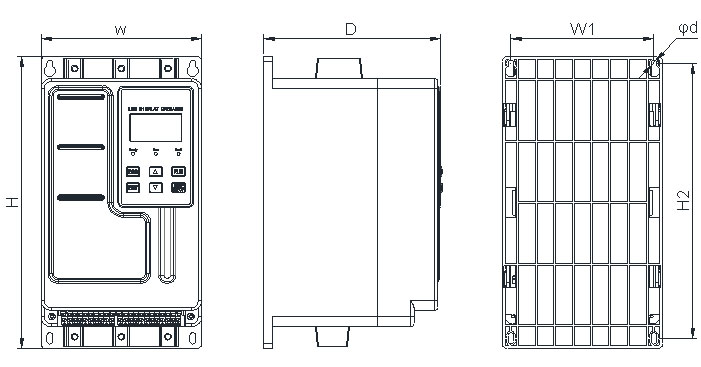

Structure

Protection Class

IP20

Cooling Mode

Natural air cooling

Centrifugal Pump

16

20

40

4

Ball Mill

20

6

60

4

Fan

26

4

30

4

Piston Compressor

16

4

40

3

Light Load Motor

16

2

30

3

Lifting Machinery

6

10

60

3.5

Mixer

16

2

50

4

Crusher

16

10

50

4

Screw

Compressor

16

2

40

3

Spiral Conveyor Belt

20

10

40

4

Belt Conveyor Belt

20

10

40

3

Heat Pump

16

20

40

3
