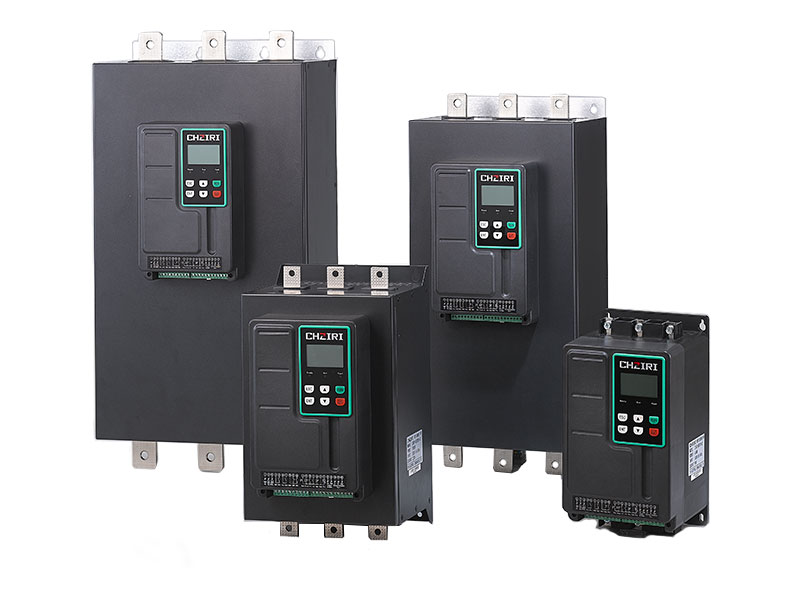

ZJR7-B Soft Starter Range

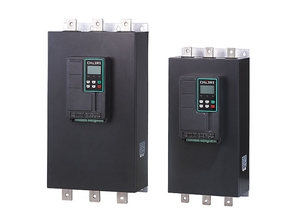

ZJR7-B High-Power Frames

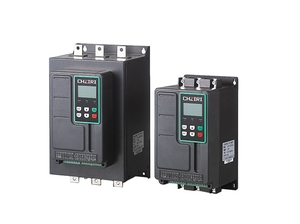

ZJR7-B Compact Frames

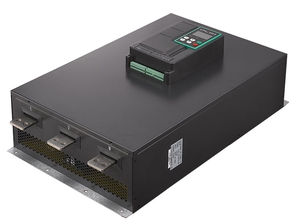

ZJR7-B Horizontal Frame

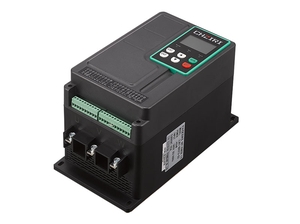

ZJR7-B Compact Device

Description

Overview

The ZJR7-B is a soft starter for three-phase 220-480V, 50/60Hz squirrel-cage motors with an integrated bypass contactor. Its enclosure and higher-power dimensions are distinct from the ZJR7-E external-bypass series.

Control and protection

  • Independent control supply, LCD interface and selectable Chinese or English display.
  • Three switchable motor-parameter sets, PTC temperature-sensor input and RS485 communication.
  • Ten fault records and screw-fixed main terminals.
  • Starting and stopping settings must be adjusted for the actual load; the application table provides reference values.

Model selection and technical data

Model ratings and dimensions

Soft starter Model Rated Power
(kW)		 Rated Current
(A)		 Outline Size(mm) Install Size(mm)
H H1 W D H2 W1 W2 Φd
ZJR7-B11T3-S2 5.5kW 11A 290 - 155 170 272 138 - 5.5
ZJR7-B15T3-S2 7.5kW 15A - -
ZJR7-B22T3-S2 11kW 22A - -
ZJR7-B30T3-S2 15kW 30A - -
ZJR7-B37T3-S2 18.5kW 37A - -
ZJR7-B44T3-S2 22kW 44A - -
ZJR7-B60T3-S2 30kW 60A - -
ZJR7-B74T3-S2 37kW 74A - -
ZJR7-B90T3-S2 45kW 90A - -
ZJR7-B110T3-S2 55kW 110A - -

Model ratings and dimensions

Soft starter Model Rated Power
(KW)		 Rated Current
(A)		 Outline Size(mm) Install Size(mm)
H H1 W D H2 W1 W2 Φd
ZJR7-B150T3-S2 75kW 150A 370 360 220 230 340 180 - 7
ZJR7-B180T3-S2 90kW 180A -
ZJR7-B220T3-S2 110kW 220A -
ZJR7-B264T3-S2 132kW 264A 585 560 270 535 230 -
ZJR7-B320T3-S2 160kW 320A -
ZJR7-B370T3-S2 185kW 370A -
ZJR7-B400T3-S2 200kW 400A -
ZJR7-B440T3-S2 220kW 440A -
ZJR7-B500T3-S2 250kW 500A 660 620 310 595 270 100
ZJR7-B560T3-S2 280kW 560A
ZJR7-B630T3-S2 315kW 630A
ZJR7-B710T3-S2 355kW 710A 690 650 350 625 300 110 9
ZJR7-B800T3-S2 400kW 800A
ZJR7-B900T3-S2 450kW 900A
ZJR7-B1000T3-S2 500kW 1000A 740 700 420 675 370 135
ZJR7-B1120T3-S2 560kW 1120A
ZJR7-B1260T3-S2 630kW 1260A

Model ratings and dimensions

Item

Item Description

Rated working voltage

Three Phase 220-480VAC±10%/50(60)Hz

Rated limit short-circuit current

20kA（400A and Below）

30kA（400A and above）

Coordination type

Type I

Use categories

AC-53b

Rated control supply voltage

180-260VAC

Rated insulation voltage

660V

Applicable motors

Squirrel-cage three-phase asynchronous motors

Number of starts

It's recommended that No more than 5 times per hour, the number of starts can be set in the parameters

Control mode

(1) Operation panel control; (2) External terminal control; (3) Communication control

Start Mode

⑴Voltage ramp starting;

⑵Torque Start;

⑶Kick start+Voltage ramp Start

⑷Kick start +torque start

Stop Mode

⑴Soft Stop ;⑵ Free Stop

Protection Function

⑴Instantaneous stop terminal open circuit fault;

⑵Soft starter overheating; ⑶Motor overheating;

⑷Input Phase loss; (5)Output phase loss;

⑹Three phase unbalance; ⑺Underload protection;

⑻Overload protection; ⑼The power supply voltage is too low;

⑽The power supply voltage is too high;

⑾Error setting parameters;

⑿The load is shorted circuit ;

⒀frequency error; ⒁External faults;

⒂ The starting time is too long;

⒃ Too many starting times and etc.

Ambient

Place to be used

Indoor; no corrosive gases, no conductive dust; well ventilated.

Altitude

The altitude does not exceed 1000m, if it exceeds 1000m and is less than 3000m, the current is reduced by 1% for each additional 100m.

Ambient temperature

Ambient temperature should be between -10℃～+40℃, +40℃～+50℃ should be derated, the current is derated by 2% for every 1℃ rise in temperature.

Ambient humidity

The relative humidity is no more than 90%, without dew condensation .

Vibration

Vibration force should be below 0.5G

Structure

Protection Class

IP20

Cooling Mode

Natural air cooling

Technical and application data

Application

Starting boost time (s)

Stop depressurization time (s)

Starting voltage (%)

Voltage starting

(current limit value)

Centrifugal Pump

16

20

40

4

Ball Mill

20

6

60

Fan

26

4

30

Piston Compressor

16

40

3

Light Load Motor

2

30

Lifting Machinery

6

10

60

3.5

Mixer

16

2

50

4

Crusher

10

Screw Compressor

2

40

3

Spiral Conveyor Belt

20

10

4

Belt Conveyor Belt

3

Heat Pump

16

20

Dimensions, wiring and model references

ZJR7-B built-in-contactor construction reference.
ZJR7-B built-in-contactor construction reference.
ZJR7-B outline and installation dimensions for the first enclosure group.
ZJR7-B outline and installation dimensions for the first enclosure group.
ZJR7-B outline and installation dimensions for the higher-power enclosure group.
ZJR7-B outline and installation dimensions for the higher-power enclosure group.
ZJR7-B power and control wiring with integrated bypass contactor.
ZJR7-B power and control wiring with integrated bypass contactor.

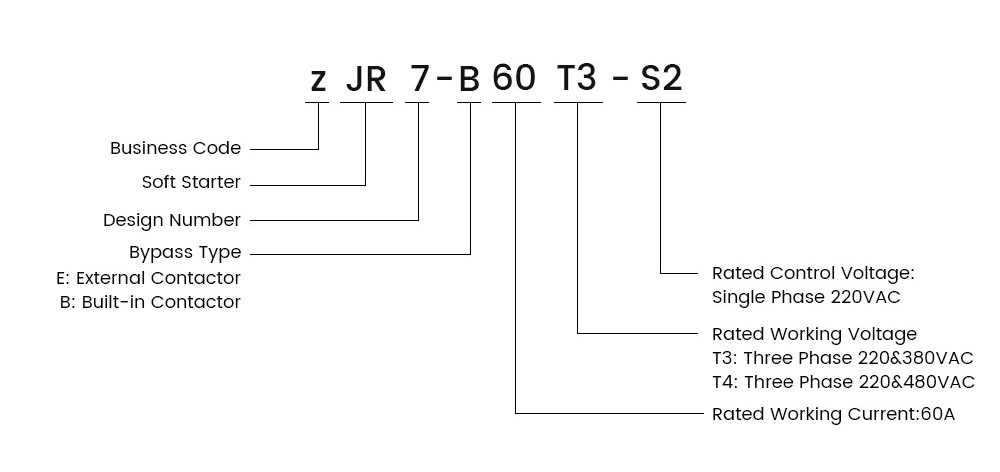

ZJR7-B model-code structure and option identifiers.
ZJR7-B model-code structure and option identifiers.
