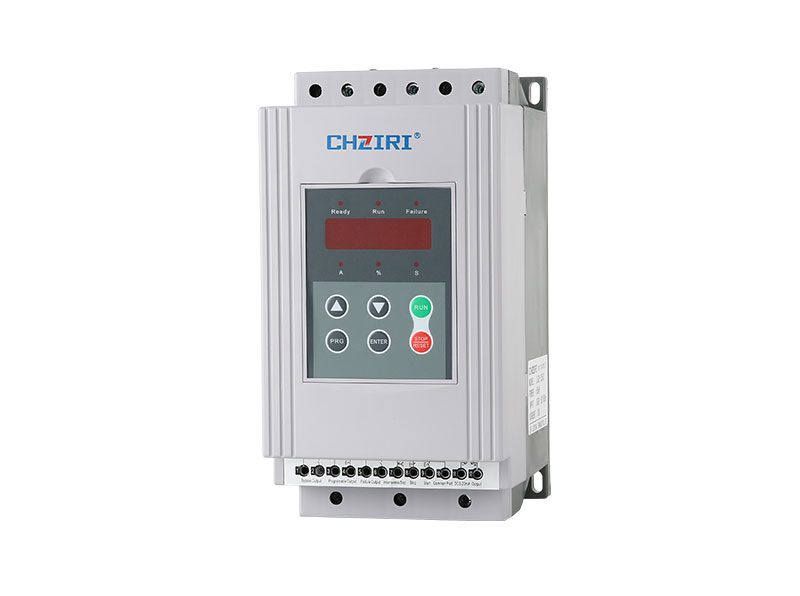

ZJR2-B Built-in Contactor Soft Starter

ZJR2-B Built-in Contactor Soft Starter

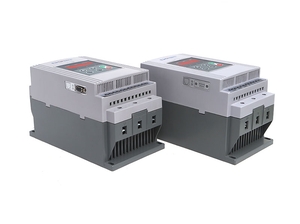

ZJR2-B Soft Starter Pair

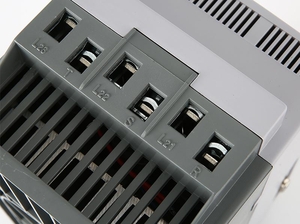

ZJR2-B Terminal Detail

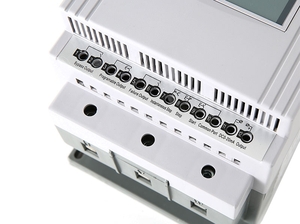

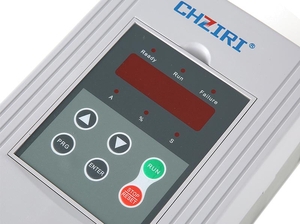

ZJR2-B Control Panel Detail

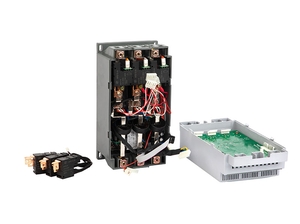

ZJR2-B Internal Components

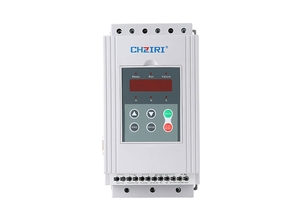

ZJR2-B Front View
ZJR2-B Product Range

Description

Overview

The ZJR2-B integrates three bypass relays for three-phase 320-460V, 50/60Hz squirrel-cage motors. The 5.5-55kW range uses built-in bypass relays; select these models separately from external-bypass ZJR2 versions.

Starting and protection

  • Current-limit, voltage-ramp, kick-assisted, current-ramp and dual closed-loop starting modes.
  • Free stop or soft stop with a configurable 0-60 second stopping time.
  • Overcurrent, overload, phase-loss and instantaneous-stop protection.
  • RS485 is optional rather than standard and must be specified when required.

Applications

Applications include centrifuges, blowers, compressors, conveyors, mixers, rolling mills, crushers and other motor-driven machinery.

Model selection and technical data

Technical and application data

Soft starter Model

Rated Power(kW)

Rated Current (A)

Outline Size

Install Size

H

W

D

H1

W1

d

ZJR2-B3055/ B4055

5.5 kW

11 A

270

145

159

245

130

7

ZJR2-B3075/ B4075

7.5 kW

15 A

ZJR2-B3110/ B4110

11 kW

23 A

ZJR2-B3150/ B4150

15 kW

30 A

ZJR2-B3185/ B4185

18.5 kW

37 A

ZJR2-B3220/ B4220

22kW

43 A

ZJR2-B3300/ B4300

30 kW

60 A

ZJR2-B3370/ B4370

37kW

75 A

ZJR2-B3450/ B4450

45 kW

90 A

ZJR2-B3550/ B4550

55 kW

110 A

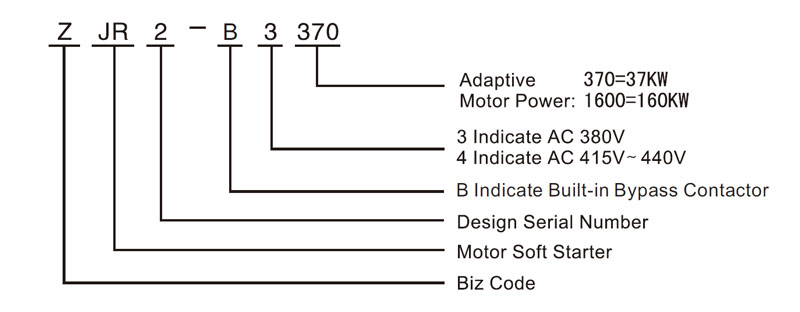

Dimensions, wiring and model references

ZJR2-B control and power wiring reference.
ZJR2-B control and power wiring reference.

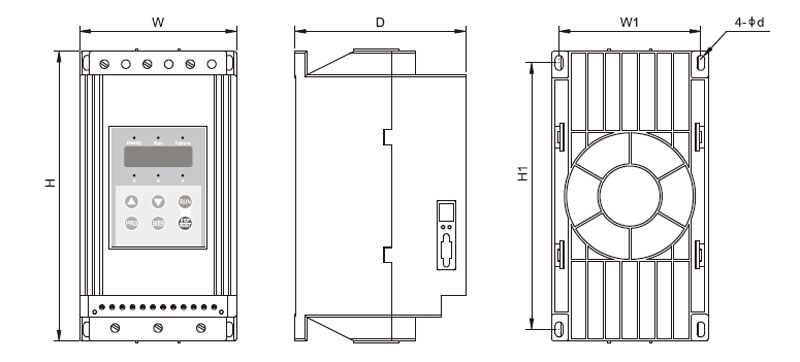

ZJR2-B outline and mounting dimensions for the built-in-contactor enclosure.
ZJR2-B outline and mounting dimensions for the built-in-contactor enclosure.

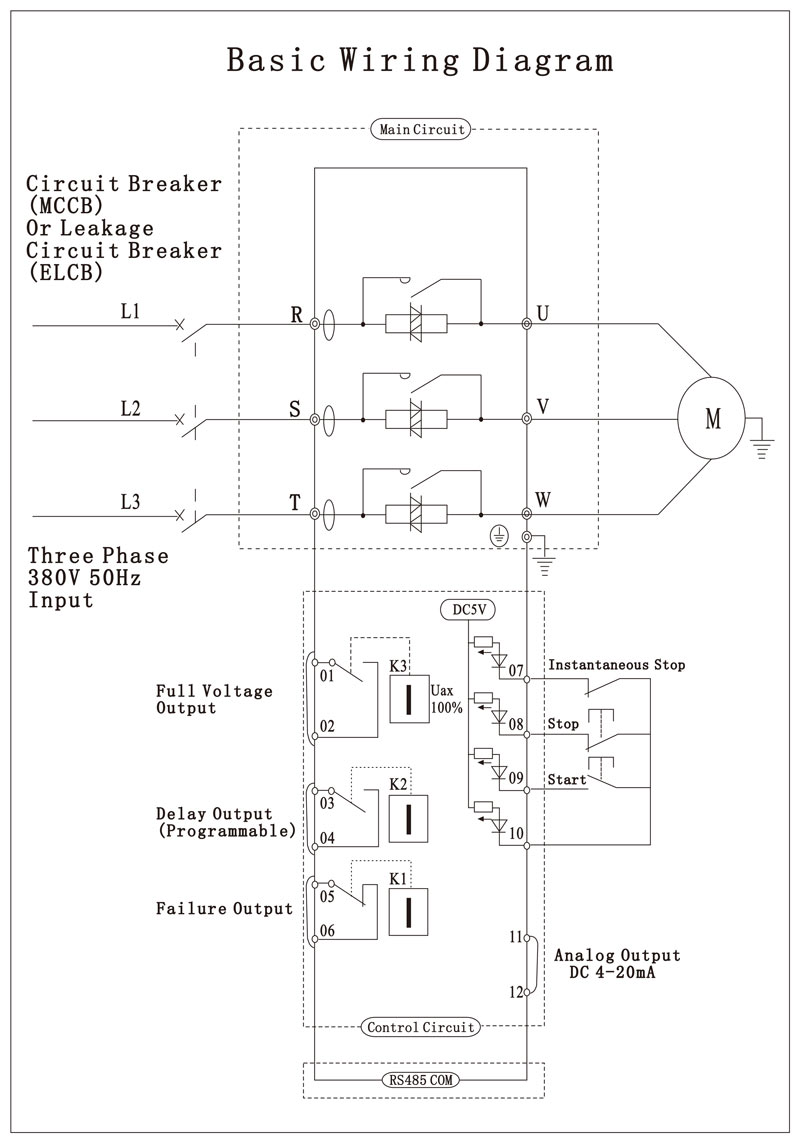

ZJR2-B internal bypass and motor connection schematic.
ZJR2-B internal bypass and motor connection schematic.
