YORK Oil Filter

YORK Extra Large Size Oil filter Type A.L. Series
YORK Large Size Oil filter Type A.L. Series
YORK Small Size Oil filter Type A.L. Series
YORK Small Size Oil filter Type P.C. Series

Description

YORK A.L. and P.C. oil filter families cover small, large, and extra-large burner oil-line filter formats. The specifications keep article numbers, caliber data, cover width, height, throughflow, weight, and product detail drawings by family.

YORK Extra Large Size Oil filter Type A.L. Series

Article No. Caliber A+B Width of upper cover C (mm) Height D (mm) Throughflow (l/h) Weight (g)
221 20 103 3/4 " 120 181 240 865

YORK Large Size Oil filter Type A.L. Series

Article No. Caliber A+B Width of upper cover C (mm) Height D (mm) Throughflow (l/h) Weight (g)
221 20 007 3/8 " 81 116 120 415
221 20 008 1/2 " 400

YORK Small Size Oil filter Type A.L. Series

Article No. Caliber A+B Width of upper cover C (mm) Height D (mm) Throughflow (l/h) Weight (g)
221 20 005 3/8 " 61 75 25 171

YORK Small Size Oil filter Type P.C. Series

Article No. Caliber A+B Width of upper cover C (mm) Height D (mm) Throughflow (l/h) Weight (g)
221 20 001 3/8 " 61 75 25 140

Product Detail Images

YORK Extra Large Size Oil filter Type A.L. Series

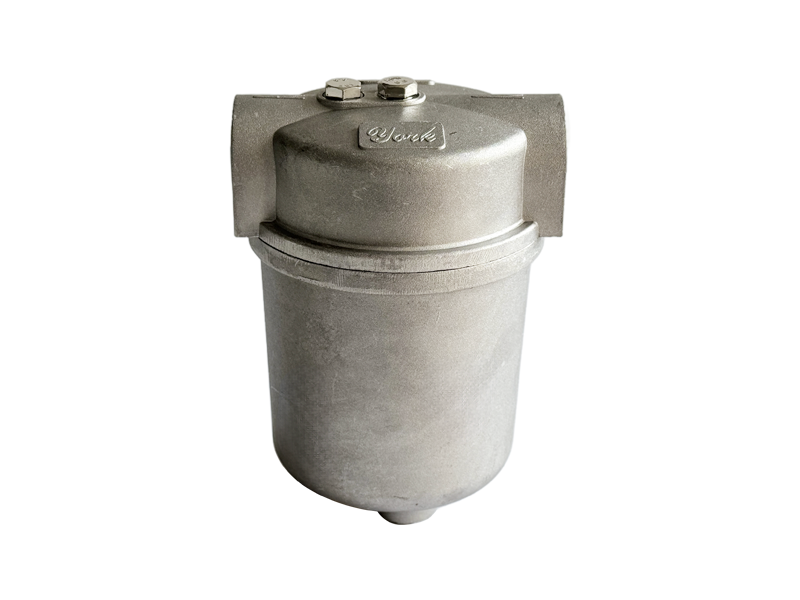

YORK Extra Large Size Oil filter Type A.L. Series Detail View 2
Extra-large oil filter housing and upper cover viewed from the front.

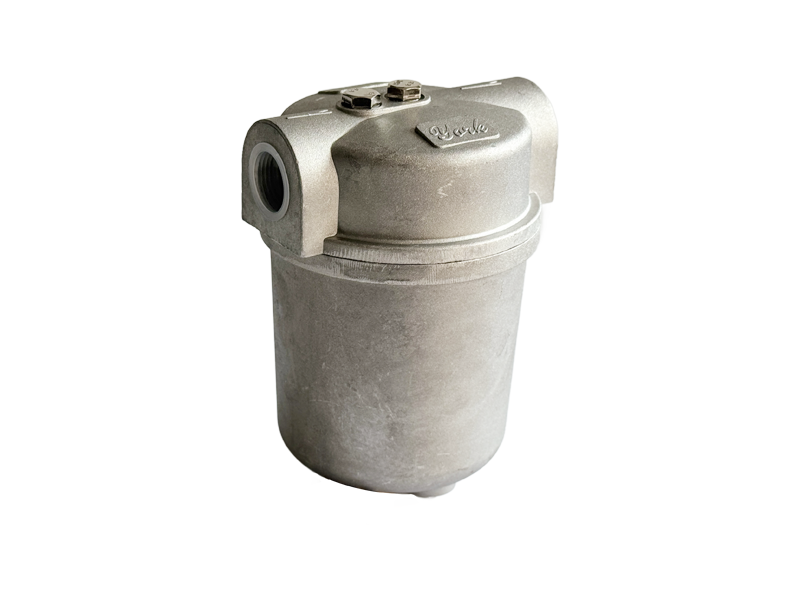

YORK Extra Large Size Oil filter Type A.L. Series Detail View 3
Extra-large oil filter threaded port viewed at an angle.
YORK Extra Large Size Oil filter Type A.L. Series Detail View 4
Extra-large oil filter housing viewed from the opposite side.
YORK Extra Large Size Oil filter Type A.L. Series Detail View 5
Extra-large oil filter rear housing face.
YORK Extra Large Size Oil filter Type A.L. Series Detail View 6
Extra-large oil filter cover and connection layout viewed at an angle.
YORK Extra Large Size Oil filter Type A.L. Series Description Image 1
Oil filter sectional drawing showing the basket and dimensions.

YORK Large Size Oil filter Type A.L. Series

YORK Large Size Oil filter Type A.L. Series Detail View 2
Large oil filter housing and upper cover viewed from the front.
YORK Large Size Oil filter Type A.L. Series Detail View 3
Large oil filter threaded port viewed at an angle.
YORK Large Size Oil filter Type A.L. Series Detail View 4
Large oil filter housing viewed from the opposite side.
YORK Large Size Oil filter Type A.L. Series Detail View 5
Large oil filter rear housing face.
YORK Large Size Oil filter Type A.L. Series Detail View 6
Large oil filter cover and connection layout viewed at an angle.
YORK Large Size Oil filter Type A.L. Series Description Image 1
Oil filter sectional drawing with a pleated element and dimensions.

YORK Small Size Oil filter Type A.L. Series

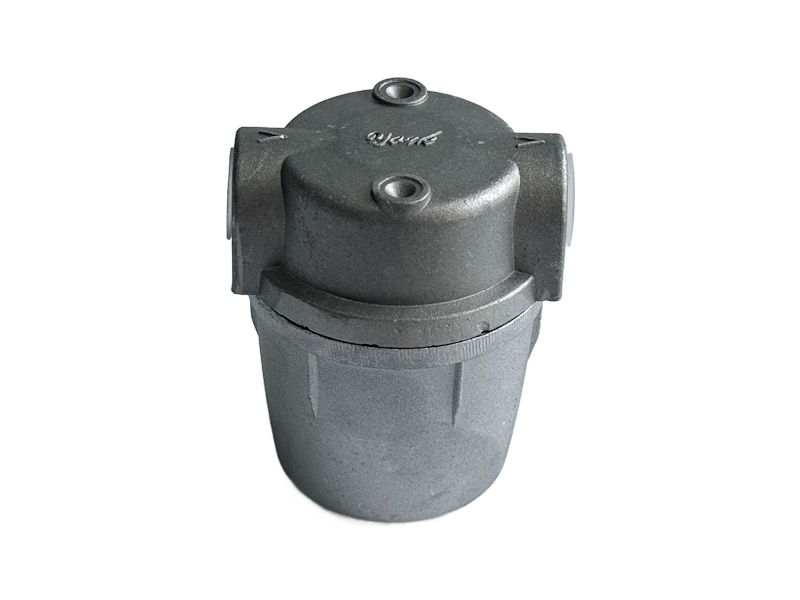

YORK Small Size Oil filter Type A.L. Series Detail View 2
Small oil filter housing and upper cover viewed from the front.
YORK Small Size Oil filter Type A.L. Series Detail View 3
Small oil filter threaded port viewed at an angle.
YORK Small Size Oil filter Type A.L. Series Detail View 4
Small oil filter housing viewed from the opposite side.
YORK Small Size Oil filter Type A.L. Series Detail View 5
Small oil filter rear housing face.
YORK Small Size Oil filter Type A.L. Series Detail View 6
Small oil filter cover and connection layout viewed at an angle.
YORK Small Size Oil filter Type A.L. Series Description Image 1
Oil filter sectional drawing showing a pleated element and dimensions.

YORK Small Size Oil filter Type P.C. Series

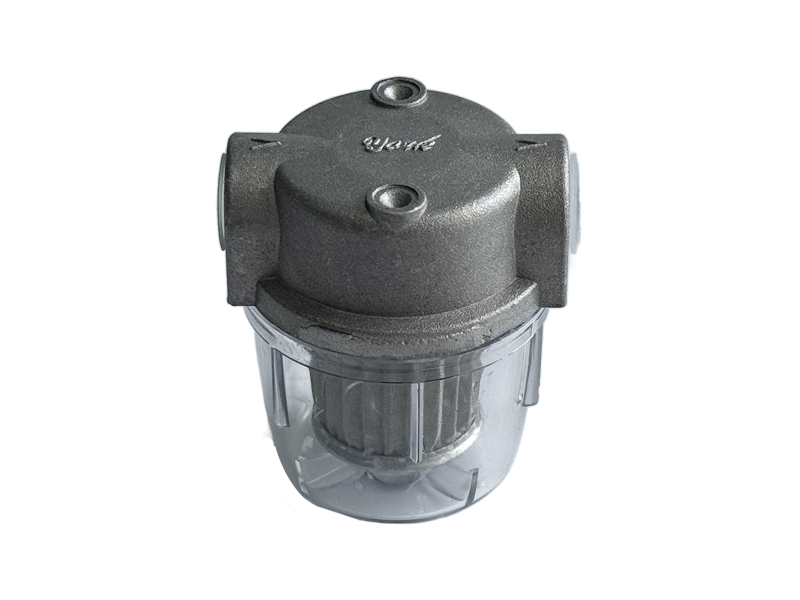

YORK Small Size Oil filter Type P.C. Series Detail View 2
Clear-bowl oil filter viewed from the front.

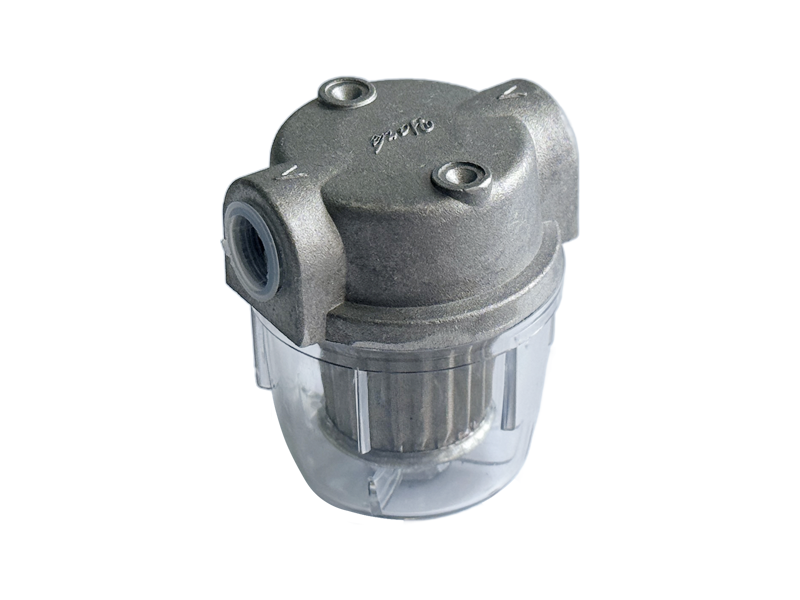

YORK Small Size Oil filter Type P.C. Series Detail View 3
Clear-bowl oil filter connection port viewed at an angle.

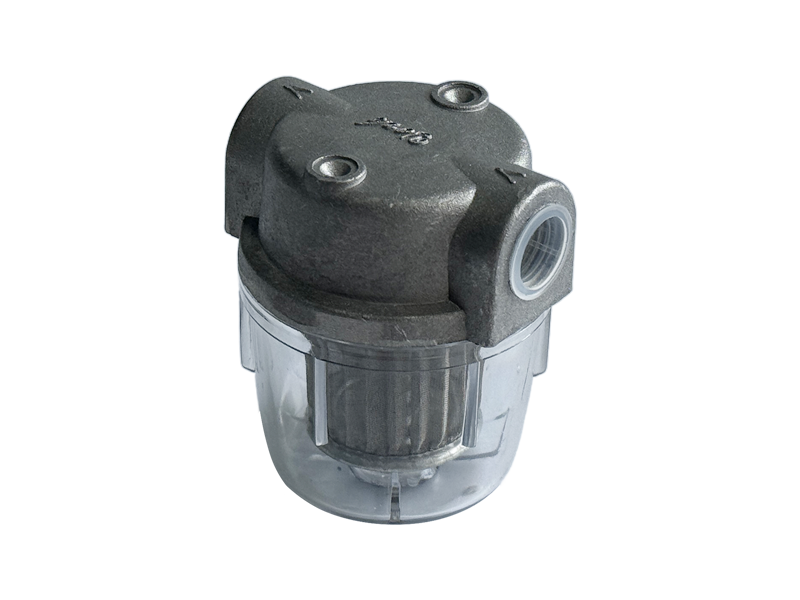

YORK Small Size Oil filter Type P.C. Series Detail View 4
Clear-bowl oil filter housing viewed from the opposite side.

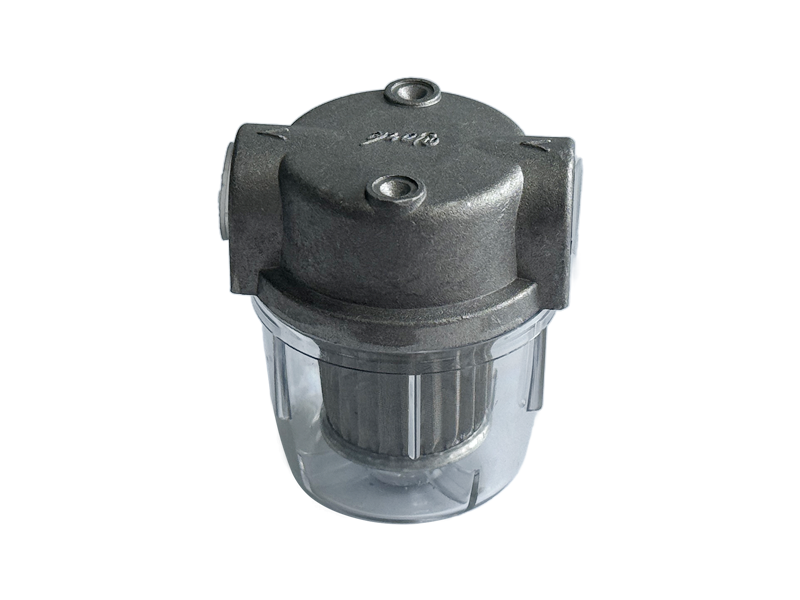

YORK Small Size Oil filter Type P.C. Series Detail View 5
Clear-bowl oil filter rear view.

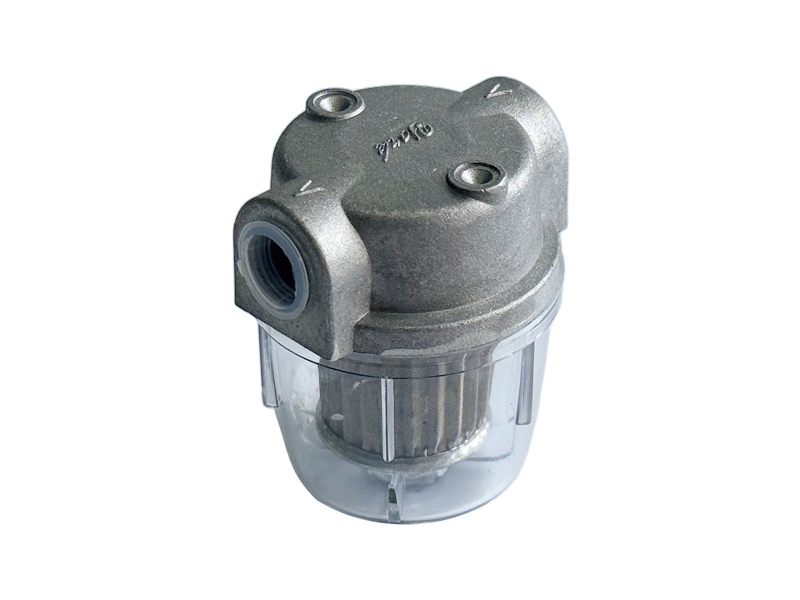

YORK Small Size Oil filter Type P.C. Series Detail View 6
Clear-bowl oil filter cover and connection layout viewed at an angle.

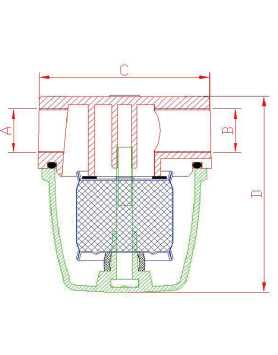

YORK Small Size Oil filter Type P.C. Series Description Image 1
Clear-bowl oil filter sectional drawing showing the basket and dimensions.
