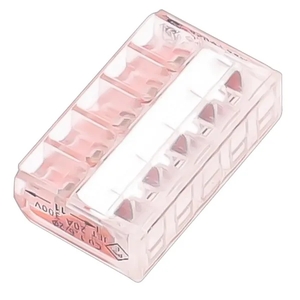

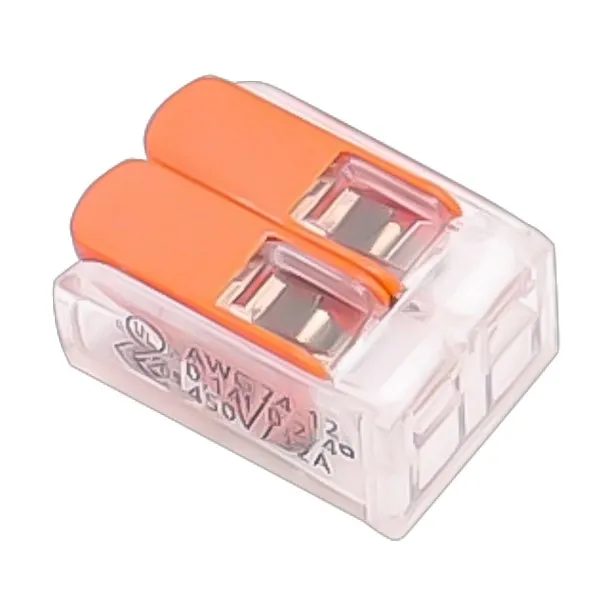

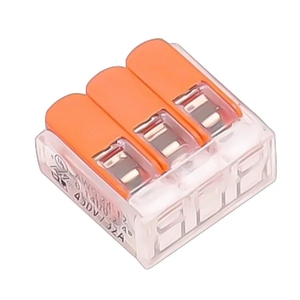

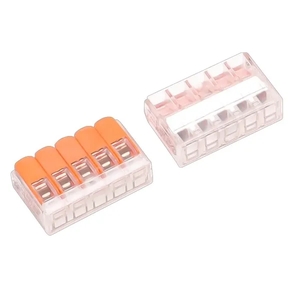

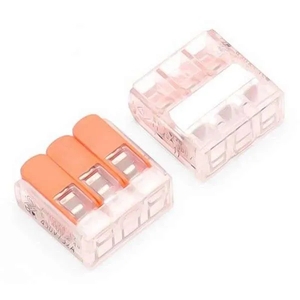

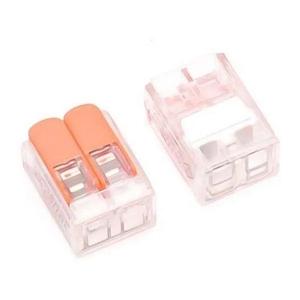

The YL-PTC-21 connecting terminal series is used for compact wiring and conductor distribution in control panels, lighting circuits and electrical installation boxes. The product images cover multiple port configurations for different wiring layouts.
| Series | Representative variants shown |
|---|---|
| YL-PTC-21 | YL-PTC-212, YL-PTC-213, YL-PTC-215 |
| Wire diameter | 0.08-4.0 mm2, BV or RV conductor |
|---|---|
| Rated voltage | 400 V |
| Rated current | 32 A |
| Voltage resistance | 4 kV |
| Strip length | 10 mm |
