YL-41 / YL-42 Compact Splicing Connectors


Description

The YL-41 and YL-42 compact splicing connectors are quick wiring connectors for conductor splicing and distribution in electrical panels, lighting wiring and installation circuits. The two families share the same conductor range and current rating, while the listed voltage differs by series.

Model Coverage

SeriesRepresentative models shownRated voltage

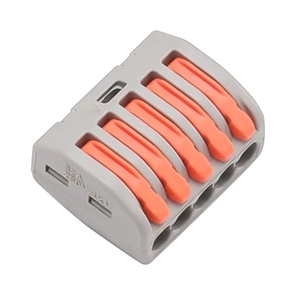

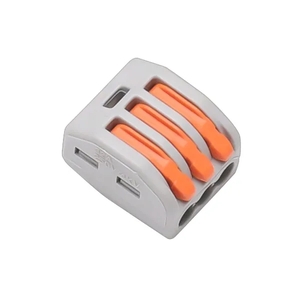

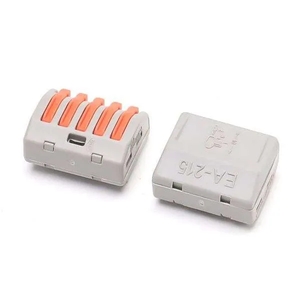

YL-41YL-412A, YL-413A, YL-415A400 V

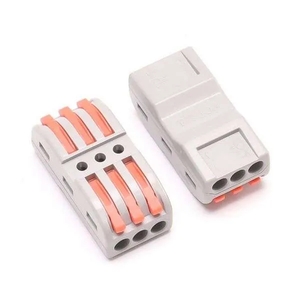

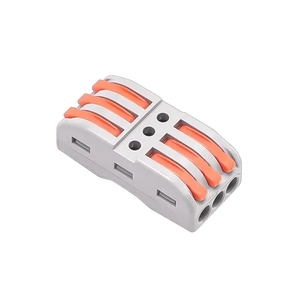

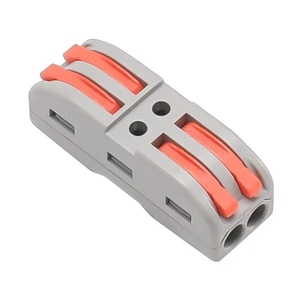

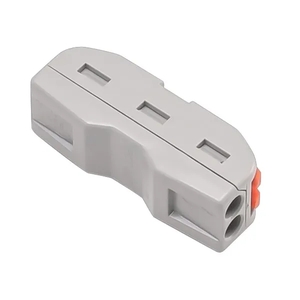

YL-42YL-422A, YL-423A230 V / 400 V

Technical Parameters

Wire diameter0.08-4.0 mm2, BV or RV conductor
Rated current32 A
Voltage resistance4 kV
Strip length10 mm

Application

These compact splicing connectors are suitable for fast wire termination and branch connection where repeatable installation and compact wiring space are required.
