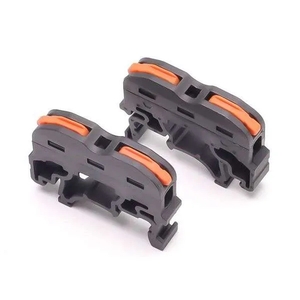

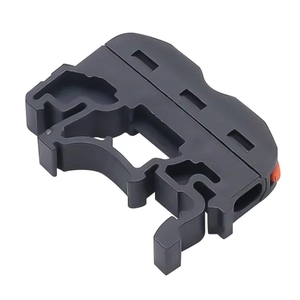

The YK-41 UK type terminal is a DIN rail wiring terminal for fast electrical connection in control panels and distribution equipment. It uses insulated plastic parts, a metal clamping structure and tinned copper contact material for reliable conductor connection.
Materials
| Insulated parts | PC / PA66 flame-retardant insulation material |
|---|
| Clamping piece | Nickel-chromium alloy steel |
|---|
| Contact material | Tinned copper |
|---|
| Listed certifications | RoHS, CE |
|---|
Technical Parameters
| Wire diameter | 0.08-4.0 mm2, BV or RV conductor |
|---|
| Rated voltage | 400 V |
|---|
| Rated current | 32 A |
|---|
| Voltage resistance | 4 kV |
|---|
| Strip length | 10 mm |
|---|
