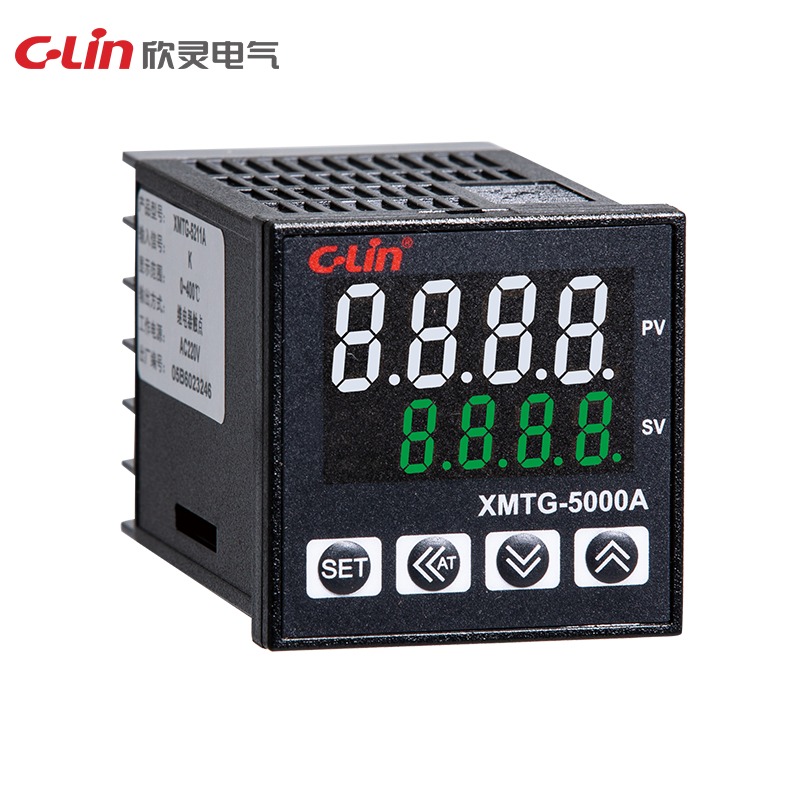

XMTG Series temperature and humidity controllers provide compact panel control for heating equipment. XMTG-5000A uses a 48×48mm front size, wide AC supply input and selectable relay or SSR drive control for small control panels.
| Model | XMTG-5000A |
|---|---|
| Measurement Signal | K, E, J thermocouple; Pt100 or Cu50 RTD |
| Power Supply | AC110-240V |
| Alarm Mode | 1-channel or 2-channel relay contact on/off control |
| Control Mode | Two-position relay on/off control; PID control with relay output; PID control with SSR voltage drive output |
| Dimensions | 48 × 48 × 78mm |
| Panel Cutout | 45 × 45mm |
| Installation Method | Panel mounting |
| Typical Applications | Drying ovens, ovens, plastic machinery and related heating equipment |
