XLP610 Series frequency converters are compact motor drives for equipment that needs adjustable speed control in a panel-friendly format. The series covers single-phase 220V and three-phase 380V input selections from small 0.4kW drives up to 15kW three-phase models, with V/F or vector control and standard inverter protection.
Common Parameters
| Parameter | Specification |
|---|
| Control Mode | V/F control and vector control |
| Overload Capacity | 150% of rated current for 60s; 190% for 1.5s |
| Protection Functions | Overvoltage, overcurrent, overload, overheating and short-circuit protection |
| Protection Level | IP20 |
| Cooling Method | Forced air cooling |
| Operating Environment | Indoor use; altitude 1000m or below without derating, derating required above 1000m; avoid corrosive gases and liquids |

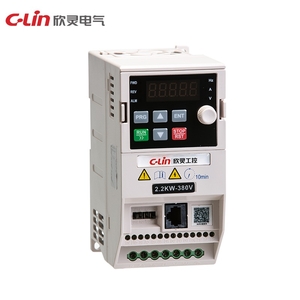

XLP610-2.2 Single-Phase
| Parameter | Specification |
|---|
| Input Power | 1PH AC220V, 50/60Hz |
| Output Power | 3PH AC0-220V |
| Output Frequency | 1-500Hz |
| Rated Power | 0.4kW, 0.75kW, 1.5kW, 2.2kW |
| Rated Current | 2.3A, 3.8A, 7A, 9A |
| Dimensions | 72 x 147 x 123.5 mm |
| Mounting | 63 x 136.5 mm mounting; 35mm rail mounting supported |

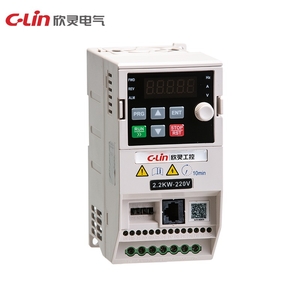

XLP610-2.2 Three-Phase
| Parameter | Specification |
|---|
| Input Power | 3PH AC380V, 50/60Hz |
| Output Power | 3PH AC0-380V |
| Output Frequency | 1-500Hz |
| Rated Power | 0.75kW, 1.5kW, 2.2kW |
| Rated Current | 2.1A, 3.8A, 5.1A |
| Dimensions | 72 x 147 x 123.5 mm |
| Mounting | 63 x 136.5 mm mounting; 35mm rail mounting supported |

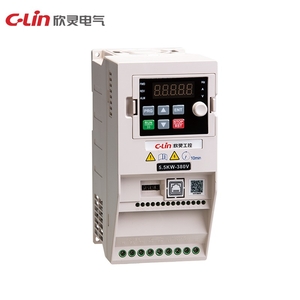

XLP610-5.5 Three-Phase
| Parameter | Specification |
|---|
| Input Power | 3PH AC380V, 50/60Hz |
| Output Power | 3PH AC0-380V |
| Output Frequency | 1-500Hz |
| Rated Power | 4.0kW, 5.5kW |
| Rated Current | 8.5A, 13A |
| Dimensions | 87 x 185 x 144.5 mm |
| Mounting | 78 x 172.5 mm mounting; 35mm rail mounting supported |

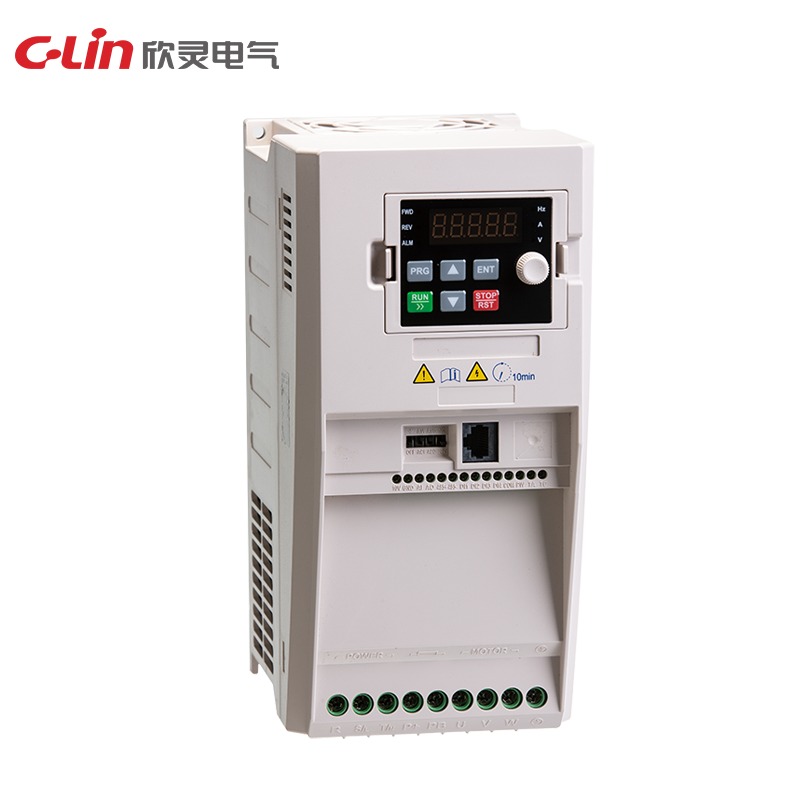

XLP610-15 Three-Phase
| Parameter | Specification |
|---|
| Input Power | 3PH AC380V, 50/60Hz |
| Output Power | 3PH AC0-380V |
| Output Frequency | 1-500Hz |
| Rated Power | 7.5kW, 11kW, 15kW |
| Rated Current | 16A, 24A, 32A |
| Dimensions | 118 x 243 x 165.2 mm |
| Mounting | 106 x 229 mm mounting; 35mm rail mounting supported |
