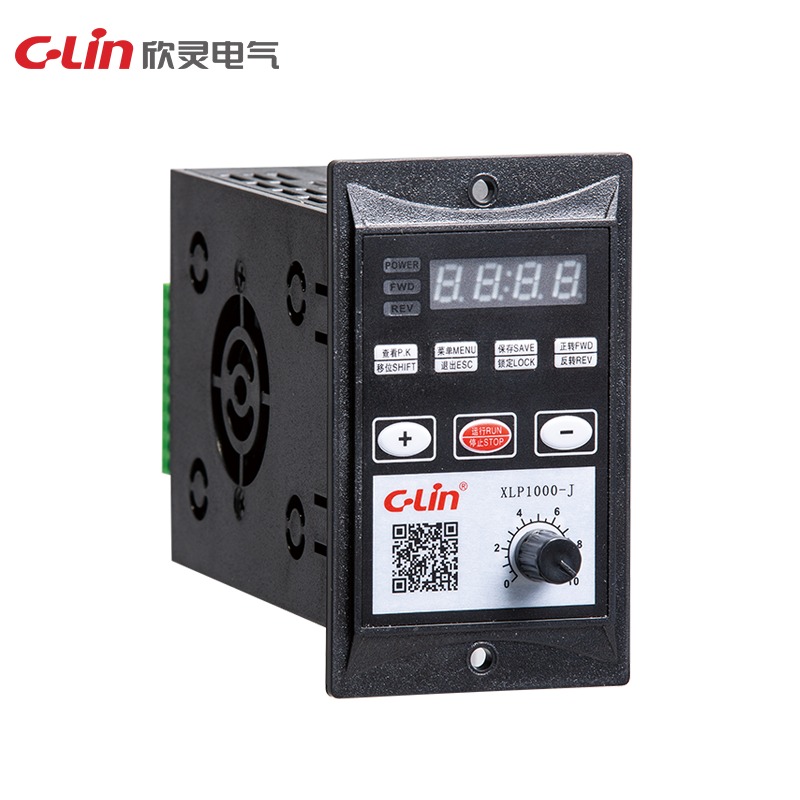

XLP1000-J is a compact inverter for small motor speed-control applications where a three-phase motor is driven from a single-phase AC220V supply. It combines V/F control, basic drive protection and a narrow embedded mounting format for equipment panels and small automation machines.
| Parameter | Specification |
|---|---|
| Input Power | 1PH AC220V, 50/60Hz |
| Output Power | 3PH AC0-220V |
| Output Frequency | 1-99.0Hz |
| Rated Power | 0.55kW |
| Rated Current | 3.2A |
| Control Mode | V/F control |
| Overload Capacity | 180% for 60s |
| Protection Functions | Overcurrent, overheating and short-circuit protection |
| Protection Level | IP20 |
| Cooling Method | Forced air cooling |
| Dimensions | 60 x 102 x 133 mm |
| Mounting | 53 x 81 mm embedded mounting |
| Operating Environment | Indoor use; altitude 1000m or below without derating, derating required above 1000m; avoid corrosive gases and liquids |
