WS68-1200 Low NOx Gas Burner

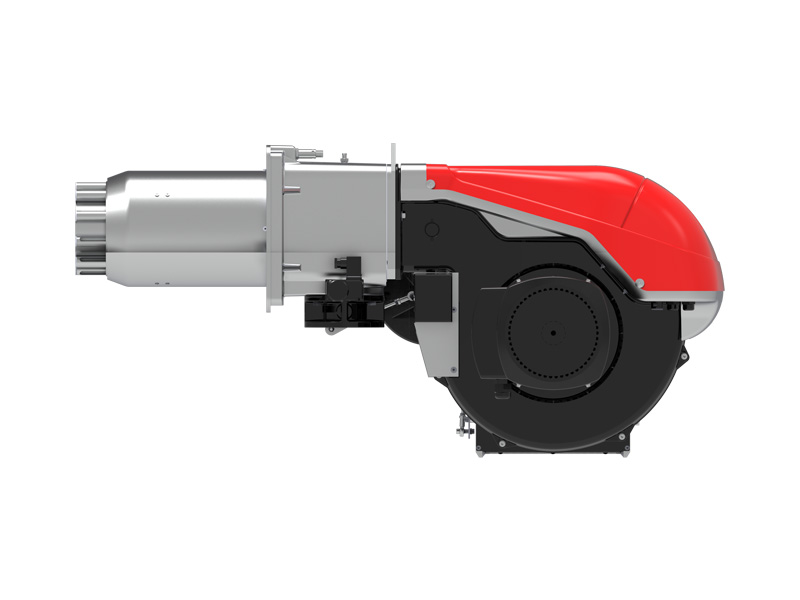

WS 68-200 BLU Low NOx Gas Burner View 1

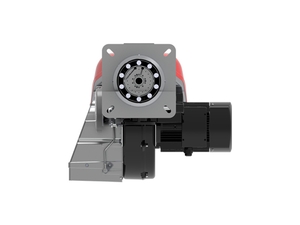

WS 68-200 BLU Low NOx Gas Burner View 2

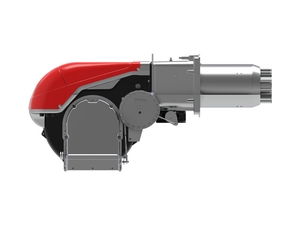

WS 68-200 BLU Low NOx Gas Burner View 3

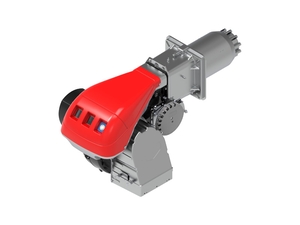

WS 68-200 BLU Low NOx Gas Burner View 4

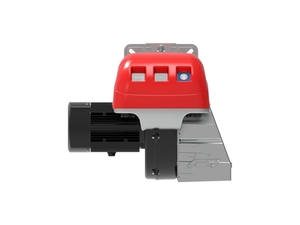

WS 68-200 BLU Low NOx Gas Burner View 5

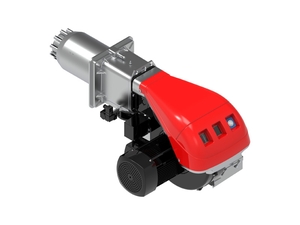

WS 68-200 BLU Low NOx Gas Burner View 6

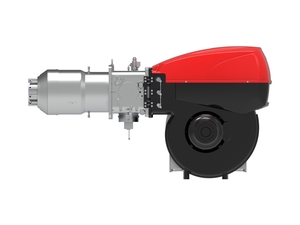

WS 1000-1200 BLU Low NOx Gas Burner View 1

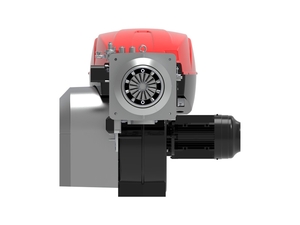

WS 1000-1200 BLU Low NOx Gas Burner View 2

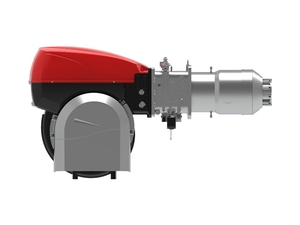

WS 1000-1200 BLU Low NOx Gas Burner View 3

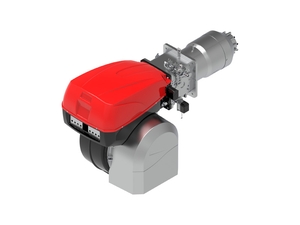

WS 1000-1200 BLU Low NOx Gas Burner View 4

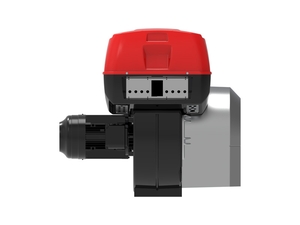

WS 1000-1200 BLU Low NOx Gas Burner View 5

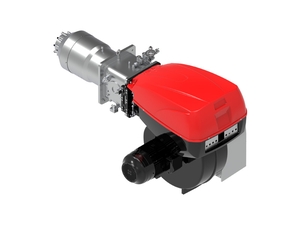

WS 1000-1200 BLU Low NOx Gas Burner View 6

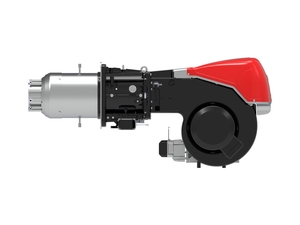

WS 810 BLU Low NOx Gas Burner View 1

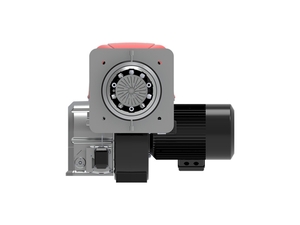

WS 810 BLU Low NOx Gas Burner View 2

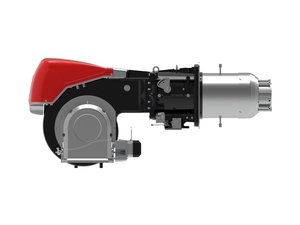

WS 810 BLU Low NOx Gas Burner View 3

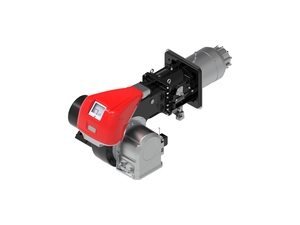

WS 810 BLU Low NOx Gas Burner View 4

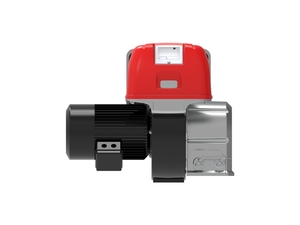

WS 810 BLU Low NOx Gas Burner View 5

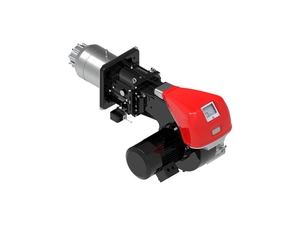

WS 810 BLU Low NOx Gas Burner View 6

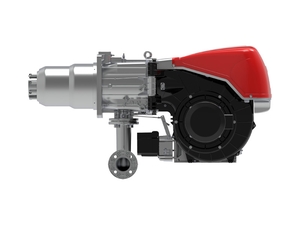

WS 310-610 BLU Low NOx Gas Burner View 1

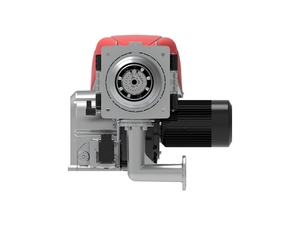

WS 310-610 BLU Low NOx Gas Burner View 2

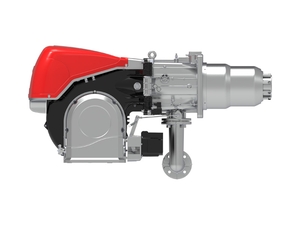

WS 310-610 BLU Low NOx Gas Burner View 3

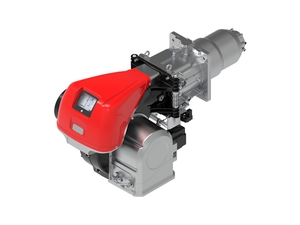

WS 310-610 BLU Low NOx Gas Burner View 4

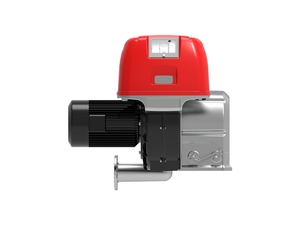

WS 310-610 BLU Low NOx Gas Burner View 5

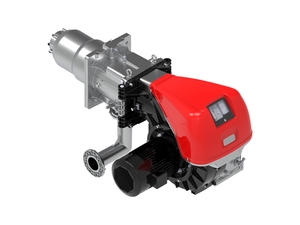

WS 310-610 BLU Low NOx Gas Burner View 6

Description

WS 68-1200 BLU Low NOx Gas Burner Series brings together two-stage, mechanical modulation, and electronic modulation gas burner variants for boiler and process heat applications, covering compact WS 68-200 models through WS 1000-1200 high-output models.

Operating Modes

Two-stage; Mechanical modulation; Electronic modulation

Variant Coverage

  • WS 68-200 BLU variants cover compact low NOx gas burner applications.
  • WS 310-610, WS 810, and WS 1000-1200 BLU variants extend the range for higher output boiler systems.
  • Mechanical modulation and electronic modulation versions share the same visual platform within each model family while using different control configurations.
  • 60 Hz power supply can be customized according to the source specification note.

Specifications

Product family Operating mode Power(kW) Model Article No. Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
WS 68-200 BLU Series Two-stage 150/350~860 WS 68 BLU 101 008 001 230V 50Hz 1.5 1400x700x650 70
WS 68-200 BLU Series Two-stage 300/600~1300 WS 120 BLU 101 008 002 230V 50Hz 2.2 1400x700x650 73
WS 68-200 BLU Series Two-stage 300/930~1860 WS 160 BLU 101 008 003 230V 50Hz 4.5 1400x1000x650 76
WS 68-200 BLU Series Two-stage 550/1380~2400 WS 200 BLU 101 008 004 230V 50Hz 5.5 1400x1000x650 85
WS 1000-1200/M BLU Series Mechanical modulation 1100/4000~10100 WS 1000/M BLU 101 005 006 230V 50Hz 22 1820x1120x880 250
WS 1000-1200/M BLU Series Mechanical modulation 1500/5500~11000 WS 1200/M BLU 101 005 007 230V 50Hz 25 1820x1120x880 250
WS 810/M BLU Series Mechanical modulation 1200/3500~8000 WS 810/M BLU 101 005 005 230V 50Hz 22 1820x1120x880 250
WS 310-610/M BLU Series Mechanical modulation 400/1200~3630 WS 310/M BLU 101 004 001 230V 50Hz 7.5 1820x1120x880 250
WS 310-610/M BLU Series Mechanical modulation 500/1500~4450 WS 410/M BLU 101 004 002 230V 50Hz 9.2 1820x1120x880 250
WS 310-610/M BLU Series Mechanical modulation 680/1800~5250 WS 510/M BLU 101 004 003 230V 50Hz 12 1820x1120x880 250
WS 310-610/M BLU Series Mechanical modulation 1000/2200~6250 WS 610/M BLU 101 004 004 230V 50Hz 15 1820x1120x880 280
WS 68-200/M BLU Series Mechanical modulation 150/350~860 WS 68/M BLU 101 003 001 230V 50Hz 1.5 1400x700x650 70
WS 68-200/M BLU Series Mechanical modulation 300/600~1300 WS 120/M BLU 101 003 002 230V 50Hz 2.2 1400x700x650 73
WS 68-200/M BLU Series Mechanical modulation 300/930~1860 WS 160/M BLU 101 003 003 230V 50Hz 4.5 1400x1000x650 76
WS 68-200/M BLU Series Mechanical modulation 550/1380~2400 WS 200/M BLU 101 003 004 230V 50Hz 5.5 1400x1000x650 85
WS 1000-1200/E BLU Series Electronic modulation 1100/4000~10100 WS 1000/E BLU 101 005 009 230V 50Hz 22 1820x1120x880 250
WS 1000-1200/E BLU Series Electronic modulation 1500/5500~11000 WS 1200/E BLU 101 005 010 230V 50Hz 25 1820x1120x880 250
WS 810/E BLU Series Electronic modulation 1200/3500~8000 WS 810/E BLU 101 005 008 230V 50Hz 22 1820x1120x880 250
WS 310-610/E BLU Series Electronic modulation 500/1350~3800 WS 310/E BLU 101 005 001 230V 50Hz 7.5 1820x1120x880 250
WS 310-610/E BLU Series Electronic modulation 950/1830~4590 WS 410/E BLU 101 005 002 230V 50Hz 9.2 1820x1120x880 250
WS 310-610/E BLU Series Electronic modulation 1000/2500~5170 WS 510/E BLU 101 005 003 230V 50Hz 12 1820x1120x880 250
WS 310-610/E BLU Series Electronic modulation 1410/3000~6500 WS 610/E BLU 101 005 004 230V 50Hz 15 1820x1120x880 280
WS 68-200/E BLU Series Electronic modulation 150/350~860 WS 68/E BLU 101 003 005 230V 50Hz 1.5 1400x700x650 70
WS 68-200/E BLU Series Electronic modulation 300/600~1300 WS 120/E BLU 101 003 006 230V 50Hz 2.2 1400x700x650 73
WS 68-200/E BLU Series Electronic modulation 300/930~1860 WS 160/E BLU 101 003 007 230V 50Hz 4.5 1400x1000x650 76
WS 68-200/E BLU Series Electronic modulation 550/1380~2400 WS 200/E BLU 101 003 008 230V 50Hz 5.5 1400x1000x650 85
