WS40 Light Oil Burner

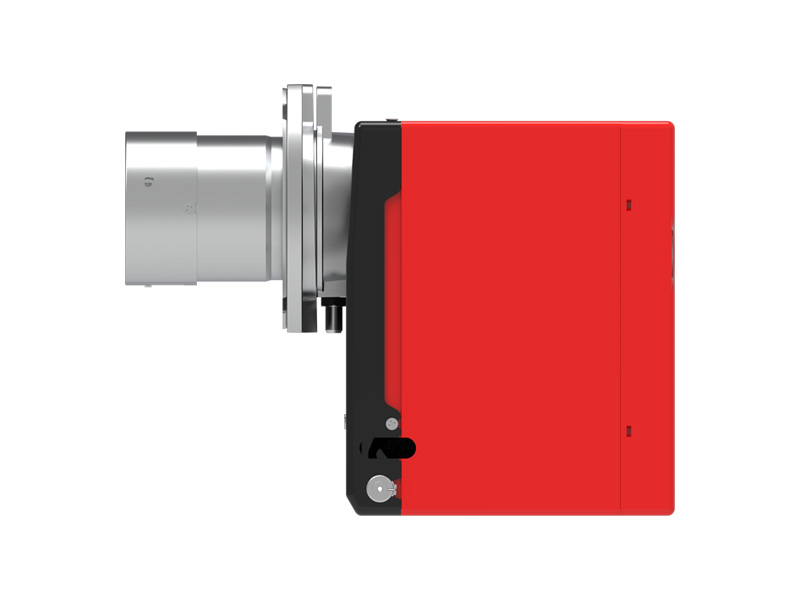

WS 40 GS Series Light Oil Burner View 1

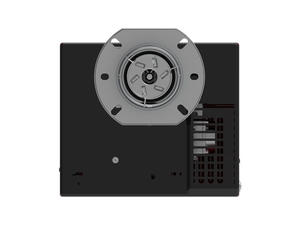

WS 40 GS Series Light Oil Burner View 2

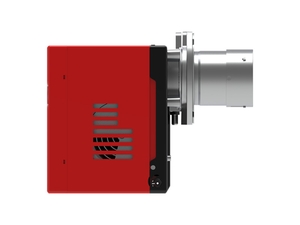

WS 40 GS Series Light Oil Burner View 3

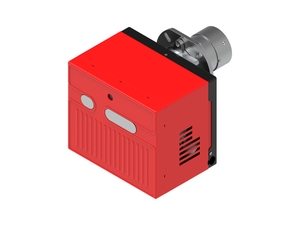

WS 40 GS Series Light Oil Burner View 4

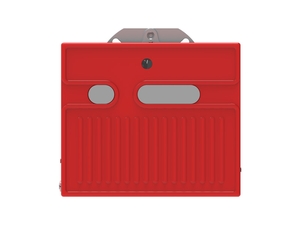

WS 40 GS Series Light Oil Burner View 5

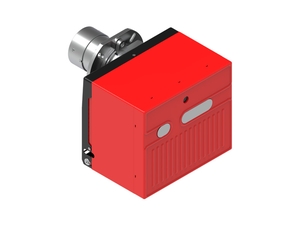

WS 40 GS Series Light Oil Burner View 6

Description

WS 40 GS Series Light Oil Burner is a single-stage light oil burner family for compact boiler and heating equipment, covering the 28 to 213 kW output range across the G5, G10, and G20 models.

Operating Modes

Single-stage

Key Features

  • Single-stage light oil burner configuration.
  • Three model sizes are available: WS 40 G5, WS 40 G10, and WS 40 G20.
  • Compact package sizes support smaller boiler and heating installations.

General Specifications

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
WS 40 G5 101 021 001 28~60 / 90 383x315x325 12
WS 40 G10 101 021 002 54~120 / 90 423x348x340 13
WS 40 G20 101 021 003 95~213 / 150 483x393x377 16

Dimensions

Model A1(mm) A2(mm) B1(mm) B2(mm) C(mm) C1(mm) E(mm) I(mm) J(mm) L(mm) M(mm) N(mm)
WS 40 G5 136 136 180 72 243 107 89 147 180 150 72 130
WS 40 G10 153 153 204 82 369 108 89 166 189 170 83 140
WS 40 G20 175 175 230 92 413 118 105 198 213 190 99 160

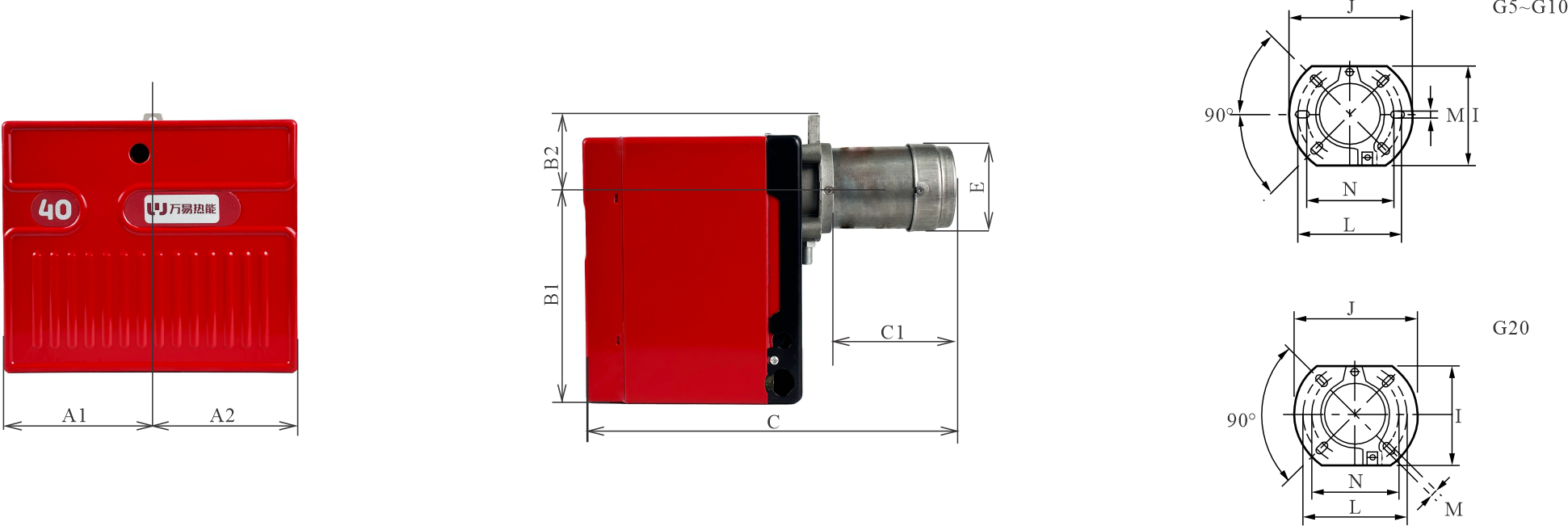

WS 40 GS Series Dimension Drawing

Performance Curve

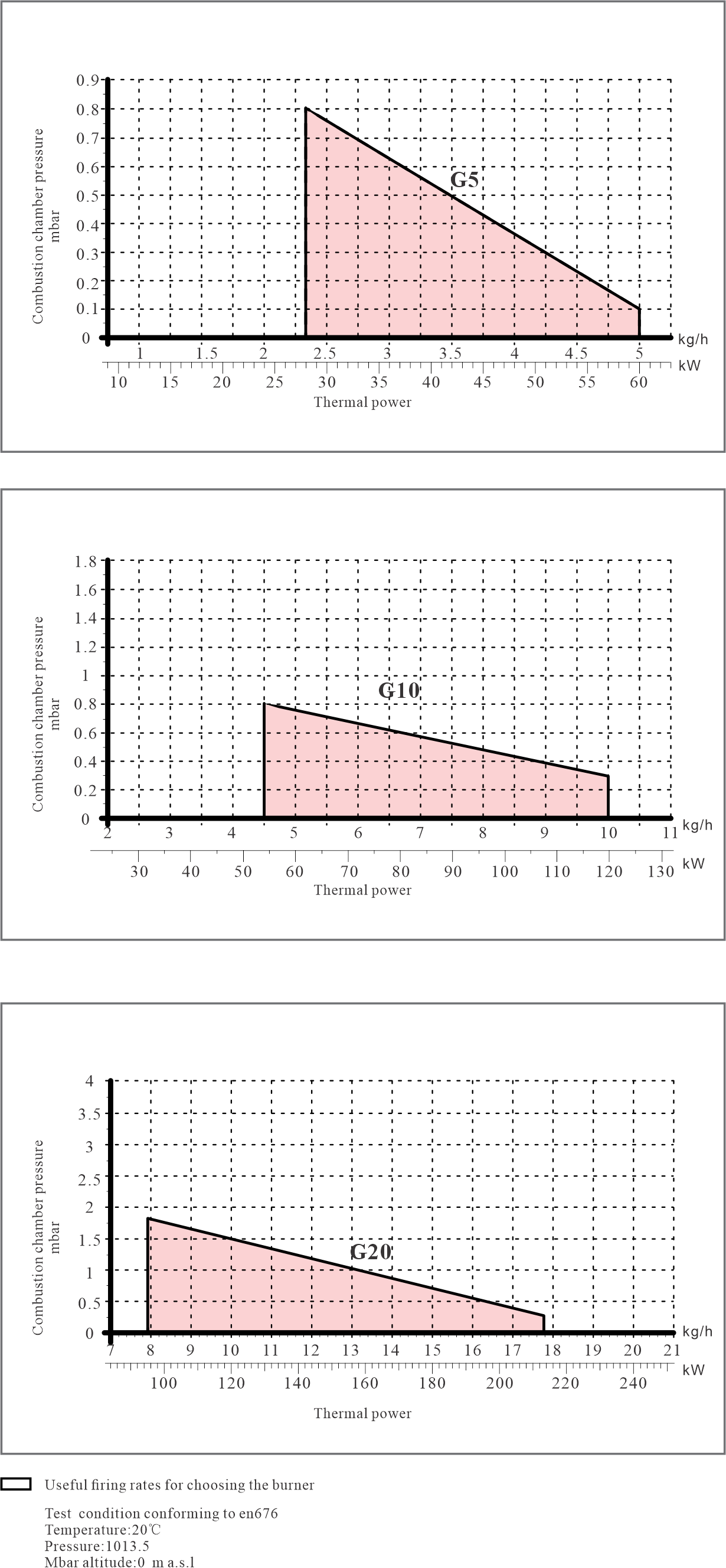

WS 40 GS Series Performance Curve
