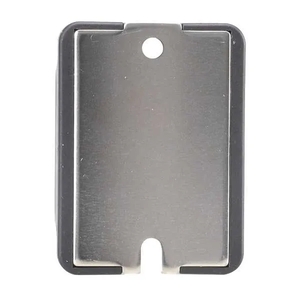

VSC / VSR8 Single Phase Solid State Relays


Description

The VSC and VSR8 series are single phase solid state relays for electronic AC load switching in industrial control systems. VSC covers compact lower-current SSR options, while VSR8 extends the range to higher current ratings and broader AC output-voltage choices.

Main Features

  • Single phase solid state switching for resistive and industrial loads.
  • DC-controlled and AC-controlled AC versions are available by model group.
  • VSC current options include 10A, 15A and 25A.
  • VSR8 covers current ratings up to 120A, depending on model.
  • Designed for heat-sink mounting with correct thermal derating.

Model Coverage

SeriesCoverage

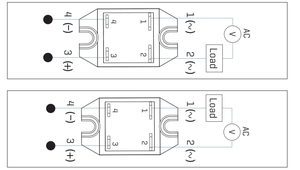

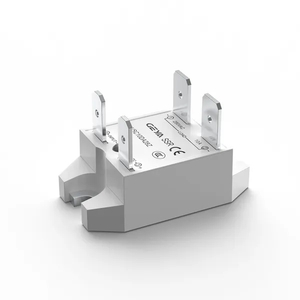

VSCCompact single phase SSR with 24-280VAC output range.

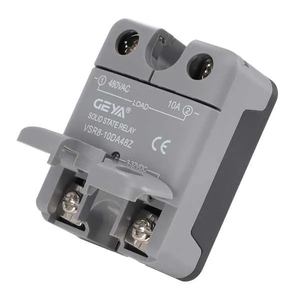

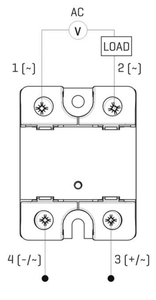

VSR8Single phase SSR range with DC-to-AC and AC-to-AC versions.
VDR8DC-to-DC SSR variants listed in the VSR8/VDR8 catalog.
