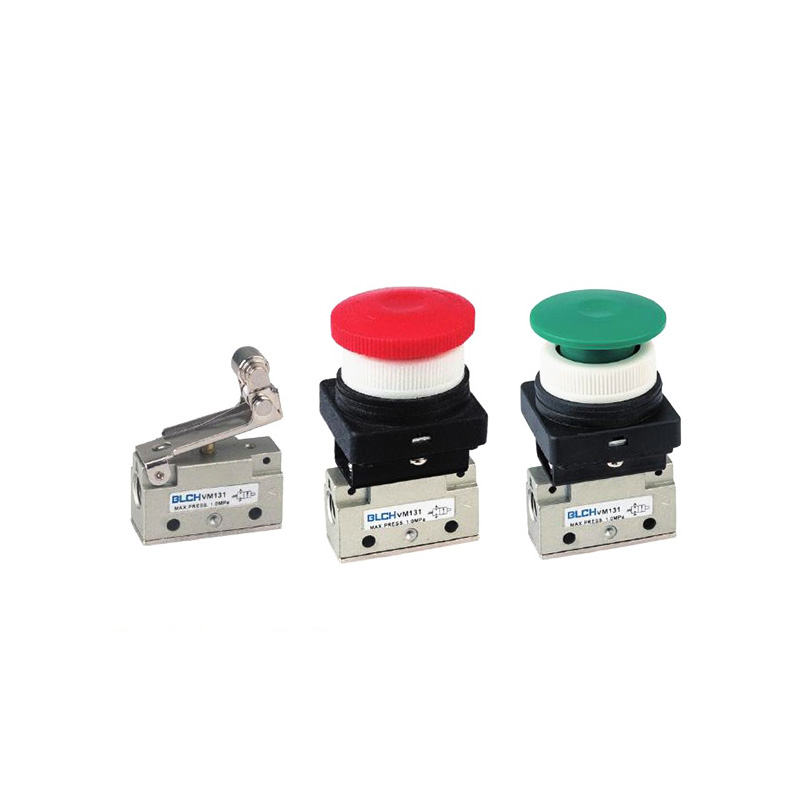

VM100 mechanical valves offer two-port and three-port configurations with side or bottom connections. Select the rod length and actuator together: roller levers require short rods, while most plunger, toggle and button heads use long rods.
| Parameter | Specification |
|---|---|
| Media | Air and inert gases |
| Working pressure | 0-0.8MPa |
| Ambient and fluid temperature | -5-60°C; nonfreezing |
| Effective sectional area | 2.5mm² |
| Cv | 0.14 |
| Side connection ordering code 01 | PT1/8 |
| Bottom connections | M5×0.8 |
| Lubrication | Not required; use ISO VG32 oil if lubrication is supplied |
VM131-01-01(S) identifies a three-port valve with a short rod and side connections, PT1/8 port code 01, roller lever actuator 01 and hard-steel roller option S.
| Code element | Options |
|---|---|
| Family | VM1 |
| Number of ports | 2: two ports; 3: three ports |
| Connection position and rod length | 0: side, long; 1: side, short; 2: bottom, long; 3: bottom, short |
| Side port code | 01: PT1/8 |
| Roller option | S: hard-steel roller |
| Button color | R: red; B: black; G: green; Y: yellow |
| Indicator option | Z: small indicator light |
Yes indicates an available combination; no indicates that the actuator and rod configuration cannot be combined.
| Actuator | Code | Side connected | Bottom connected | ||
|---|---|---|---|---|---|
| Long, 0 | Short, 1 | Long, 2 | Short, 3 | ||
| Basic | 00 | Yes | Yes | Yes | Yes |
| Roller lever | 01 | No | Yes | No | Yes |
| One-way roller lever | 02 | No | Yes | No | Yes |
| Straight plunger | 05 | Yes | No | Yes | No |
| Roller plunger | 06 | Yes | No | Yes | No |
| Transverse plunger | 07 | Yes | No | Yes | No |
| Toggle | 08 | Yes | No | Yes | No |
| Mushroom button | 30 | Yes | No | Yes | No |
| Raised button | 32 | Yes | No | Yes | No |
| Flat button | 33 | Yes | No | Yes | No |
| Two-position knob | 34 | Yes | No | Yes | No |
| Three-position knob | 35 | No | Yes | No | Yes |
| Two-position locking knob | 36 | Yes | No | Yes | No |

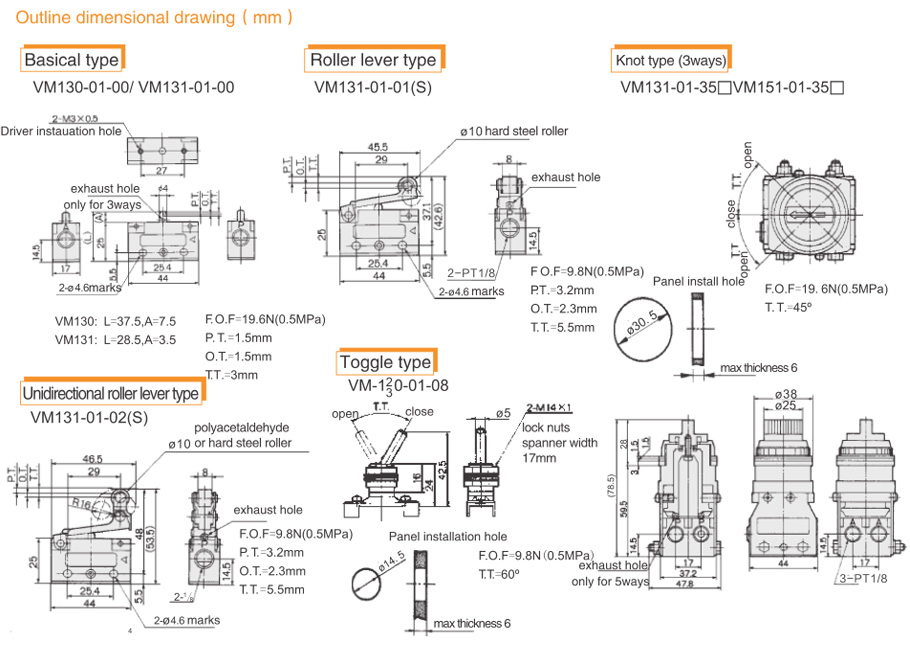

The outline sheet distinguishes the basic VM130/VM131 bodies, standard and one-way roller levers, toggle and three-position knob heads. Follow the model label beside each drawing. The shared knob drawing also identifies VM151; its five-port exhaust detail does not describe the two-port or three-port models above.
| Configuration | Operating force at 0.5MPa | Travel or angle |
|---|---|---|
| Basic VM130 / VM131 | 19.6N | Pretravel 1.5mm; overtravel 1.5mm; total 3mm |
| VM131 roller lever, 01(S) | 9.8N | Pretravel 3.2mm; overtravel 2.3mm; total 5.5mm |
| VM131 one-way roller lever, 02(S) | 9.8N | Pretravel 3.2mm; overtravel 2.3mm; total 5.5mm |
| Toggle head | 9.8N | Total travel angle 60° |
| Three-position knob head | 19.6N | Travel angle 45° |
The toggle requires a Ø14.5mm panel hole; the knob head uses Ø30.5mm. Both panel details show a maximum panel thickness of 6mm.
