Vector Type Inverter XLP6500 Series


Description

XLP6500 Series vector inverters are used for adjustable motor-speed control across a wide power range, from compact low-power frames to high-power three-phase 380V drives. The series supports V/F and vector control, broad frequency adjustment and standard inverter protection for industrial drive cabinets and machinery.

Common Parameters

ParameterSpecification
Control ModeV/F control and vector control
Output Frequency0-500Hz
Carrier Frequency0.5-16kHz, automatically adjusted according to load condition
Frequency ResolutionDigital setting 0.01Hz; analog setting up to maximum frequency x 0.025%
Overload Capacity150% for 60s; 190% for 1.5s
Protection FunctionsOvervoltage, overcurrent, undervoltage, overheating and short-circuit protection
Protection LevelIP20
Cooling MethodForced air cooling
Operating EnvironmentIndoor use; altitude 1000m or below without derating, derating required above 1000m; avoid corrosive gases and liquids

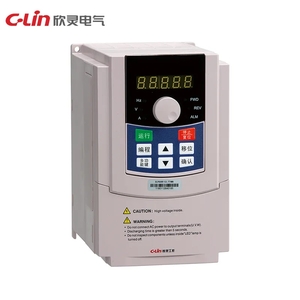

XLP6500-3.7

ParameterSpecification
Input and Output Platform3PH AC380V to AC0-380V, or 3PH AC220V to AC0-220V by selection
Rated Power0.75-3.7kW on the 380V listing; 0.4-2.2kW on the 220V listing
Rated Current2.1-9A on the 380V listing; 2.3-9A on the 220V listing
Dimensions185 x 118 x 157 mm
Mounting175 x 107 mm, 4-M4

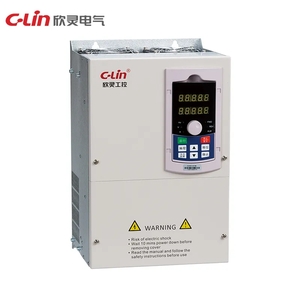

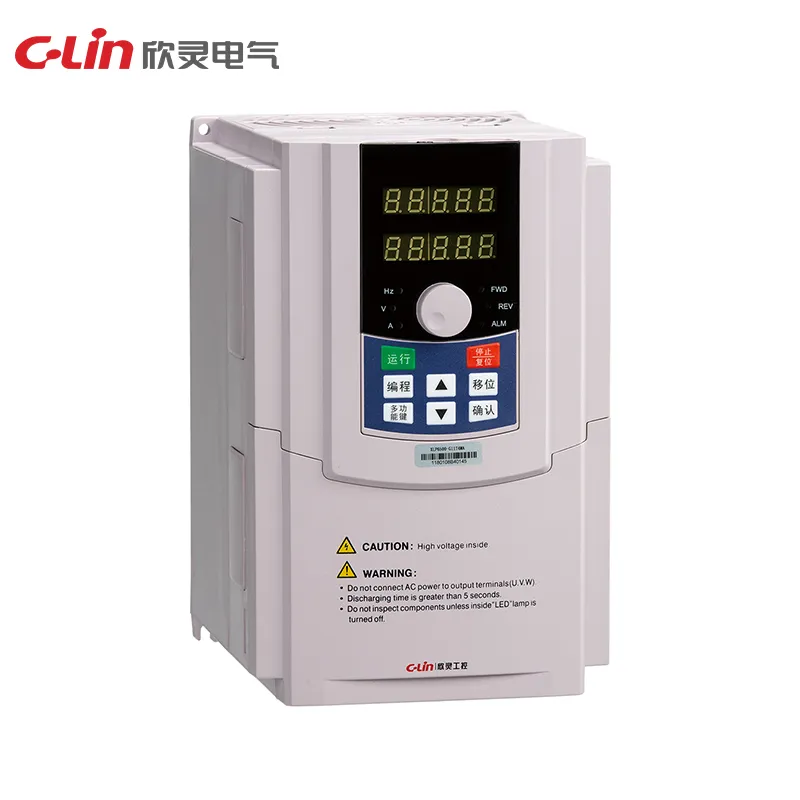

XLP6500-11

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Rated Power5.5kW, 7.5kW, 11kW
Rated Current13A, 17A, 25A
Dimensions265 x 170 x 177 mm
Mounting255 x 120 mm, 4-M5

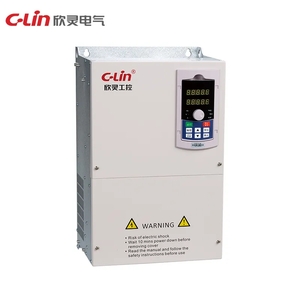

XLP6500-15

ParameterSpecification
Input Power3PH AC220V, 50/60Hz
Output Power3PH AC0-220V
Rated Power15kW
Rated Current60A
Dimensions463 x 285 x 224 mm
Mounting447 x 235 mm, 4-M6

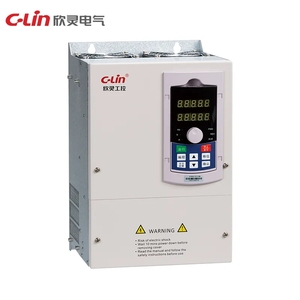

XLP6500-18.5

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Rated Power15kW, 18.5kW
Rated Current32A, 37A
Dimensions335 x 217 x 194 mm
Mounting324 x 140 mm, 4-M6

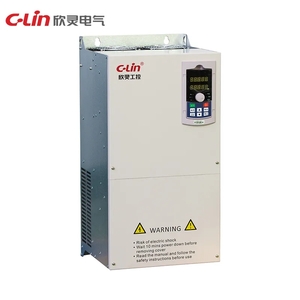

XLP6500-75

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Rated Power45kW, 55kW, 75kW
Rated Current91A, 112A, 150A
Dimensions613 x 305 x 294 mm
Mounting592 x 200 mm, 4-M10

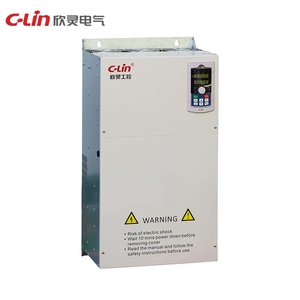

XLP6500-132

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Rated Power90kW, 110kW, 132kW
Rated Current176A, 210A, 253A
Dimensions753 x 400 x 293 mm
Mounting732 x 280 mm, 4-M10

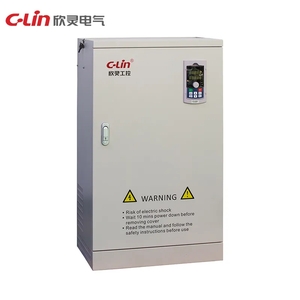

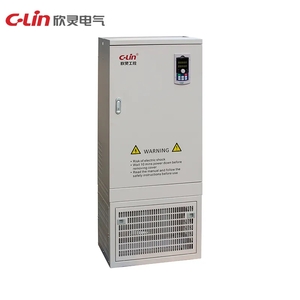

XLP6500-220

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Rated Power160kW, 185kW, 200kW, 220kW
Rated Current304A, 350A, 377A, 426A
Dimensions865 x 520 x 343 mm
Mounting837 x 380 mm, 4-M12

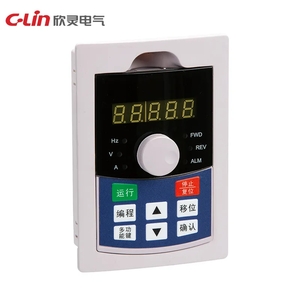

XLP6500-A Control Panel

ParameterSpecification
Dimensions132 x 91 x 29 mm
Panel Cutout115 x 85 mm

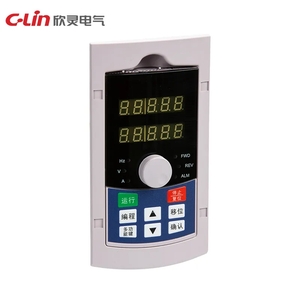

XLP6500-B Control Panel

ParameterSpecification
Dimensions169 x 91 x 29 mm
Panel Cutout146.5 x 75 mm
