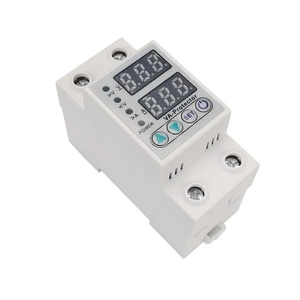

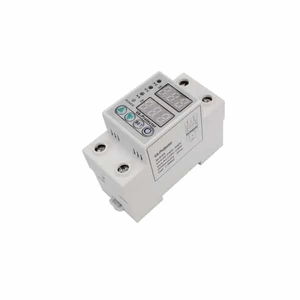

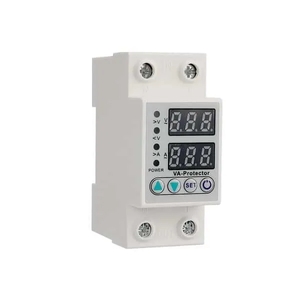

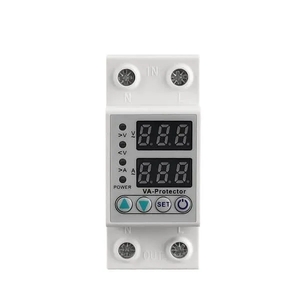

VANP 2P Voltage and Current Protector


Description

The VANP 2P voltage and current protector integrates over-voltage, under-voltage and over-current protection in a two-pole DIN rail format. It provides automatic recovery after fault clearance and displays voltage and current for on-panel monitoring.

Product Data

ItemSpecification
Model listedTVPS1-63B
Power supply230VAC, 50/60Hz
Rated current versions40A and 63A versions listed
Maximum load current setting1A to 40A adjustable, default 40A; 1A to 63A adjustable, default 63A
Over-voltage protection230V to 300V or OFF, default 270V
Over-voltage recovery225V recovery value listed in the product data

Functions

  • Over-voltage protection for excessive supply voltage.
  • Under-voltage protection for low supply voltage conditions.
  • Over-current protection with adjustable current threshold according to the rated version.
  • Automatic recovery after the circuit returns to the configured safe range.
  • Voltage and current display for local monitoring.

Application

This series is suited to single-phase distribution circuits where voltage and load current need to be monitored at the device and automatically disconnected when the configured protection thresholds are exceeded.
