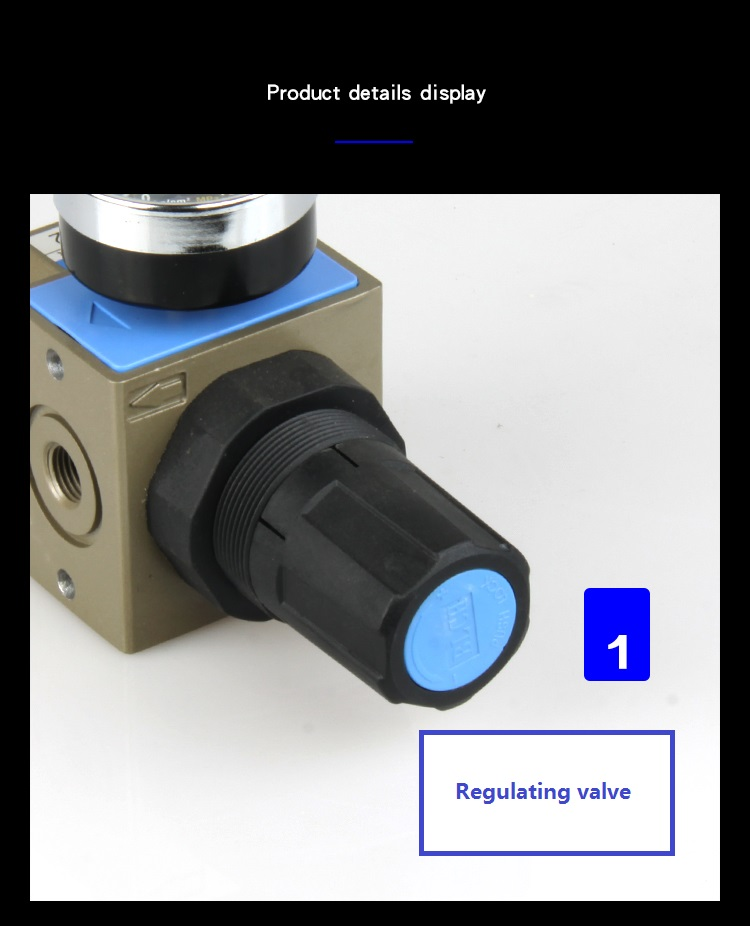

UR air regulators provide manual pressure control across five connection sizes from 1/4″ to 1″. The adjustment mechanism uses a balanced design, and the push-in locking knob helps prevent unintended changes to the setting. Panel mounting is supported, with a fixed bracket available as an option.
| Model | Port Rc(G) | Maximum flow, L/min (ANR) |
|---|---|---|

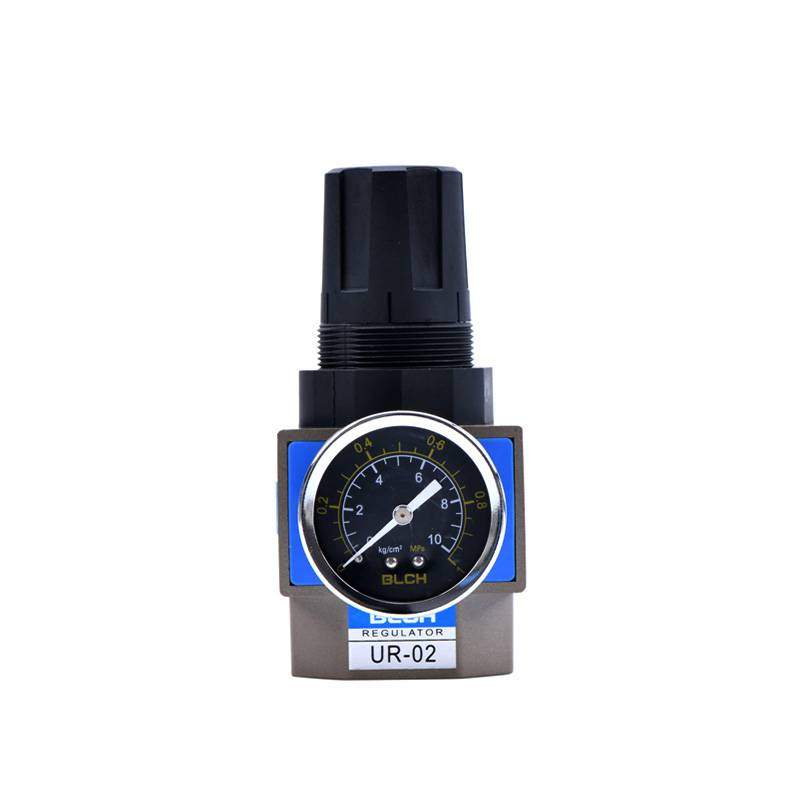

| UR-02 | 1/4″ | 2100 |
| UR-03 | 3/8″ | 2130 |

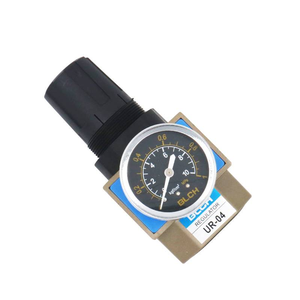

| UR-04 | 1/2″ | 2750 |
| UR-06 | 3/4″ | 8000 |
| UR-08 | 1″ | 8500 |
| Parameter | Specification |
|---|---|
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | 5-60°C |
| Mounting | Panel mounting; optional fixed bracket |

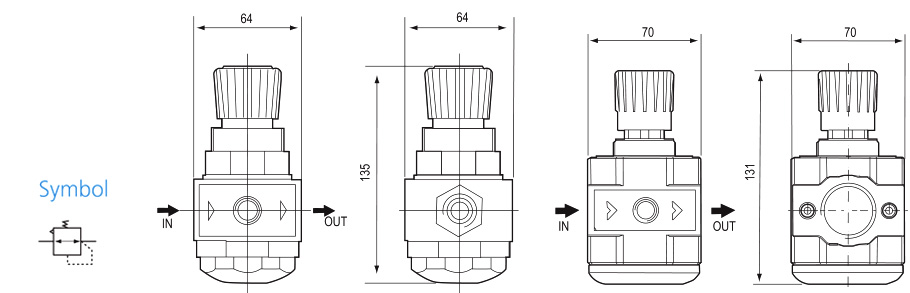

The drawing shows two outline formats: 64mm wide with a 135mm vertical dimension, and 70mm wide with a 131mm vertical dimension. It also marks air-flow direction and the regulator circuit symbol.
The attached Pneumatic Components Catalogue includes the UR range and related air preparation products.
