Universal Inverter XLP530 Series


Description

XLP530 Series universal inverters are compact drives for small and medium motor speed-control applications. The series includes single-phase 220V and three-phase 380V input versions, with V/F or vector control, overload capacity and built-in drive protection for panel-mounted equipment.

Common Parameters

ParameterSpecification
Control ModeV/F control and vector control
Overload Capacity150% for 60s; 190% for 1.5s
Protection FunctionsOvervoltage, overcurrent, undervoltage, overheating and short-circuit protection
Protection LevelIP20
Cooling MethodForced air cooling
Operating EnvironmentIndoor use; altitude 1000m or below without derating, derating required above 1000m; avoid corrosive gases and liquids

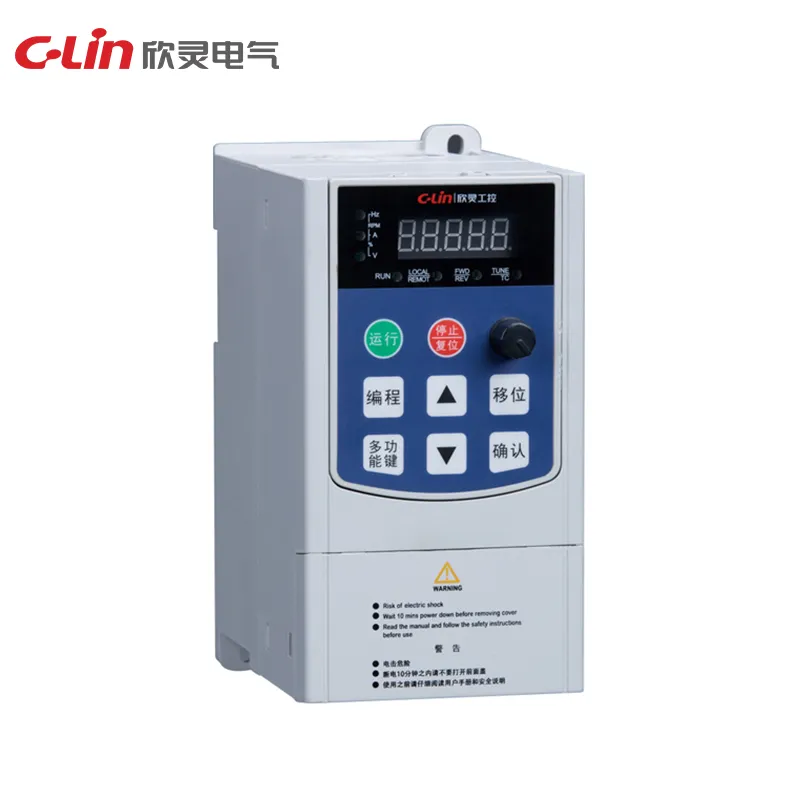

XLP530-G2.2

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Output Frequency0-500Hz
Rated Power0.75kW, 1.5kW, 2.2kW
Rated Current2.1A, 3.8A, 5.1A
Dimensions170.2 x 84.6 x 138.1 mm
Mounting67.3 x 157.5 mm mounting; 35mm rail mounting supported

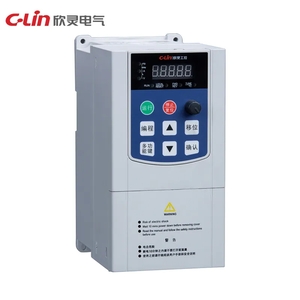

XLP530-G5.5

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-380V
Output Frequency0-500Hz
Rated Power3.7kW, 5.5kW
Rated Current9A, 13A
Dimensions194 x 97 x 153.3 mm
Mounting85 x 184 mm mounting; 35mm rail mounting supported

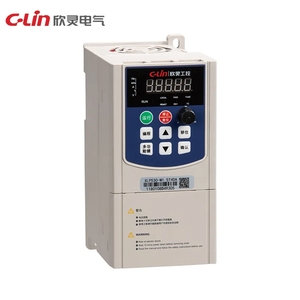

XLP530-M1.5

ParameterSpecification
Input Power1PH AC220V, 50/60Hz
Output Power3PH AC0-220V
Output Frequency0-500Hz
Rated Power0.4kW, 0.75kW, 1.5kW
Rated Current2.3A, 4A, 7A
Dimensions165 x 78 x 116 mm
Mounting65 x 155 mm mounting; 35mm rail mounting supported

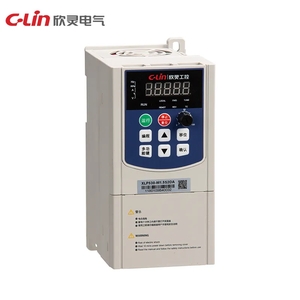

XLP530-M2.2

ParameterSpecification
Input Power3PH AC380V, 50/60Hz
Output Power3PH AC0-220V
Output Frequency0-500Hz
Rated Power0.75kW, 1.5kW, 2.2kW
Rated Current2.1A, 3.8A, 5.1A
Dimensions165 x 78 x 116 mm
Mounting65 x 155 mm mounting; 35mm rail mounting supported
