Ultra Short Anti-Vandal Switches for Shallow Control Panels

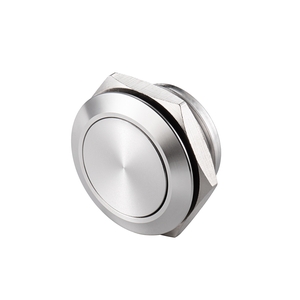

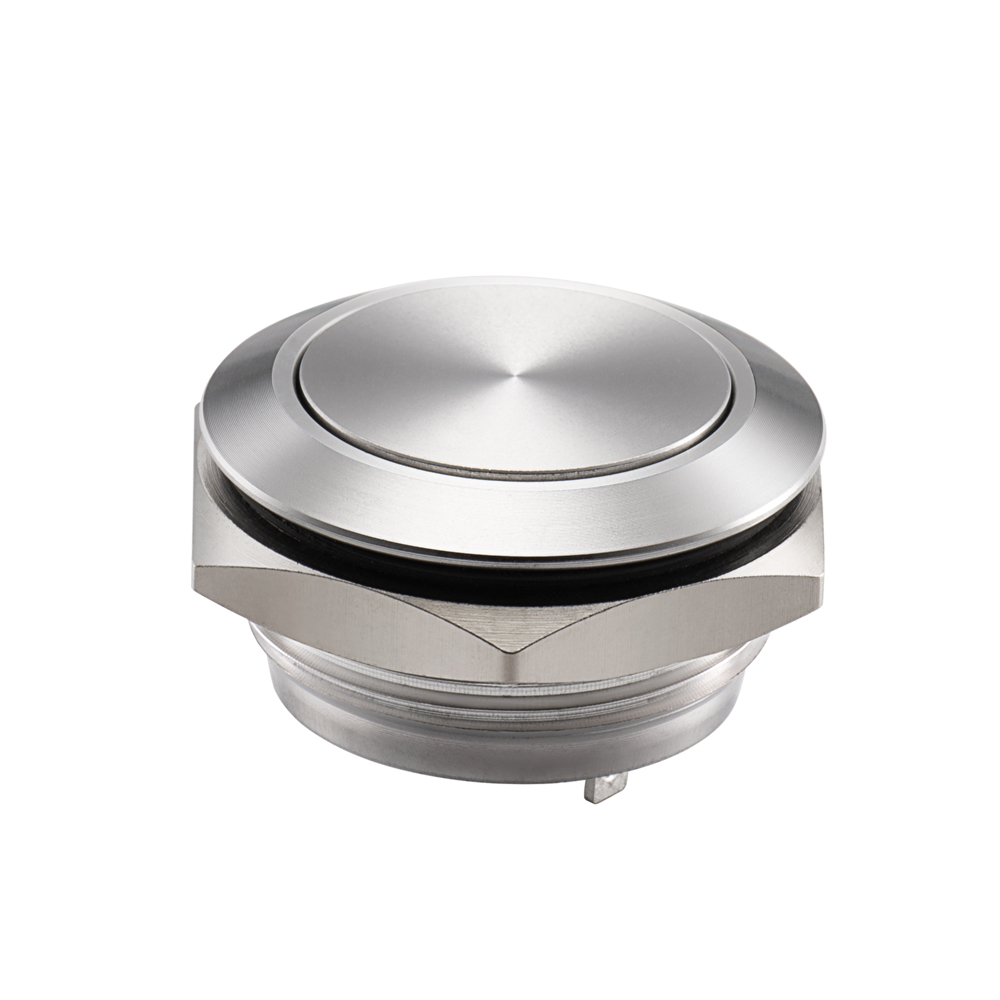

Ultra Short Anti-Vandal Switch (Non-Illuminated)

Series Part Number

Part Number:	L12U	F	C	M	S	R	W	12V	LE
Explanation:	Series L12U - 12mm L16U - 16mm L19U - 19mm L22U - 22mm L25U - 25mm	Actuator F - Flat	Terminal NONE - Solder-lug (2.0x0.5) N - Screw terminal (19mm only) C - Wire-leads 300mm long or request	Function M - Momentary 1-1NO	Material S - Stainless steel	Illumination Style NONE - Non-illuminated R - Ring illumination	LED-Color NONE - Non-illuminated W - White R - Red O - Orange G - Green B - Blue Y - Yellow 3A - Red/ Green/ Blue (19mm only or request) Common Anode	Illumination Voltage NONE - Non-illuminated 3.3V - 3.3V illumination voltage 6V - 6V illumination voltage 12V - 12V illumination voltage 24V - 24V illumination voltage	Graphic NONE - Non-illuminated LE - Laser etched

Description

The L12U, L16U, L19U, L22U, and L25U series represent the ultimate in low-profile, anti-vandal switching technology. These ultra-short switches are specifically designed for applications where space behind the panel is extremely limited, yet high durability and protection are required. Available in various mounting diameters, they offer a sleek, professional interface for modern industrial and commercial equipment.

Key Features

Ultra-Compact Design: Extremely short body length for space-constrained installations.
Multiple Mounting Sizes: Available in 12mm, 16mm, 19mm, 22mm, and 25mm diameter panel cutouts.
Superior Protection: IP67 rated for complete waterproof and dustproof performance, plus IK09 impact resistance.

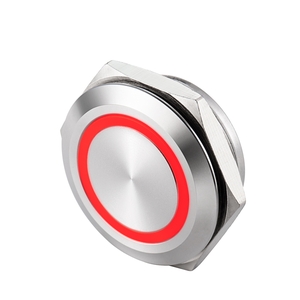

Visual Options: Available with ring illumination in multiple LED colors and optional laser etching.
Simplified Wiring: Supports soldered wire leads for quick and convenient integration.

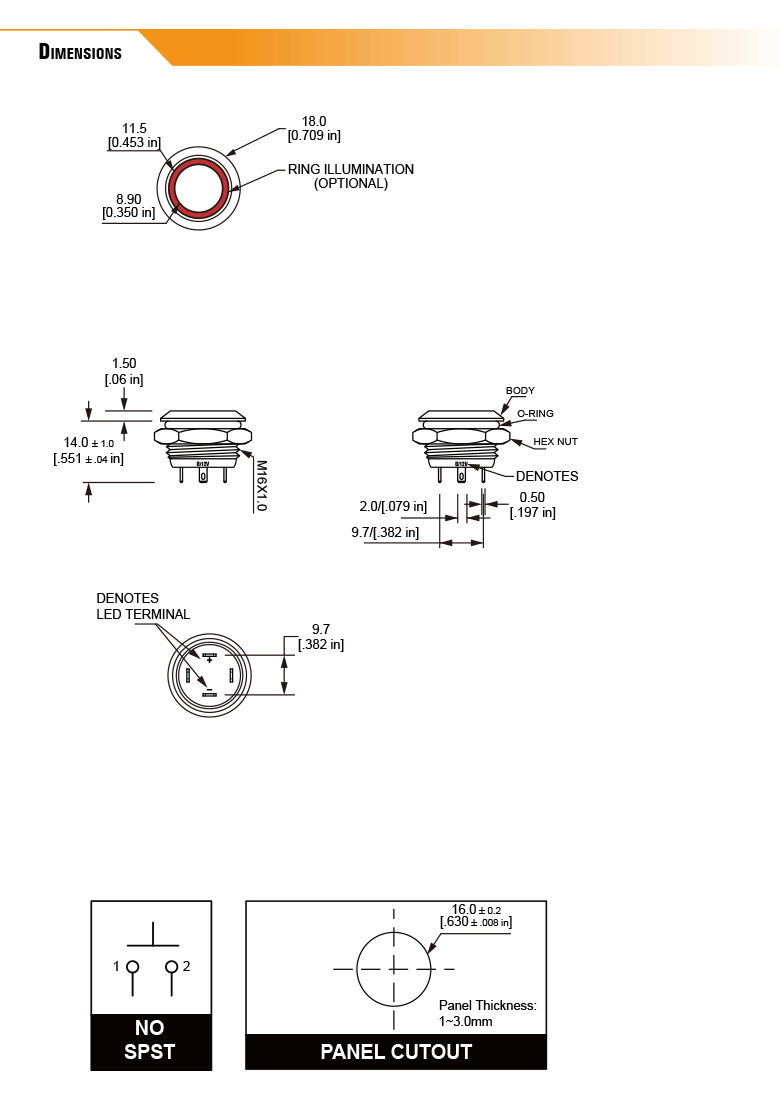

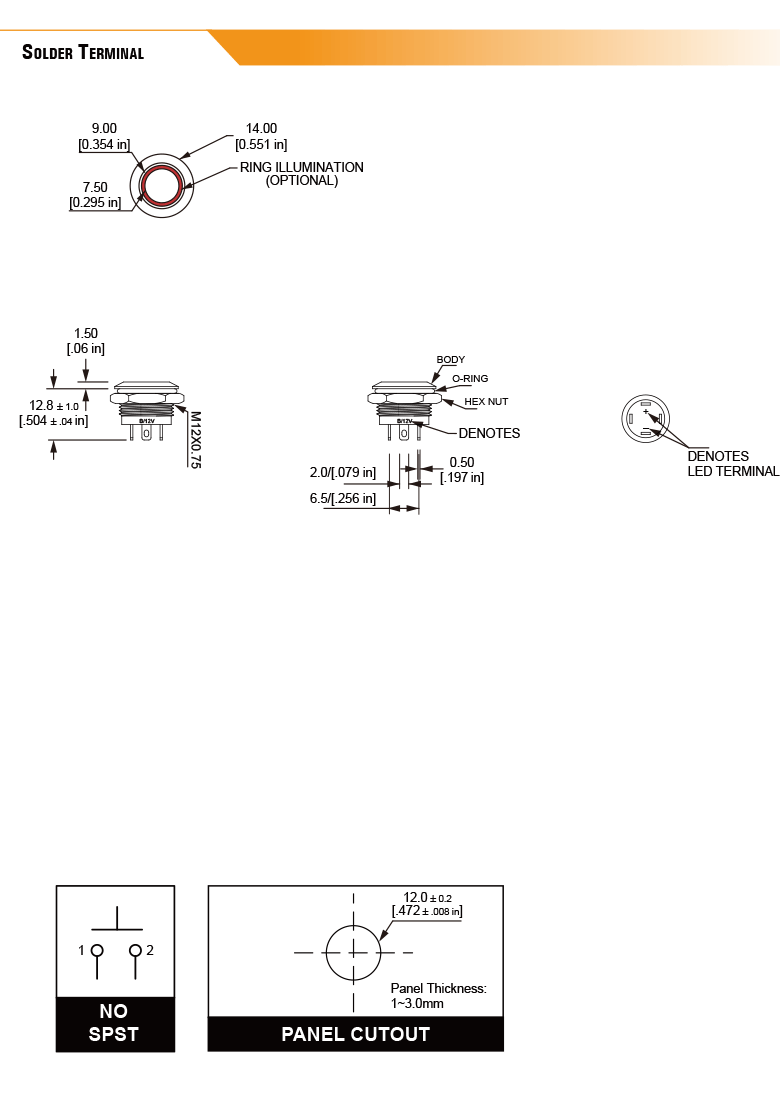

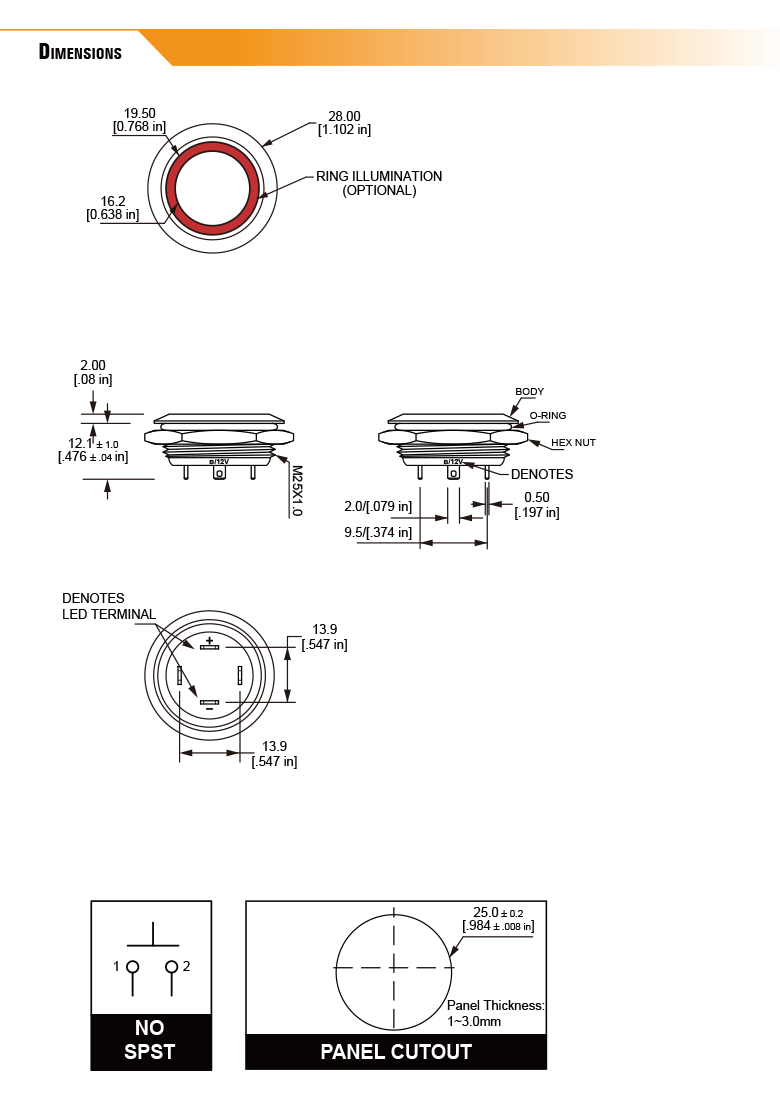

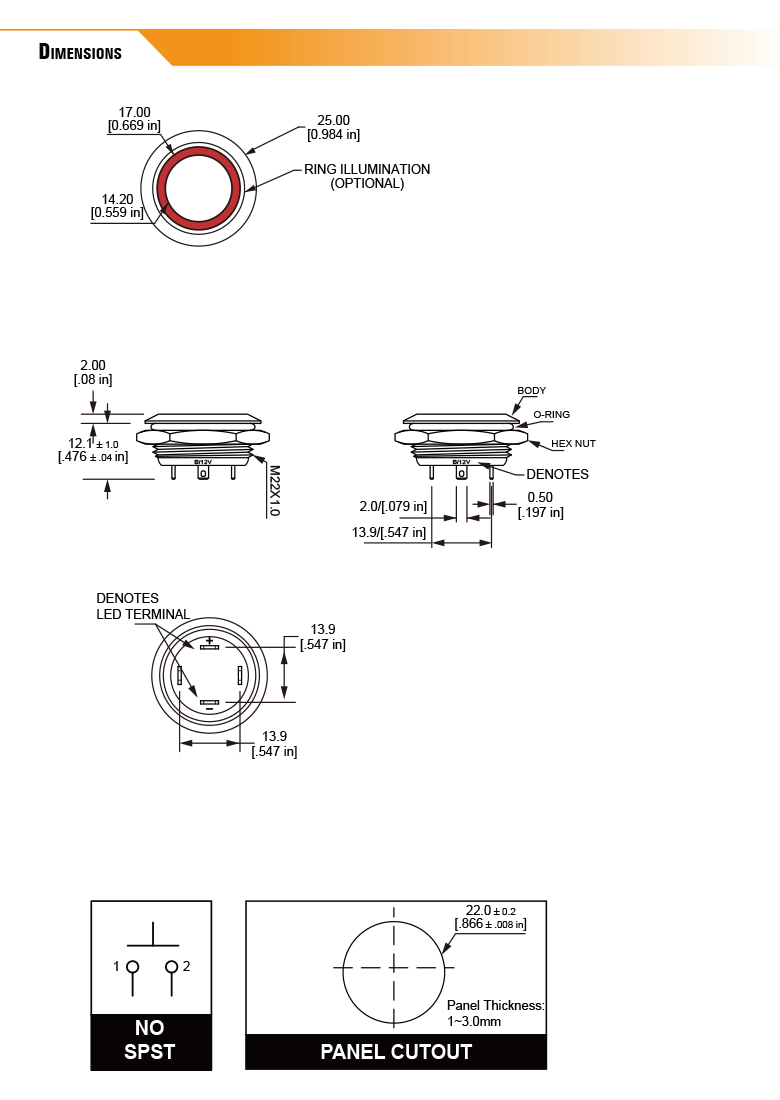

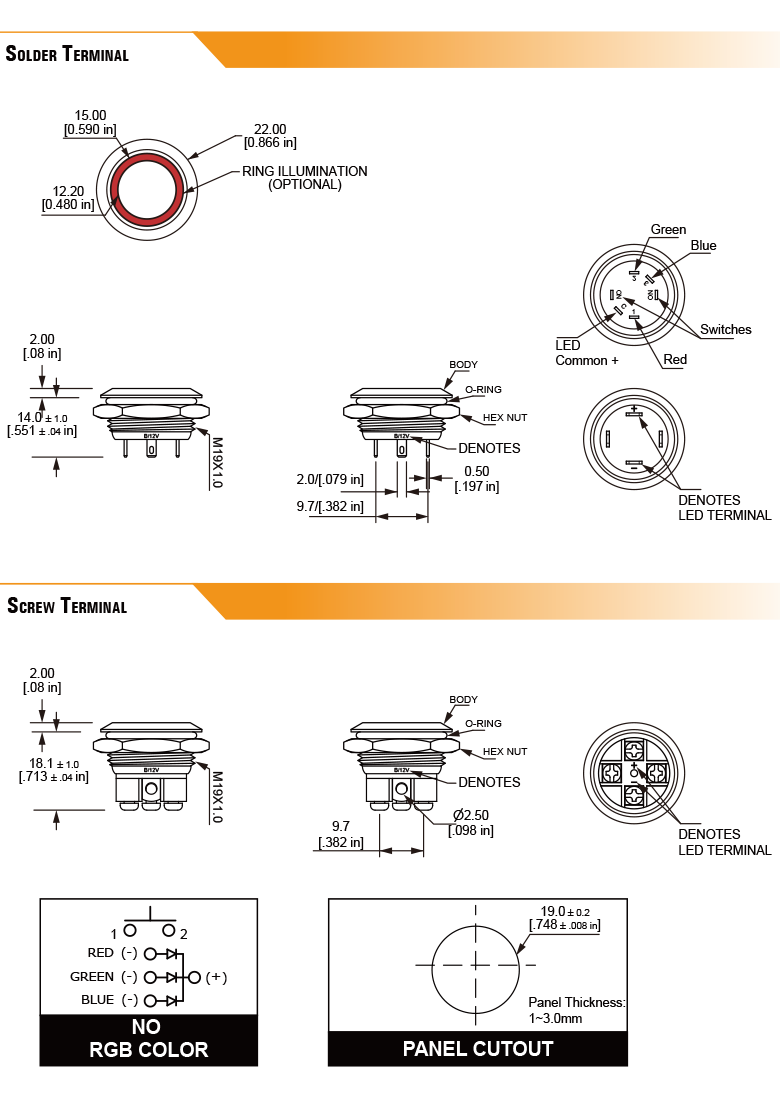

Technical Specifications

Electrical Rating	50mA, 12VDC
Mechanical Life	1,000,000 Cycles
Electrical Life	50,000 Cycles
Contact Resistance	50mΩ Max.
Insulation Resistance	1000 MΩ Min.
Dielectric Strength	2,000VAC
Travel	0.5mm
Operating Temp.	-20°C to 55°C
