32 digital inputs with an integrated network interface

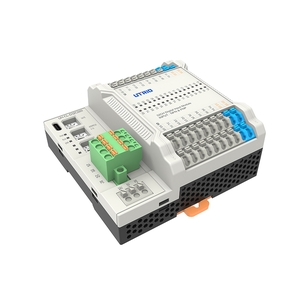

UH horizontal remote I/O modules provide 32 digital inputs supporting NPN and PNP signals. Choose the model for the required network protocol. The CL model uses classic CC-Link with a dedicated shielded cable; the CB model uses CC-Link IE Field Basic over Ethernet.
| Model | Protocol | Transmission rate |
|---|
| UH-PN-D32C000 | PROFINET | 10/100Mbps, full duplex |
|---|
| UH-EC-D32C000 | EtherCAT | 100Mbps |
|---|
| UH-EIP-D32C000 | EtherNet/IP | 100Mbps |
|---|
| UH-CB-D32C000 | CC-Link IE Field Basic | 100Mbps |
|---|
| UH-MT-D32C000 | Modbus TCP | 100Mbps |
|---|
| UH-CL-D32C000 | CC-Link | 10Mbps, 5Mbps, 2.5Mbps, 625kbps or 156kbps |
|---|
Ethernet model communication
PN, EC, EIP, CB and MT models use Category 5 Ethernet cable with a communication distance of up to 100m. The communication data capacities below apply to the interface; each listed module has 32 physical inputs.
| Model | Maximum communication data capacity | Address or port information |
|---|
| UH-PN-D32C000 | 1024 bytes | Address setting according to PROFINET |
|---|
| UH-EC-D32C000 | 1024 bytes | Address setting according to EtherCAT |
|---|
| UH-EIP-D32C000 | 1024 bytes | Address setting according to EtherNet/IP |
|---|
| UH-CB-D32C000 | RX/RY: 64 bits; RWr/RWw: 32 words per logical station | Port 61450 for periodic data; port 61451 for node search |
|---|
| UH-MT-D32C000 | 1024 bytes | Address setting according to Modbus TCP |
|---|
Classic CC-Link cable distance
UH-CL-D32C000 uses dedicated CC-Link three-core shielded stranded cable. Select the communication speed for the required cable distance.
| Transmission rate | Maximum communication distance |
|---|
| 10Mbps | 100m |
|---|
| 5Mbps | 160m |
|---|
| 2.5Mbps | 400m |
|---|
| 625kbps | 900m |
|---|
| 156kbps | 1200m |
|---|
Shared network and input characteristics
| Characteristic | All models |
|---|
| Station type | Remote I/O station |
|---|
| Station occupancy | 1 station |
|---|
| Topology | Bus topology |
|---|
| Network isolation | Electrical isolation |
|---|
| Digital inputs | 32 channels, NPN and PNP |
|---|
| Signal connection | One-wire |
|---|
| Typical input current | 3mA |
|---|
| Reverse circuit protection | Supported |
|---|
| Field isolation | Optical isolation from the field layer |
|---|
| Error diagnostics | Supported |
|---|
| Input state | PNP operation | NPN operation |
|---|
| ON | 15-30V | -3V to +3V |
|---|
| OFF | -3V to +3V | 15-30V |
|---|
Housing and operating environment
| Characteristic | All models |
|---|
| Height × width × depth | 43.7mm × 100mm × 100mm |
|---|
| Mounting | 35mm DIN rail |
|---|
| Ingress protection | IP20 |
|---|
| Pollution degree | 2 |
|---|
| Operating temperature | -10°C to +55°C |
|---|
| Storage temperature | -20°C to +85°C |
|---|
| Relative humidity | 5-95%RH, non-condensing |
|---|
