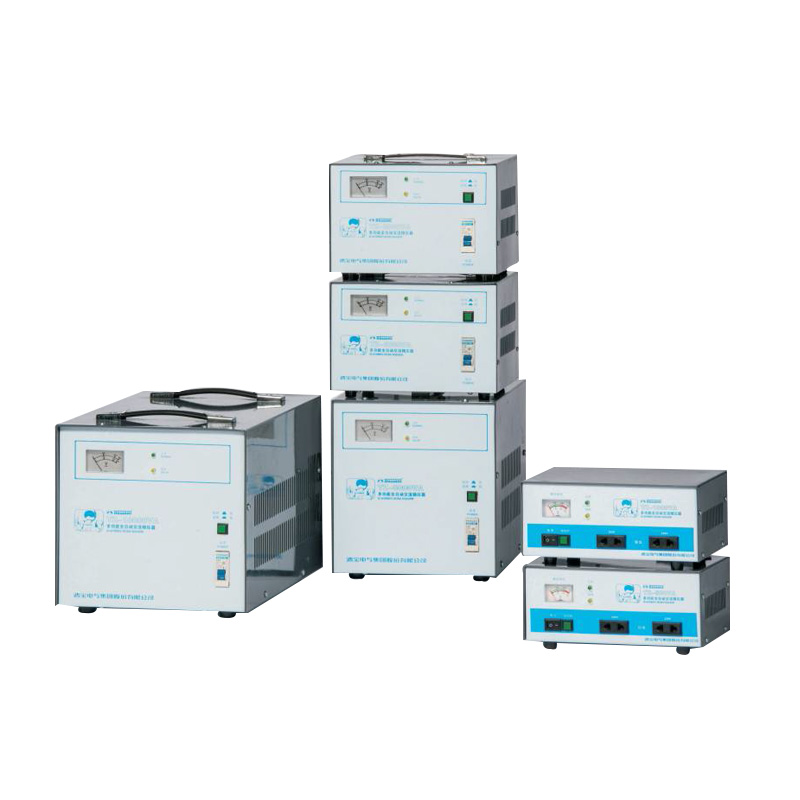

TZ/SVR Multi-Function Relay Control AC Voltage Stabilizer

Description

TZ/SVR is a single-phase relay control AC automatic voltage stabilizer for lighting systems and household appliances. The series uses electronic automatic control with double sampling, double voltage stabilization and time-base integration for delay timing, supporting sensitive action, accurate timing, stable performance and a wide input voltage range.

Applications

  • Lighting systems.
  • Household appliances.

Performance

  • Input voltage: 160V-260V or 130V-260V.
  • Output voltage: 220V +/-10%.
  • Over-voltage protection: 246V +/-4V.
  • Delay time: long delay 3-7min, short delay 3-7s.
  • Frequency: 50Hz/60Hz.
  • Ambient temperature: -5°C to +40°C.
  • Dielectric strength: 1500V/min.
  • Insulation resistance: >=2MΩ.
