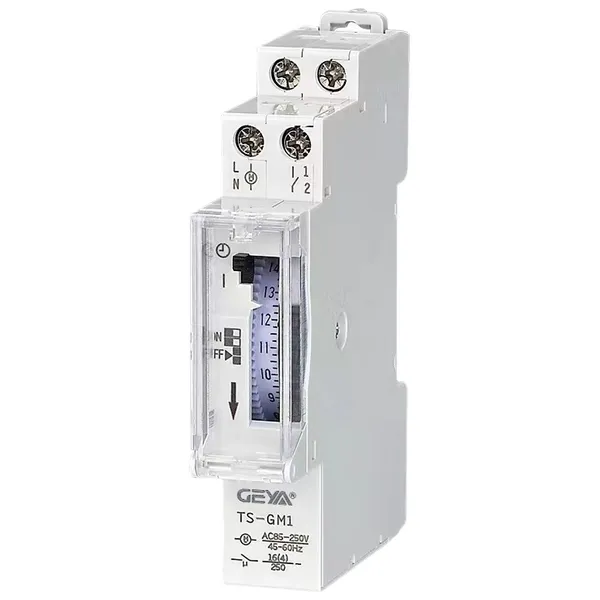

The TS-GM1 mechanical timer switch is an 18mm DIN rail daily timer for automatic scheduled switching of electrical equipment. It uses a quartz-controlled stepper motor and supports a daily program with 96 switching segments.
Model Versions
| Item | TS-GM1 | TS-GM1N |
|---|
| Indicator light | No | Yes |
| Operating voltage | 85-250VAC | 85-250VAC |
| Frequency | 45-60Hz | 45-60Hz |
| Number of channels | 1 | 1 |
| Width | 18mm | 18mm |
| Installation | DIN rail | DIN rail |
| Connection | Screw terminals | Screw terminals |
| Drive | Quartz-controlled stepper motor | Quartz-controlled stepper motor |
| Program | Daily program | Daily program |
| Power reserve | 3 days | 3 days |
| Incandescent/halogen lamp load | 1000W | 1000W |
| Shortest switching time | 15 min | 15 min |
| Number of switching segments | 96 | 96 |
| Stand-by consumption | About 0.5W | About 0.5W |
| Protection degree | IP20 | IP20 |
| Ambient temperature | -10°C to +50°C | -10°C to +50°C |
Switching Capacity
| Load condition | Capacity |
|---|
| 250V AC, cosφ=1 | 16A |
| 250V AC, cosφ=0.6 | 4A |
