Time Relay HHS5 Series Time Relays Series

Description

The HHS5 Series is a compact time relay range for delay switching, sequence control and motor-start timing circuits. It includes power-on delay, power-off delay, release delay, cyclic delay and star-delta timing versions, so the same socket-mounted format can be matched to different control-panel timing needs.

Common Parameters

Working power supply	Available AC and DC supply options by model, including DC24V and AC24V / AC220V / AC380V; selected versions also support AC110V, AC36V, DC110V or DC220V
Contact capacity	3A AC250V resistive
Rated working category	AC-15, Ue AC250V, Ie 3A
Conventional thermal current Ith	5A
Rated insulation voltage Ui	400V
Rated impulse withstand voltage Uimp	2.5kV
Installation	Socket-mounted relay body for device, panel or 35mm DIN rail installation with matching sockets and accessories
Operating temperature	-5°C to 40°C
Altitude	≤2000m
Humidity	Relative humidity up to 50% at 40°C; higher humidity allowed at lower temperature, with condensation protection when required

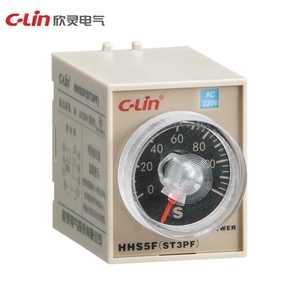

HHS5F

Function	Power-off delay
Delay range	1s, 5s, 10s, 30s, 60s, 120s, 180s; adjustable ranges also include 0.1s-1s, 0.2s-2s, 0.5s-5s, 1s-10s, 2.5s-30s, 5s-60s, 10s-120s and 15s-180s
Setting method	Potentiometer
Repeat error	≤5%; for adjustable ranges, Er <5% above 1s and Dr <100ms below 1s
Contact form	HHS5F: one delayed changeover contact with reset; HHS5F1: two delayed contacts; HHS5F2: one delayed contact plus one instantaneous contact
Dimensions	40.5×54×84mm
Alternative product	JSZ3F

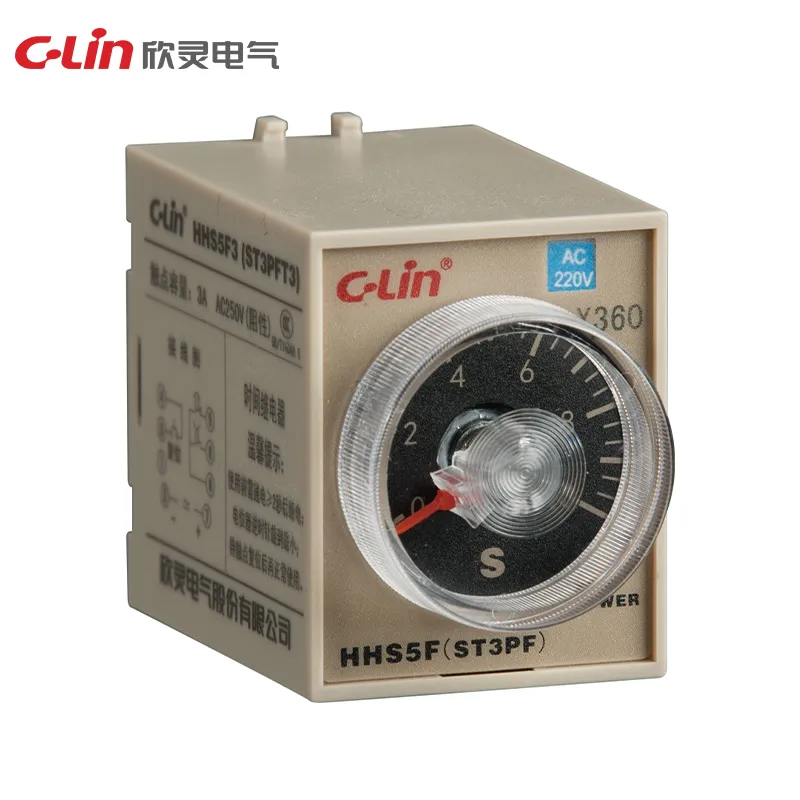

HHS5F3

Function	Long-range power-off delay
Delay range	180s, 300s, 600s, 1800s, 3600s; adjustable ranges include 60s-600s, 180s-1800s and 360s-3600s
Setting method	Potentiometer
Repeat error	≤5%; Er <5% above 1s and Dr <100ms below 1s
Contact form	One delayed changeover contact with reset
Dimensions	40.5×54×84mm

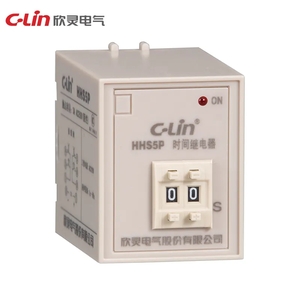

HHS5P

Function	Power-on delay
Delay range	Selectable ranges covering 0.01s-0.99s, 0.01s-9.99s, 0.1s-9.9s, 0.1s-99.9s, 1s-99s, 1s-999s, 0.1m-9.9m and 1m-99m
Repeat error	≤1%
Contact form	Two delayed contacts
Dimensions	40.5×54×75.5mm

HHS5PA

Function	Power-on delay
Delay range	0.1s-99h across six adjustable time bases
Repeat error	≤1%
Contact form	Type A: two delayed contacts; Type B: one delayed contact plus one instantaneous contact
Dimensions	40.5×54×75.5mm
Alternative products	ST3PA, ST3PC

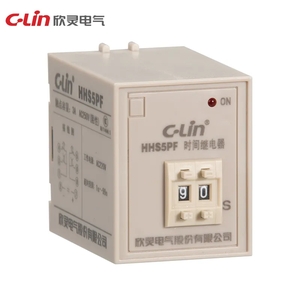

HHS5PF

Function	Power-off delay
Delay range	0.1s-9.9s, 1s-99s, 0.1s-99.9s and 1s-199s
Repeat error	≤5%
Contact form	Two delayed contacts
Dimensions	40.5×54×75.5mm

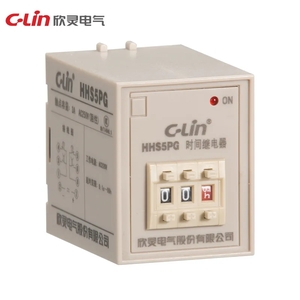

HHS5PG

Function	Release delay
Delay range	0.1s-99h across six adjustable time bases
Repeat error	≤1%
Contact form	Two delayed contacts
Dimensions	40.5×54×75.5mm

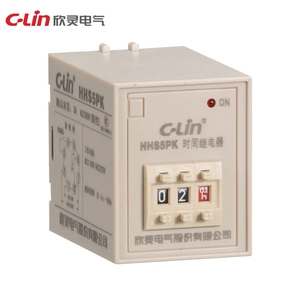

HHS5PK / HHS5PY

Function	HHS5PK: disconnection delay; HHS5PY: star-delta start delay
Delay range	0.1s-99h across six adjustable time bases
Repeat error	≤1%
Contact form	HHS5PK: one delayed contact; HHS5PY: one star-delta conversion contact
Dimensions	41×55×76mm
Alternative products	ST3PK, ST3PY

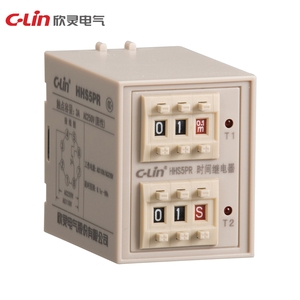

HHS5PR

Function	Cyclic delay
Delay range	0.1s-99h across six adjustable time bases
Repeat error	≤1%
Contact form	One delayed contact
Dimensions	40.5×54×75.5mm
Alternative product	ST3PR

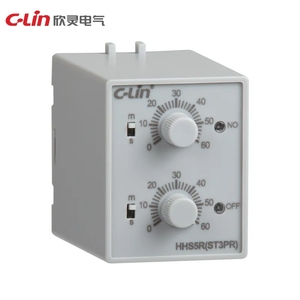

HHS5R

Function	Cyclic delay
Delay range	6s/60s, 10s/10min, 30s/30min and 60s/60min; adjustable ranges include 0.5s-6s/60s, 1s-10s/10min, 2.5s-30s/30min and 5s-60s/60min
Setting method	Potentiometer
Repeat error	≤1%; Er <1% above 1s and Dr <50ms below 1s
Contact form	One delayed changeover contact
Dimensions	40.5×54×86mm
Alternative product	JSZ3R
