HHS3 Series time relays provide fixed-range delay control for panels, machines and relay logic circuits. HHS3 focuses on standard power-on delay operation, while HHS3-M adds model choices for release delay and instantaneous-action delay outputs.
Common Parameters
| Repeat error | ≤1% |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|

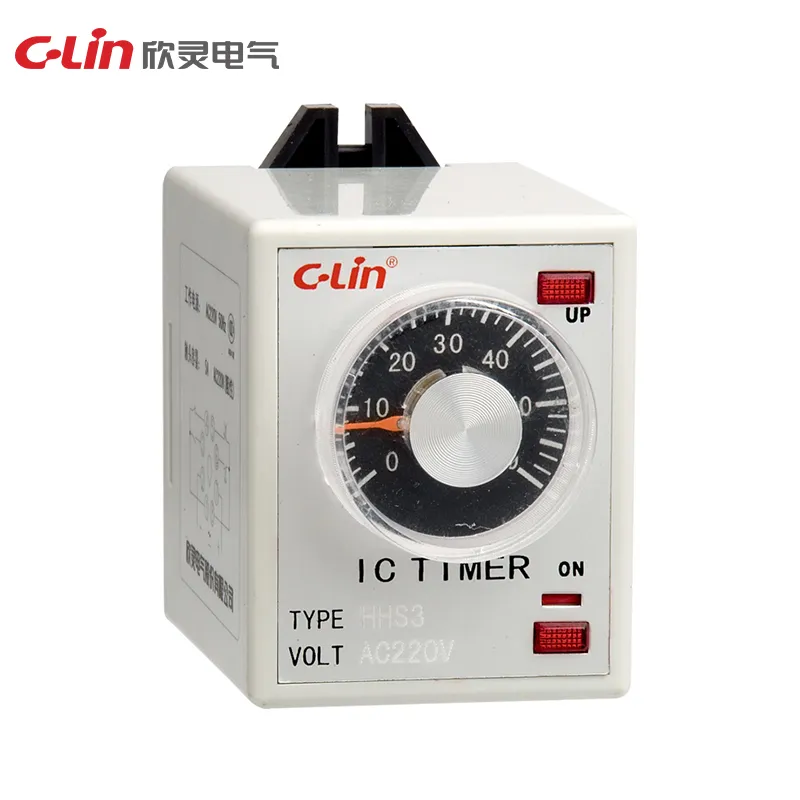

HHS3
| Operating power | AC380V, AC220V, AC110V, AC36V, AC24V, 50Hz; DC24V |
|---|
| Operating mode | Power-on delay |
|---|
| Delay range | 1s, 3s, 5s, 10s, 30s, 60s, 3m, 5m, 10m, 30m, 60m, 3h, 5h, 10h |
|---|
| Contacts | 2 delayed changeover contacts |
|---|
| Temperature range | -5°C to 40°C |
|---|
| Altitude | ≤2000m |
|---|
| Humidity | <50% RH at 40°C; higher humidity permitted at lower temperatures, such as 90% RH at 20°C, with protection against condensation |
|---|
| Installation | Panel type, rail type or fixed installation |
|---|
| Conventional heating current Ith | 5A |
|---|
| Rated insulation voltage Ui | 400V |
|---|
| Rated impulse withstand voltage Uimp | 2.5kV |
|---|
| Utilization category | AC-15, AC250V / 3A |
|---|

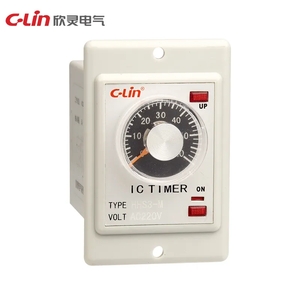

HHS3-M
| Working power supply | DC24V; AC24V, AC220V, AC380V |
|---|
| Delay range | 1s, 5s, 10s, 30s, 60s, 5min, 10min, 30min, 60min, 5h, 10h |
|---|
| Operating modes | HHS3-M power-on delay; HHS3G-M release delay; HHS3C-M power-on delay with instantaneous action |
|---|
| Contact form | HHS3-M and HHS3G-M delayed output; HHS3C-M one delayed and one instantaneous output |
|---|
| Dimensions | 57×87×92mm |
|---|
| Opening size | 51×63mm; 75.5-2×Φ4.5mm |
|---|
| Installation method | Panel type |
|---|
