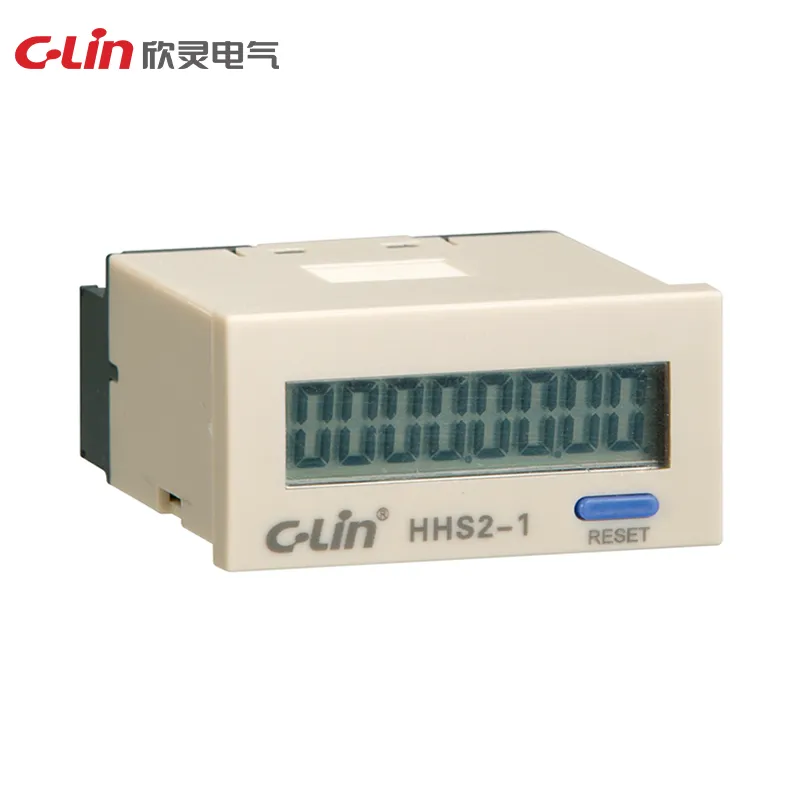

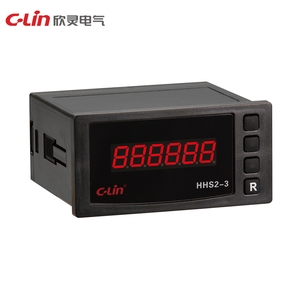

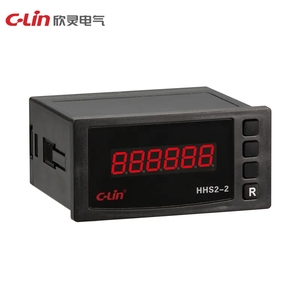

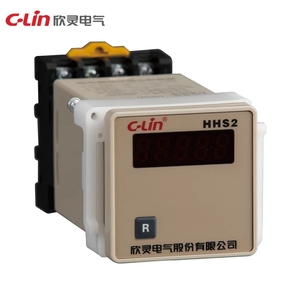

The Time Relay HHS2 Series is a six-digit digital time relay for long-range timing, cumulative timing and resettable timing control. HHS2 supports contact or level timing input, panel or terminal reset, 10-year power-loss hold and multiple mounting methods for control cabinets.
| Model | HHS2 |
|---|---|
| Working power supply | DC24V; AC24V, AC220V, AC380V |
| Timing range | 999.999s, 9999.99s, 99999.9s, 999999s, 9999m59s, 99h59m59s and other selectable ranges |
| Display mode | Six-digit digital display |
| Working mode | Automatic clearing or cumulative timing selection |
| Control mode | Level timing and contact timing |
| Reset mode | External terminal short-circuit reset or panel button reset |
| Power-loss hold | 10 years |
| Repetition error | ≤0.01% |
| Installation | Panel type, 35mm rail type or fixed mounting |
| Operating temperature | -5°C to +40°C |
| Altitude | ≤2000m |
| Pollution level | 3 |
| Ith | 5A |
| Ui | 400V |
| Uimp | 2.5kV |
