The Time Relay HHS18 Series is a slim relay range for timing functions in device-mounted or DIN-rail control circuits. HHS18 provides multi-mode power-on delay timing, HHS18F is used for power-off delay, and HHS18R provides cyclic delay operation.
Common Parameters
| Working power supply | DC24V; AC24V, AC220V, AC380V |
|---|
| Dimensions | 24.5×85.5×90.5mm |
|---|
| Installation | Device mounting or 35mm DIN-rail mounting |
|---|
| Operating temperature | -5°C to +40°C |
|---|
| Altitude | ≤2000m |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5kV |
|---|
| Contact rating | AC-15, Ue AC250V, Ie 3A |
|---|

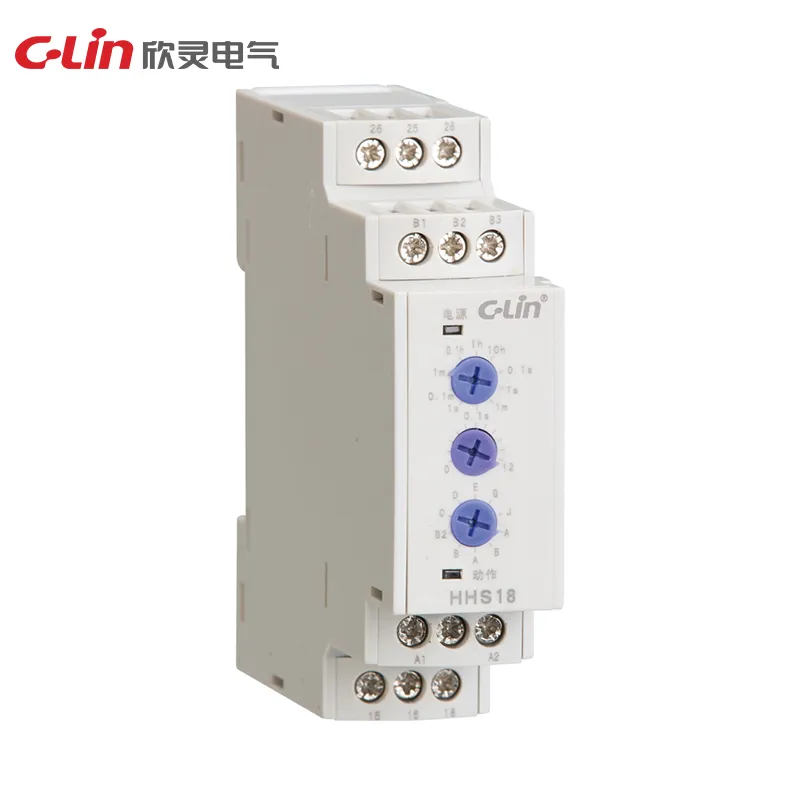

HHS18
| Working mode | Eight power-on delay modes |
|---|
| Delay range | 0.1s-120h |
|---|
| Repeat error | ≤1% for ranges over 1s; <50ms for ranges under 1s |
|---|
| Contact form | HHS18: two delayed contacts; HHS18-C: one delayed contact and one instantaneous contact |
|---|
| Contact capacity | 1A AC240V resistive load |
|---|
| Alternative products | H3DS, RE11, DHC19-M, NJB1-S |
|---|

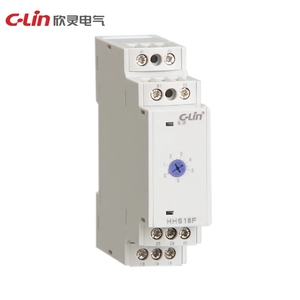

HHS18F
| Working mode | Power-off delay |
|---|
| Delay range | 0.1s-1s, 0.2s-2s, 0.5s-5s, 1s-10s, 3s-30s, 6s-60s, 12s-120s, 18s-180s |
|---|
| Repeat error | ≤5% for ranges over 1s; <100ms for ranges under 1s |
|---|
| Contact form | Two delayed changeover contacts with reset function |
|---|
| Contact capacity | 1A AC250V resistive load |
|---|

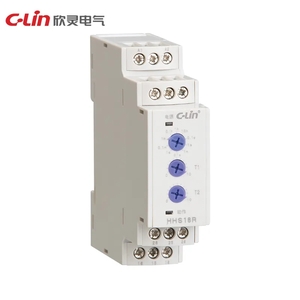

HHS18R
| Working mode | Cyclic delay |
|---|
| Delay range | 0.1s-100h |
|---|
| Repeat error | ≤1% for ranges over 1s; <50ms for ranges under 1s |
|---|
| Contact form | HHS18R: two delayed contacts; HHS18R-C: one delayed contact and one instantaneous contact |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|
| Alternative product | DHC19S-S |
|---|
