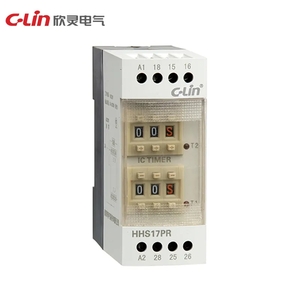

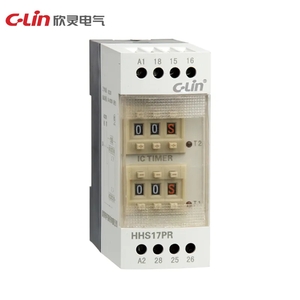

The Time Relay HHS17 Series is a compact relay range for power-on delay and cyclic delay control. HHS17P is used for standard power-on delay timing, while HHS17PR keeps the same hardware platform and changes the function to cyclic delay operation.
Common Parameters
| Working power supply | AC/DC24V; AC/DC100-240V |
|---|
| Delay range | 0.1s-99h with adjustable time base |
|---|
| Setting method | 2-digit setting with time-base DIP switch |
|---|
| Contact form | Two delayed changeover contacts |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|
| Dimensions | 33×78×68.5mm |
|---|
| Installation | Device mounting or 35mm DIN-rail mounting |
|---|
| Repeat error | ≤1% for ranges over 1s; <50ms for ranges under 1s |
|---|
| Operating temperature | -5°C to +40°C |
|---|
| Altitude | ≤2000m |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5kV |
|---|

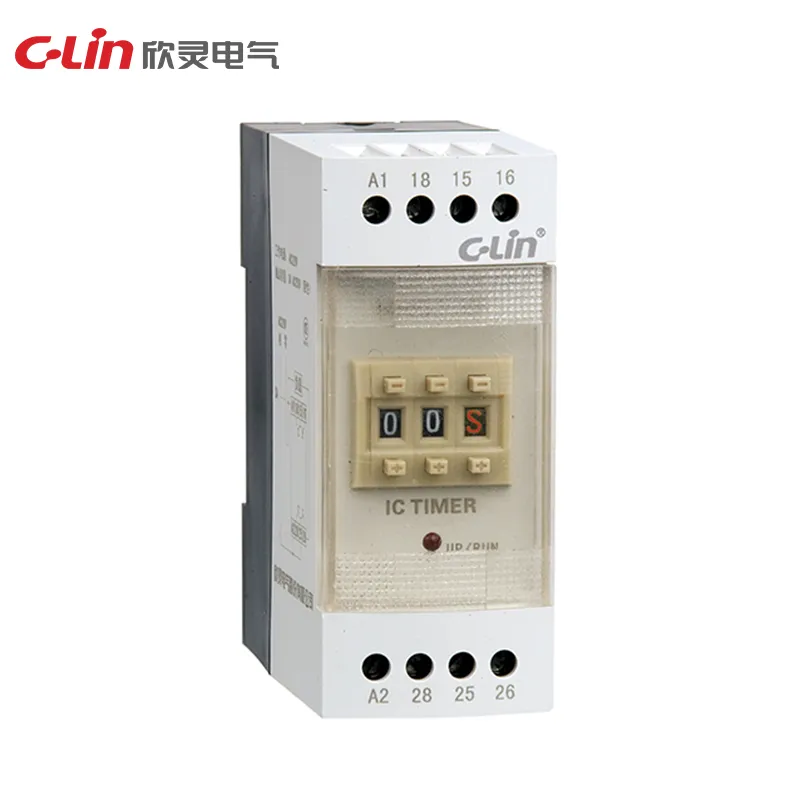

HHS17P
| Working mode | Power-on delay |
|---|
