The Time Relay HHS13 Series is a compact power-on delay relay range for DIN-rail control circuits. HHS13S and HHS13(ST6P) share small relay bodies and base mounting, while the contact arrangement, timing range selection and contact rating differ by model.
Common Parameters
| Operating mode | Power-on delay |
|---|
| Operating power supply | DC24V; AC24V, AC220V |
|---|
| Repeat error | ≤1% |
|---|
| Mounting method | Base mounting for 35mm DIN rail |
|---|
| Operating temperature | -5°C to +40°C |
|---|
| Altitude | ≤2000m |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5kV |
|---|

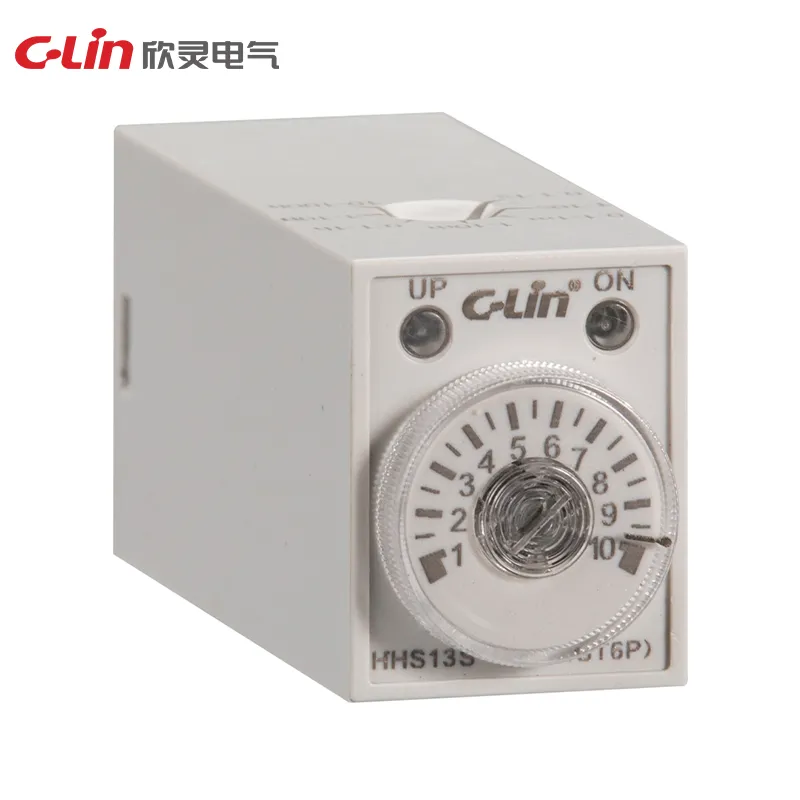

HHS13S
| Delay range | 0.01s-100h with selectable time base |
|---|
| Contact form | HHS13S: two delayed contact sets; HHS13S-1: four delayed contact sets |
|---|
| Contact capacity | HHS13S: 5A AC250V resistive load; HHS13S-1: 3A AC250V resistive load |
|---|
| Dimensions | 22×28×70mm |
|---|
| Mounting note | Matching base fixing hook uses the special HHS13S stainless steel hook |
|---|
| Ith | 5A |
|---|

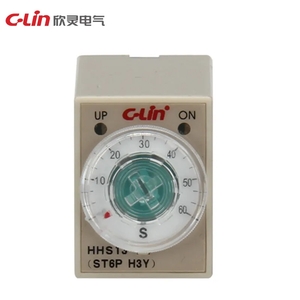

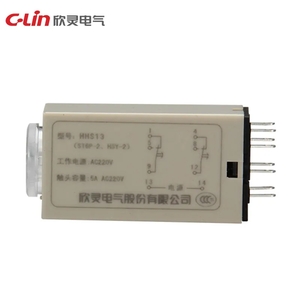

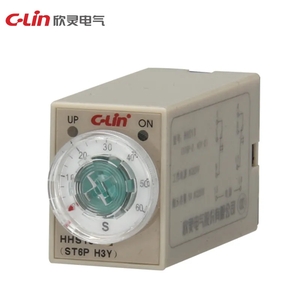

HHS13(ST6P)
| Time delay range | 1s, 5s, 10s, 30s, 60s, 120s, 180s, 1m, 3m, 5m, 10m, 30m, 60m, 3h, 5h |
|---|
| Contact form | HHS13: two delayed contact sets; HHS13-1: four delayed contact sets |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|
| Dimensions | 21×28×64mm |
|---|
