The Time Relay HHS11 Series is designed for panel-mounted power-on delay control in sequencing and delayed switching circuits. HHS11 and JS11S share digital timing and delayed contact output, while JS11S uses a more compact body and provides an extended adjustable timing option when no range is specified.
Common Parameters
| Operating mode | Power-on delay |
|---|
| Operating power supply | DC24V; AC24V, AC220V, AC380V |
|---|
| Contact configuration | Two sets of time-delay contacts and one set of instantaneous contact |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|
| Mounting method | Panel mounting |
|---|
| Cutout pattern | 4-Φ5 / 70×70mm, Φ81.2mm |
|---|

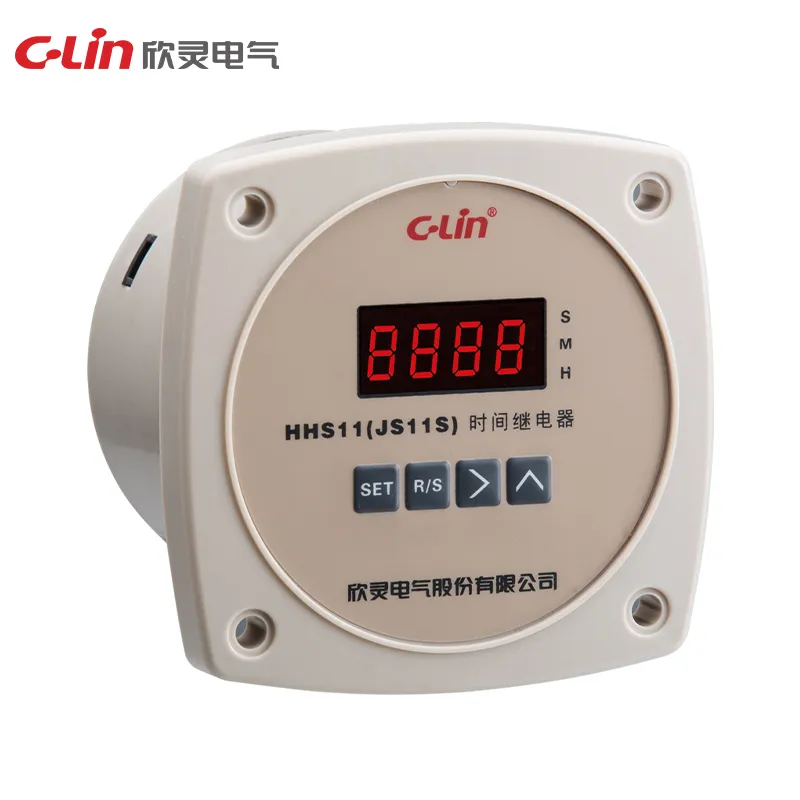

HHS11
| Delay range | 0.01s-99.99s, 1s-99m59s, 1m-99h99m |
|---|
| Timing method | Countdown with digital tube display |
|---|
| Repeat error | ≤1% for ranges over 1s; ≤50ms for ranges under 1s |
|---|
| Dimensions | 95×95×101mm |
|---|
| Operating temperature | -5°C to +40°C |
|---|
| Altitude | ≤2000m |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5kV |
|---|

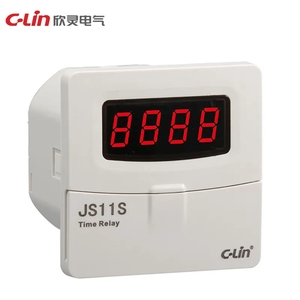

JS11S
| Time delay range | 0.01s-9.99s, 0.01s-99.99s, or 0.01s-99990h adjustable in hours, minutes and seconds |
|---|
| Dimensions | 85×85×83mm |
|---|
| Order note | If no delay time is specified, the 0.01s-99990h adjustable range version is supplied |
|---|
