The Time Relay HHS1 Series is a panel-mounted power-on delay relay range for long timing intervals and reset/pause control. HHS1 uses countdown timing, while HHS1-1 uses positive timing; both share the same 0.01s-99h99m range, digital display and two delayed contacts.
Common Parameters
| Working power supply | DC24V; AC24V, AC220V, AC380V |
|---|
| Delay range | 0.01s-99h99m |
|---|
| Repeat error | ≤1% |
|---|
| Working mode | Power-on delay |
|---|
| Contact form | Two delayed contacts with reset/pause function |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|
| Timing display | Digital tube display |
|---|
| Dimensions | 52×104×114mm |
|---|
| Opening size | 45×77mm |
|---|
| Installation | Panel mounting |
|---|
| Operating temperature | -5°C to +40°C |
|---|
| Altitude | ≤2000m |
|---|

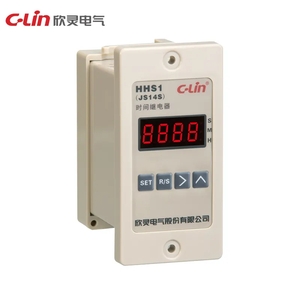

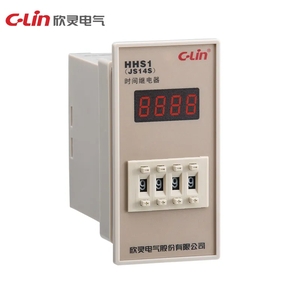

HHS1
| Timing method | Countdown timing |
|---|

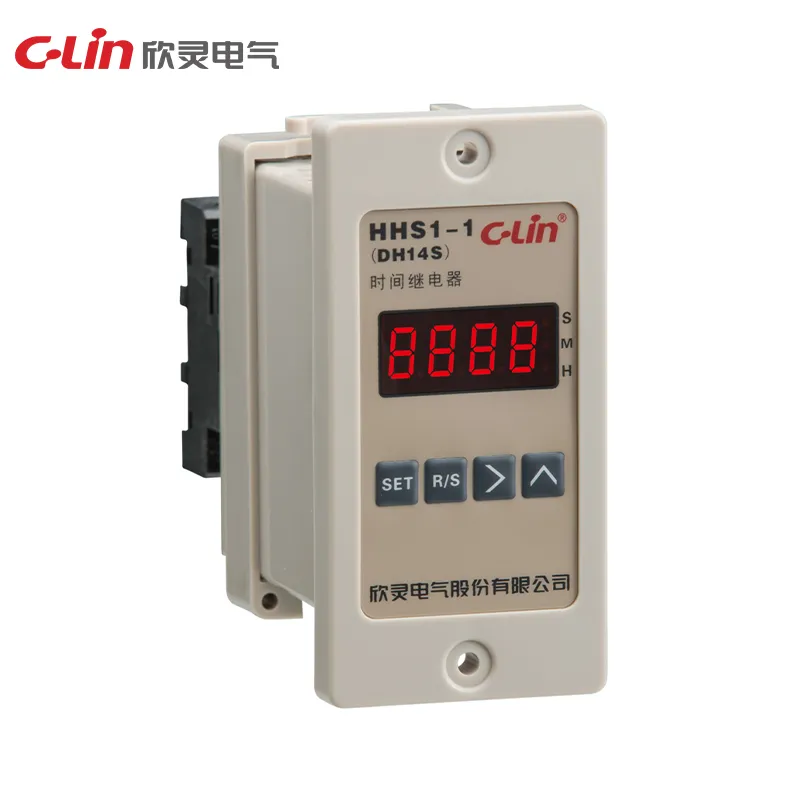

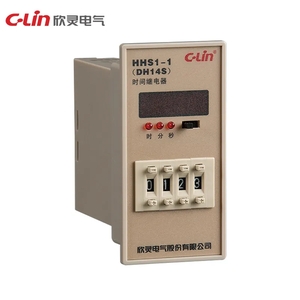

HHS1-1
| Timing method | Positive timing |
|---|
