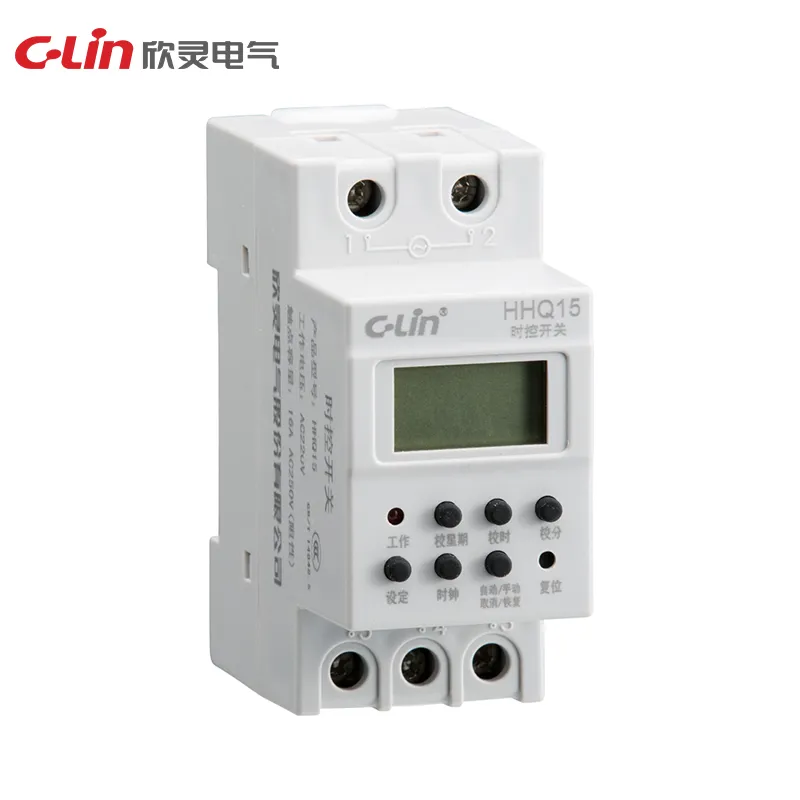

HHQ15 Series time controllers provide compact rail-mounted scheduled switching for lighting and equipment circuits. The controller includes daily switch programming, built-in lithium battery backup and a 16A relay output in a 36mm-wide body.
| Model | HHQ15 |
|---|---|
| Working Power Supply | AC220V, 50Hz |
| Time Control Range | 1 minute to 168 hours |
| Timing Error | ≤±1s/day |
| Contact Capacity | 16A AC250V resistive load |
| Program Capacity | 16 switch groups per day |
| Battery | Built-in high-energy lithium battery |
| Dimensions | 36 × 78 × 68.5mm |
| Installation Method | 35mm rail mounting |
