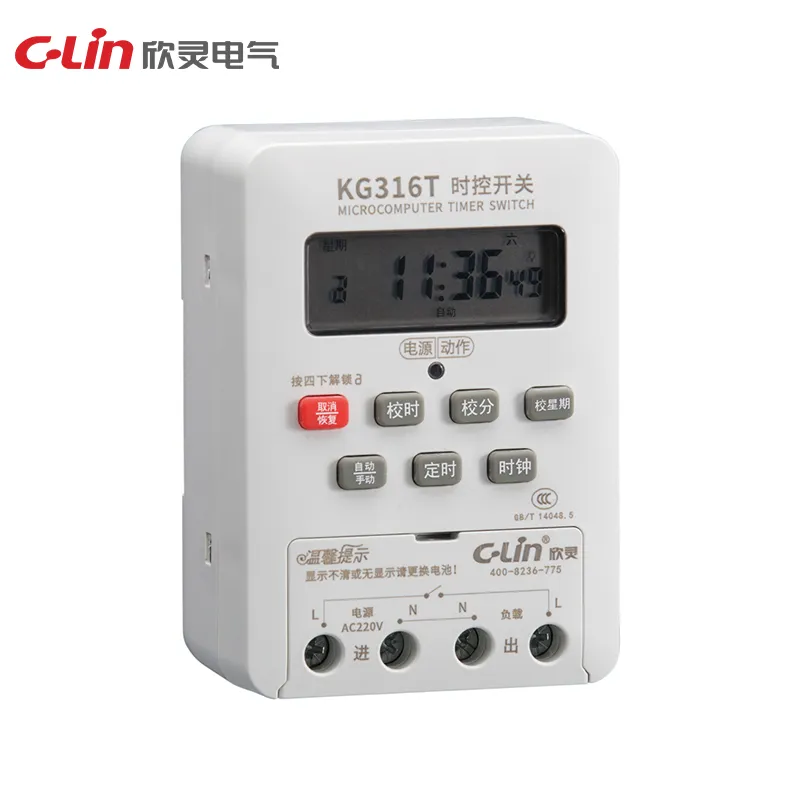

KG316T time control switches provide daily scheduled switching for lighting and equipment circuits. The controller supports 16 programmed switch groups per day, battery backup and several mounting methods for panel or field installation.
| Model | KG316T |
|---|---|
| Working Power Supply | AC220V or AC380V, 50/60Hz |
| Time Control Range | 1 minute to 168 hours |
| Timing Error | ≤±2s/day |
| Contact Capacity | ≤6kW resistive load |
| Program Capacity | 16 groups/day, with keypad lock |
| Rated Insulation Voltage Ui | AC380V |
| Rated Impulse Withstand Voltage Uimp | 2.5kV |
| Power Consumption | <5W |
| Battery | One 1.5V No. 7 battery |
| Dimensions | 71 × 105 × 48mm |
| Installation Method | Device mounting, rail mounting or wall mounting |
