THC-91 series timer switches are used for automatic load control in lighting and other scheduled switching applications. The series includes THC-9116 programmable timer switches and THC-9160 light-control timer switches, with THC-9160 combining adjustable ambient-light control with programmable timing.
Covered Models
| Model | Function | Available current versions |
|---|
| THC-9116 | Programmable timer switch | 16A version |
| THC-9160 | Light control + timer switch | 16A, 20A, 25A and 30A versions |

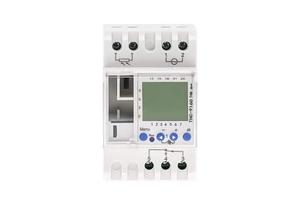

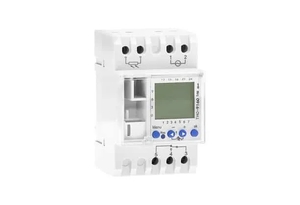

THC-9160 Technical Characteristics
| Voltage range | AC/DC85-265V, 50/60Hz |
|---|
| Timing accuracy | ≤1s/day at 25°C |
|---|
| Program capacity | 44 ON + 44 OFF |
|---|
| Power consumption | 4VA max. |
|---|
| Ambient light setting | <5-150 lux, adjustable |
|---|
| Minimum switching time | 1 minute |
|---|
| Contact | 1NO + 1NC / 1NC |
|---|
Application Notes
- THC-9160 is suitable where time scheduling and ambient-light control are both required.

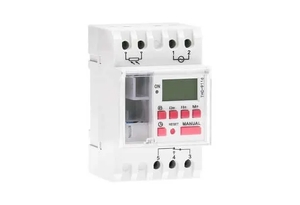

- THC-9116 is included in the same series as a programmable timer-switch version for scheduled load control.
