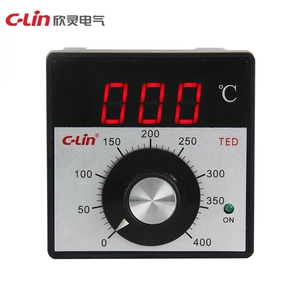

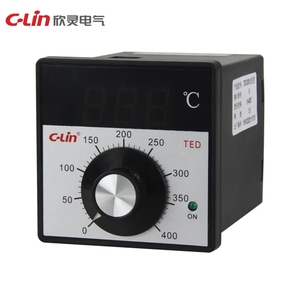

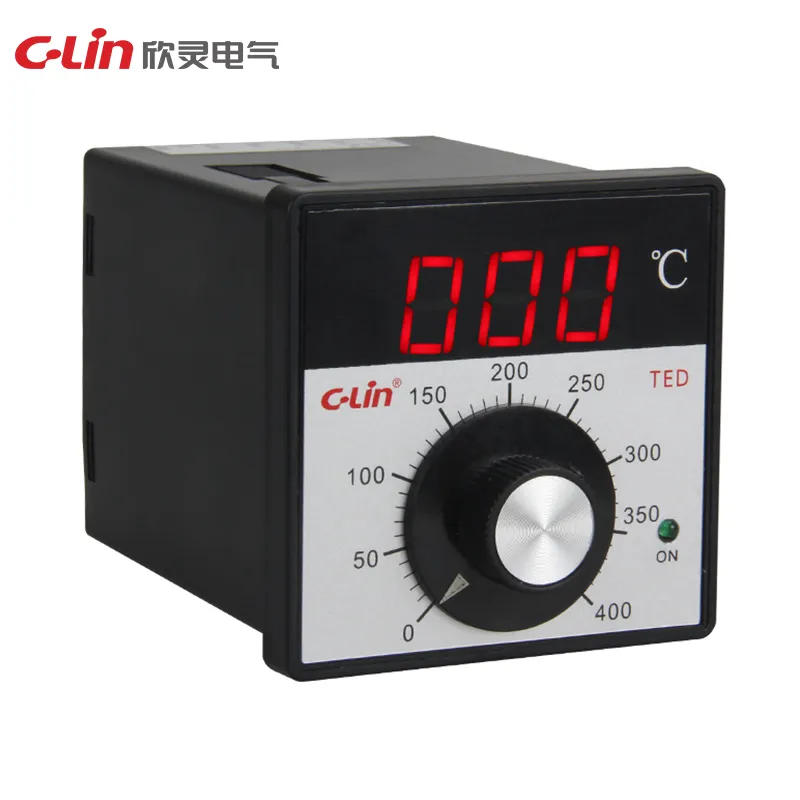

TED Series temperature indication controllers provide panel-mounted temperature display and relay output control with improved class 1.5 measurement accuracy. TED-2001 Improved is suited to applications that need potentiometer setting and a 72×72mm controller format.
| Model | TED-2001 Improved |
|---|---|
| Input Signal | K or E thermocouple; Cu50 thermal resistor |
| Measurement Error | ≤ class 1.5 |
| Control Mode | Two-position relay contact on/off control; time-proportional relay contact on/off control |
| Setting Mode | Potentiometer setting |
| Power Supply | AC220V, AC380V |
| Dimensions | 72 × 72 × 110mm |
| Panel Cutout | 68 × 68mm |
| Installation Method | Panel mounting |
