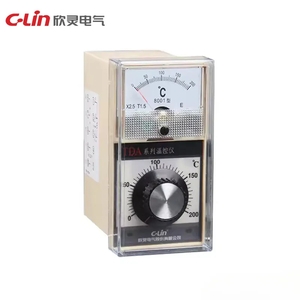

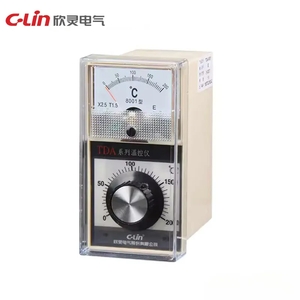

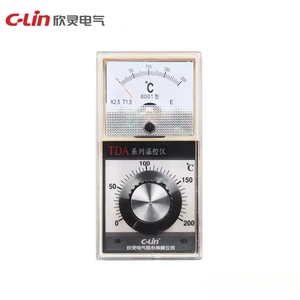

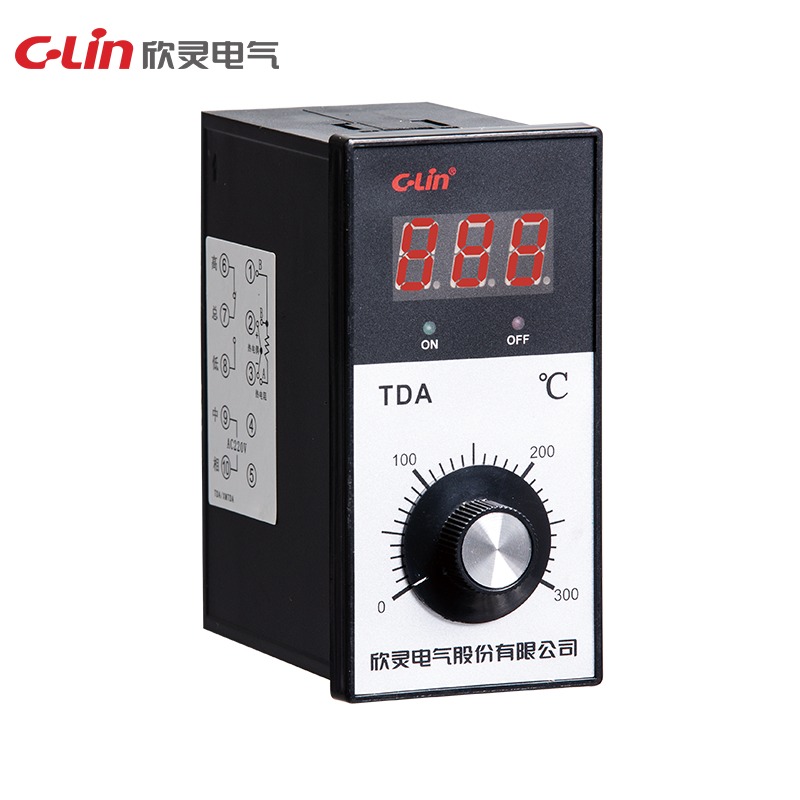

TDA Series temperature indication controllers provide analog setpoint adjustment and relay output control for panel-mounted temperature applications. The controller supports thermocouple and RTD inputs, with a 60×120mm front format for larger panel displays.
| Model | TDA |
|---|---|
| Input Signal | K or E thermocouple; Cu50 thermal resistor |
| Measurement Error | ≤ class 2.5 |
| Control Mode | Two-position relay contact on/off control; time-proportional relay contact on/off control |
| Setting Mode | Potentiometer setting |
| Power Supply | AC220V, AC380V |
| Dimensions | 60 × 120 × 90mm |
| Panel Cutout | 55 × 115mm |
| Installation Method | Panel mounting |
