SVC-H/O/P Luxurious Type AC Voltage Stabilizer

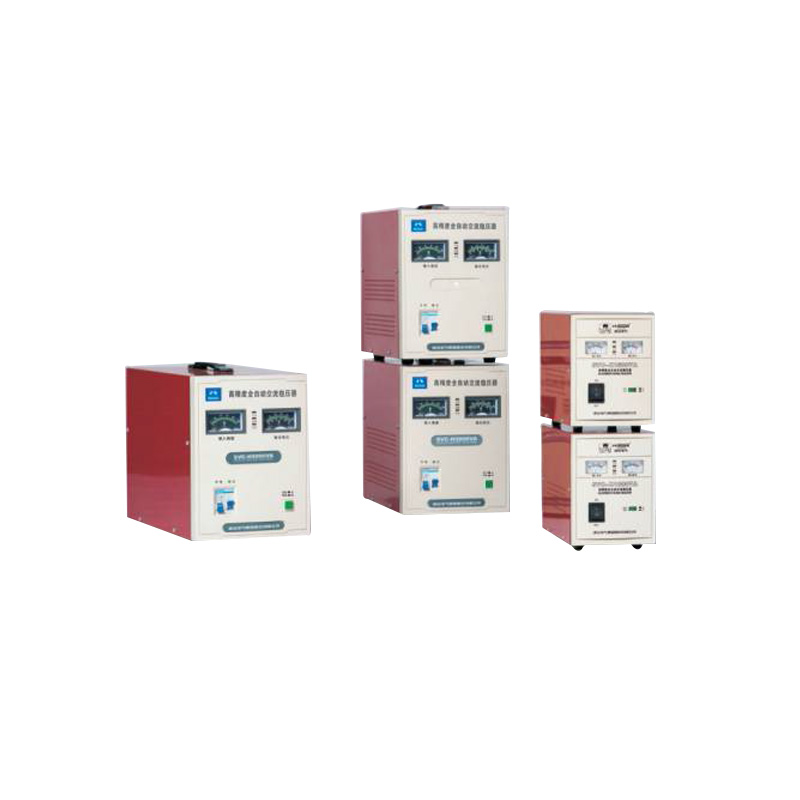

SVC-H-O-P AC Voltage Stabilizer Main Photo
SVC-H-O-P AC Voltage Stabilizer Blue Type Photo

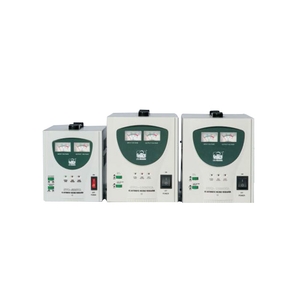

SVC-H-O-P AC Voltage Stabilizer Green Type Photo

Description

SVC-H/O/P is a single-phase luxurious type AC voltage stabilizer with high-accuracy automatic voltage regulation. It keeps the core characteristics of the SVC stabilizer family while adding a refined appearance, over-voltage and under-voltage protection, and selectable delay time for practical power protection applications.

Performance

  • Input voltage: single phase 150V-260V or 120V-260V.
  • Output voltage: single phase 220V and 110V.
  • Accuracy: 220V +/-3% and 110V +/-6%.
  • Frequency: 50Hz/60Hz.
  • Adjusting time: 1s when input voltage floats within 10%.
  • Efficiency: >90%.
  • Over-voltage protection: 246V +/-4V.
  • Delay time: long delay 5min +/-2min, short delay 5s +/-2s.
  • Ambient temperature: 5°C to +40°C.
  • Relative humidity: <=90%.
  • Waveform distortion: synchronizing input waveform.
  • Load power factor: 0.8.
  • Dielectric strength: 1500V/min.
  • Insulation resistance: >=2MΩ.
