Description

SUNTEC oil pump families in this group cover J, AT3, AS, AN, and AL ranges for oil burner fuel delivery. The tables retain model numbers, article numbers, electrical data, pressure limits, temperature ranges, suction or return pressure values, and connection-related service information by family.

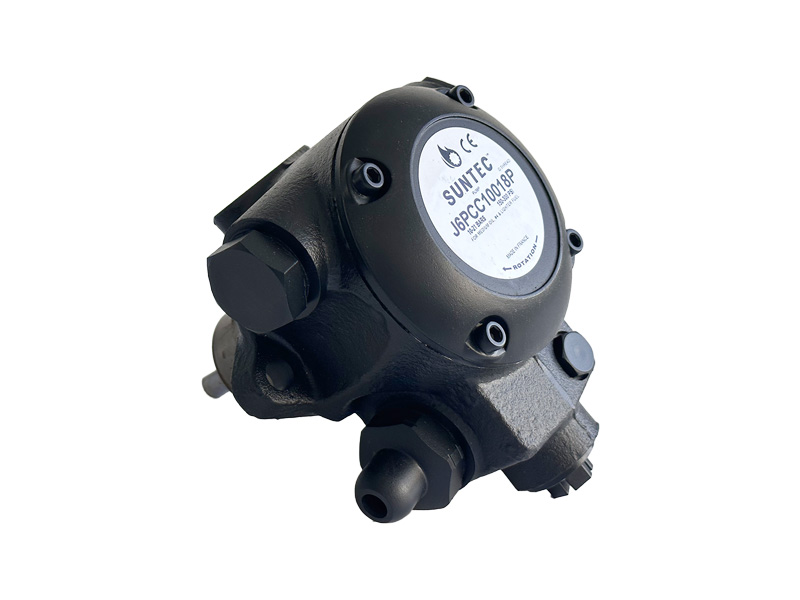

SUNTEC Oil Pump, Pump J series

Model Article No. Pressure range Oil temperature Inlet pressure Return pressure Suction height Torque (@ 45 rpm)
J6PCC 1001 221 23 117 10 - 21 bars 0 - 90°C in the pump 1,5 bars max 1,5 bars max 0,45 bars max 0,30 N.m
J7PCC 1001 221 23 119

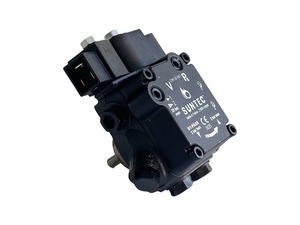

SUNTEC Oil Pump, Pump AT3 series

Model Article No. Voltage Frequency Consumption Maximum pressure
AT345A 9559 221 23 146 220-240 110-120 24 V 50Hz/60Hz 9 W max. 25 bars

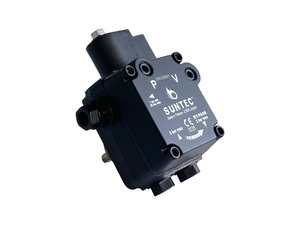

SUNTEC Oil Pump, Pump AS series

Model Article No. Voltage Frequency Consumption Maximum pressure
AS47A 1536 221 23 100 220-240 110-120 24 V 50Hz/60Hz 9 W max. 25 bars
AS47A 7432 221 23 101
AS47C 1538 221 23 102
AS47B1537 221 23 164

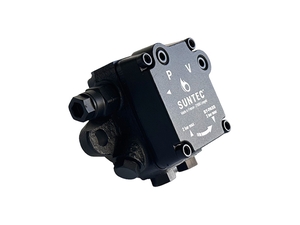

SUNTEC Oil Pump, Pump AN series

Model Article No. Voltage Frequency Consumption Maximum pressure
AN67A 7238 221 23 108 220-240 110-120 24 V 50Hz/60Hz 9 W max. 25 bars
AN67C 7233 221 23 099
AN77A 7255 221 23 111
AN77A 7256 221 23 112

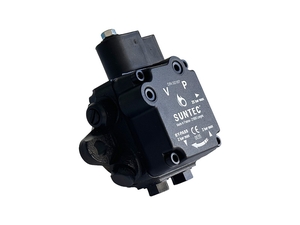

SUNTEC Oil Pump, Pump AL series

Model Article No. Voltage Frequency Consumption Maximum pressure
AL75C 9411 221 23 150 220-240 110-120 24 V 50Hz/60Hz 9 W max. 25 bars
AL95C 9412 221 23 149
