Sudick XTSF and XT ignition transformers cover mechanical and electronic high-voltage ignition formats for burner service. The group keeps one-pole, two-pole, compact electronic, and plug-in or wiring options together while preserving the electrical and dimensional differences by model.
| Type | Article No. | Intermittence | Supply voltage (V) | Frequency (Hz) | Input current (A) | High voltage (V) | Output current (mA) | Dimensions (mm) | Ignition distance (mm) | Output type | Input type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XTSF-8 | 231 20 310 | 33% 3min | 220 | 50 | 0, 1.2 | 8,000 | 20 | 110*86*68 | 3~6 | One pole output HV. | Wiring, Plug-in |
| XTSF-10 | 231 20 309 | 33% 3min | 220 | 50 | 0, 1.2 | 2*5,000 | 20 | 110*86*68 | 3~6 | Two pole output HV | Wiring, Plug-in |
| XT-15B | 232 20 103 | 33% 3min | 220/240 | 50/60 | 0, 0.25 | 1*15000 | 40 | 63.5*86*38 | 3~5 | ||
| XT-15A | 232 20 102 | 33% 3min | 220/240 | 50/60 | 0, 0.25 | 2*7,500 | 40 | 63.5*86*38 | 3~5 |

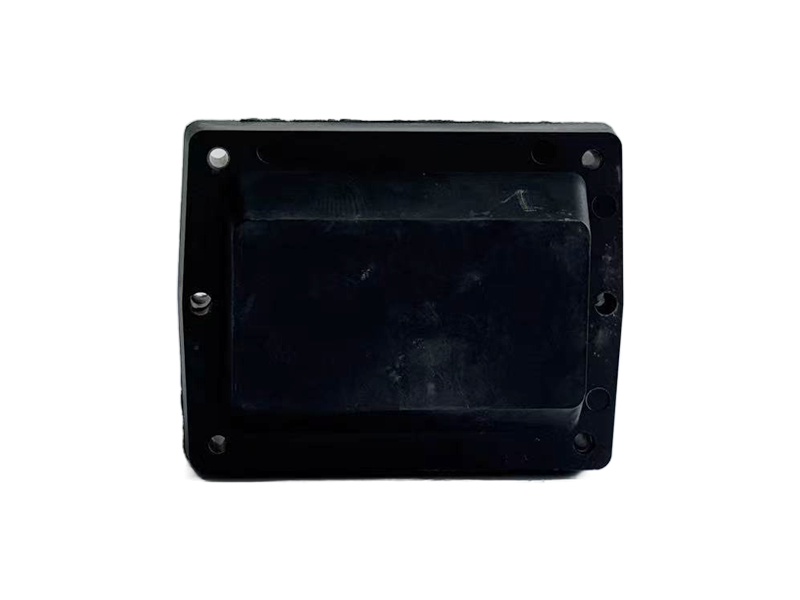

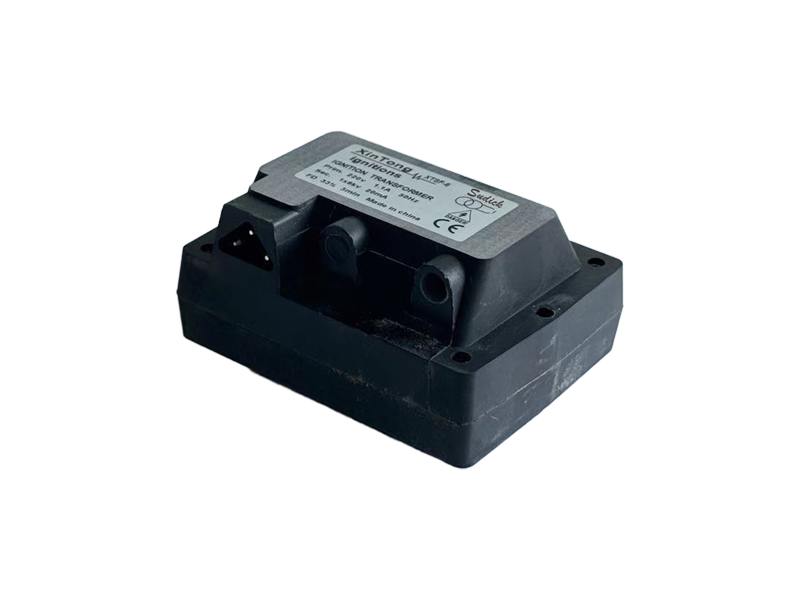

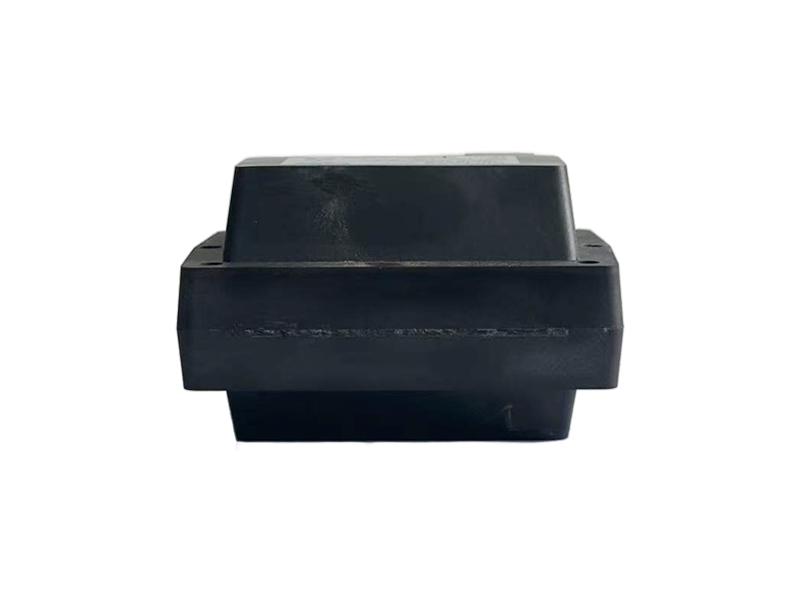

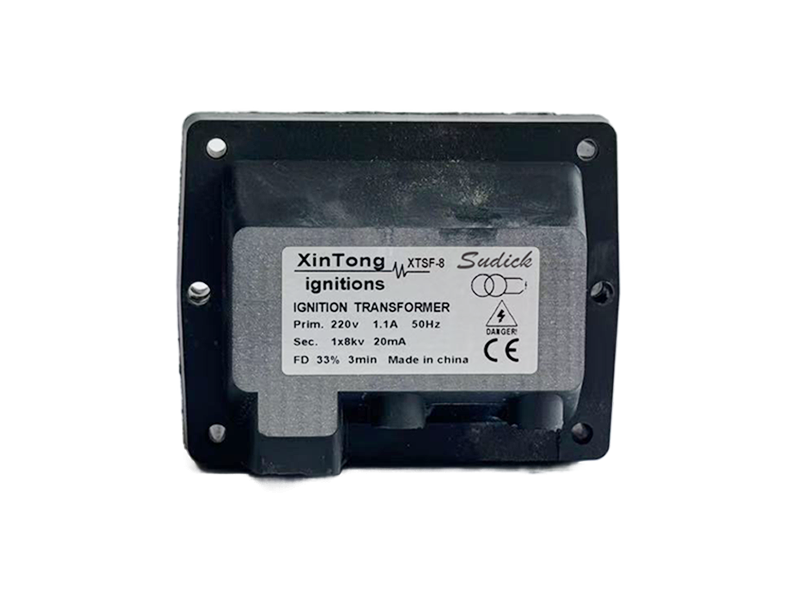

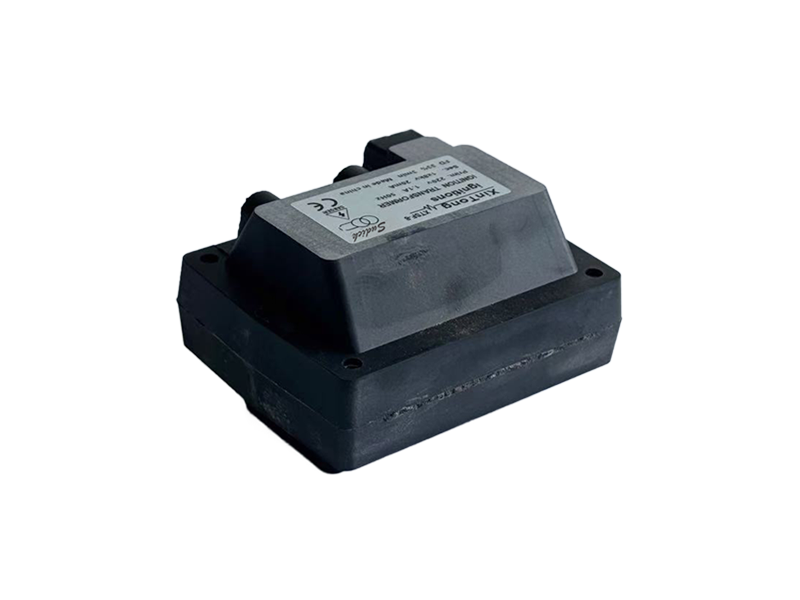

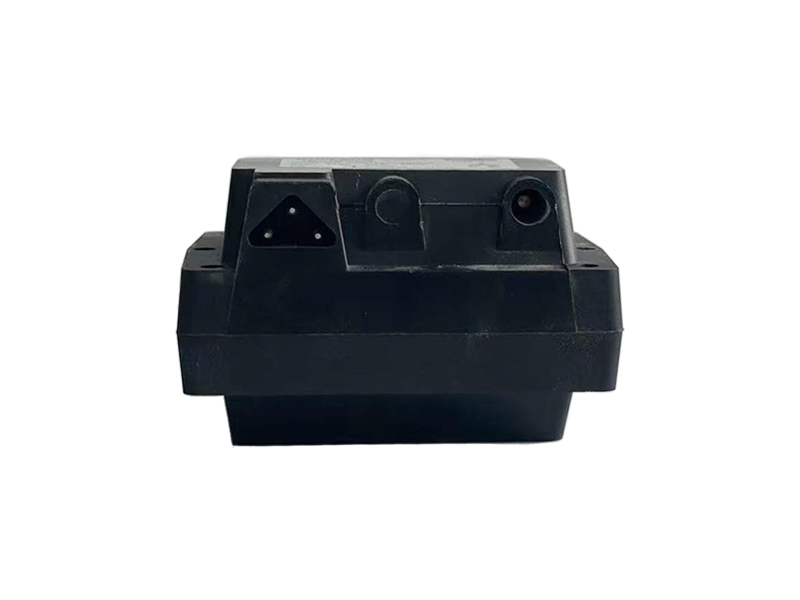

Sudick XTSF-8 Ignition Transformer

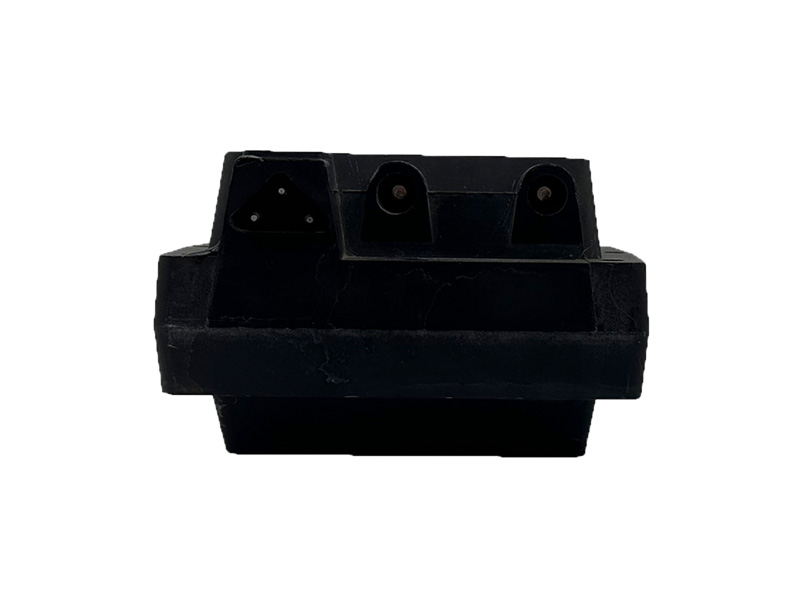

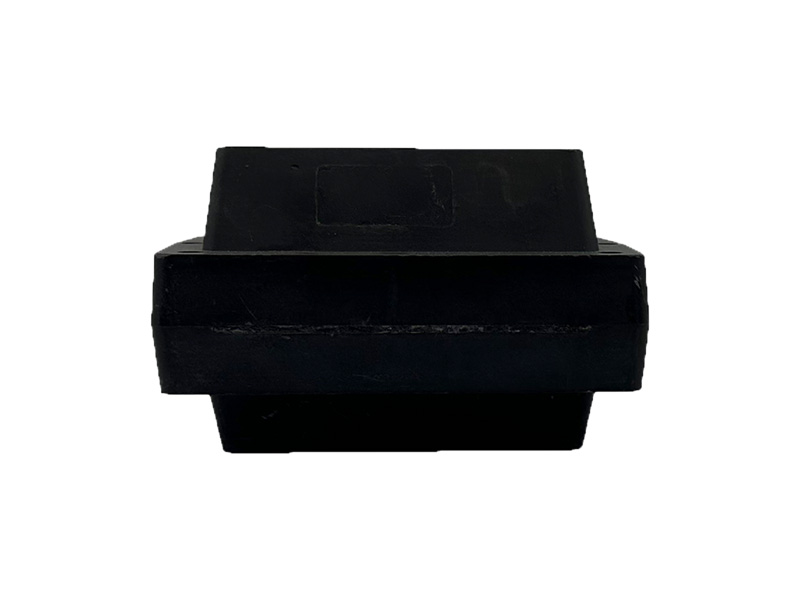

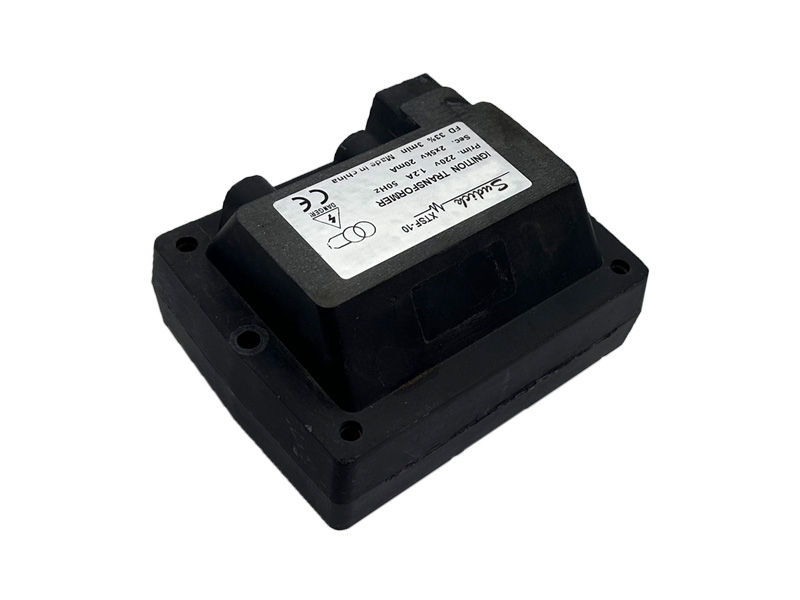

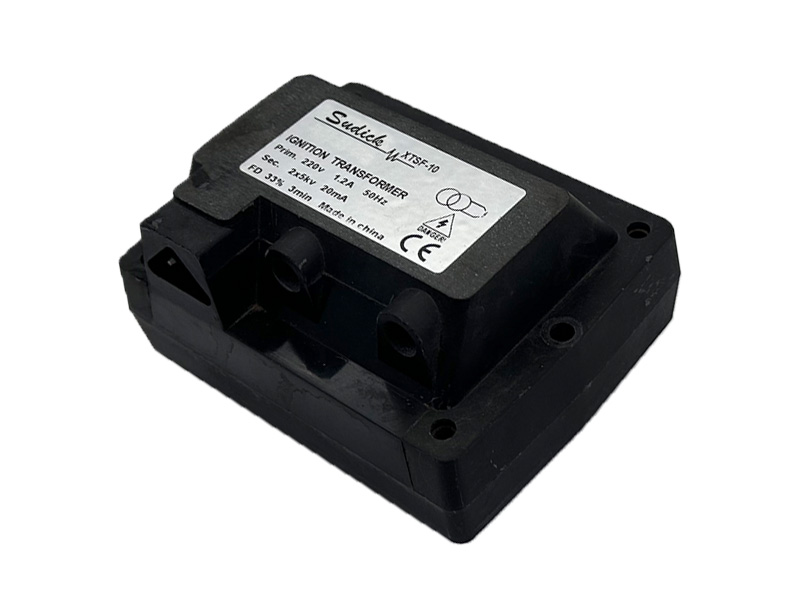

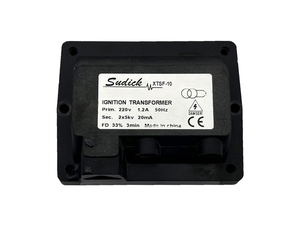

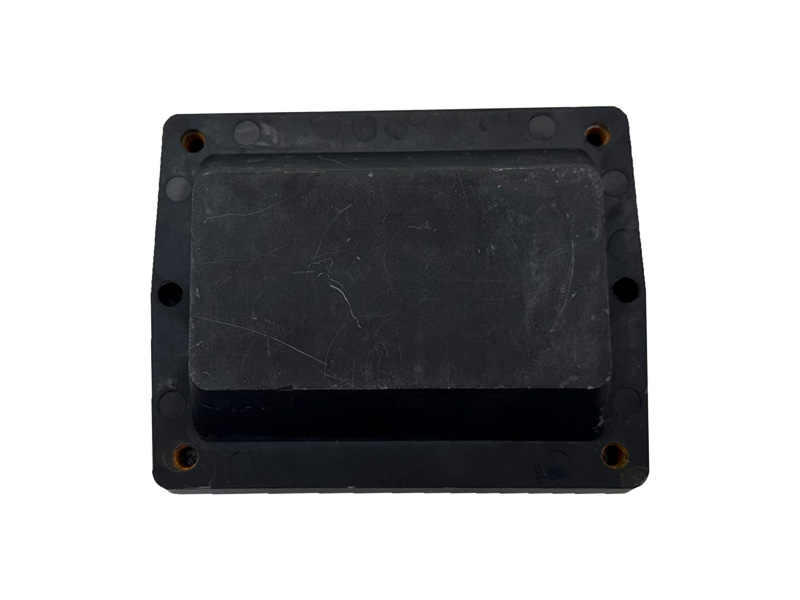

Sudick XTSF-10 Ignition Transformer

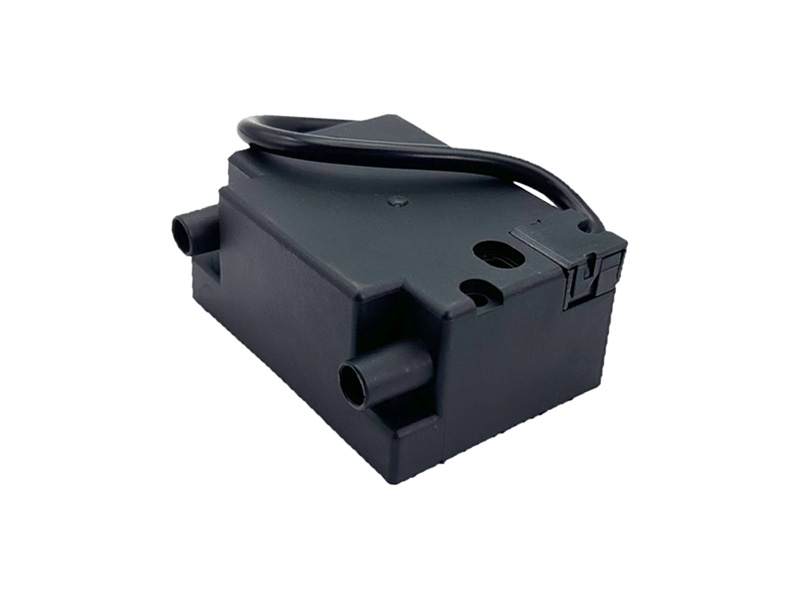

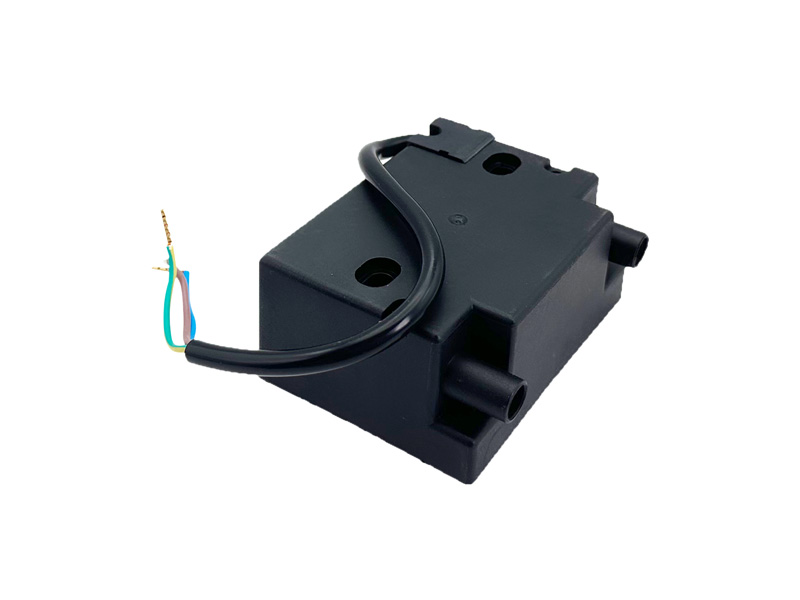

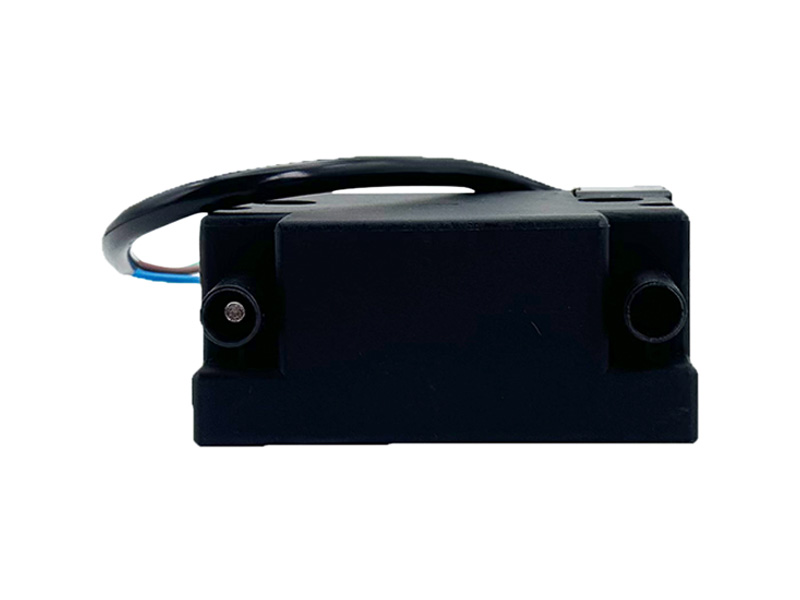

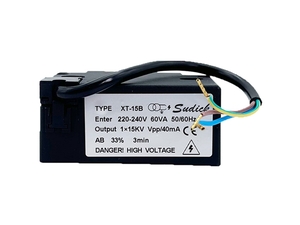

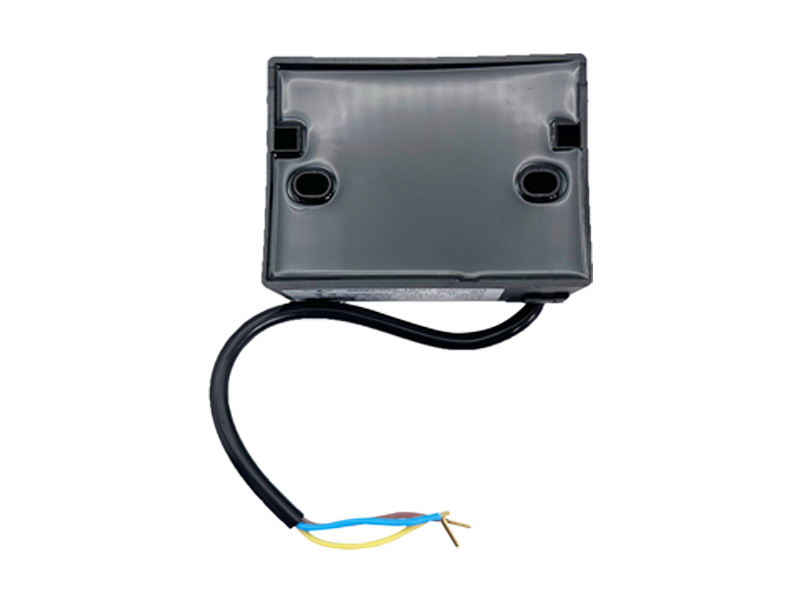

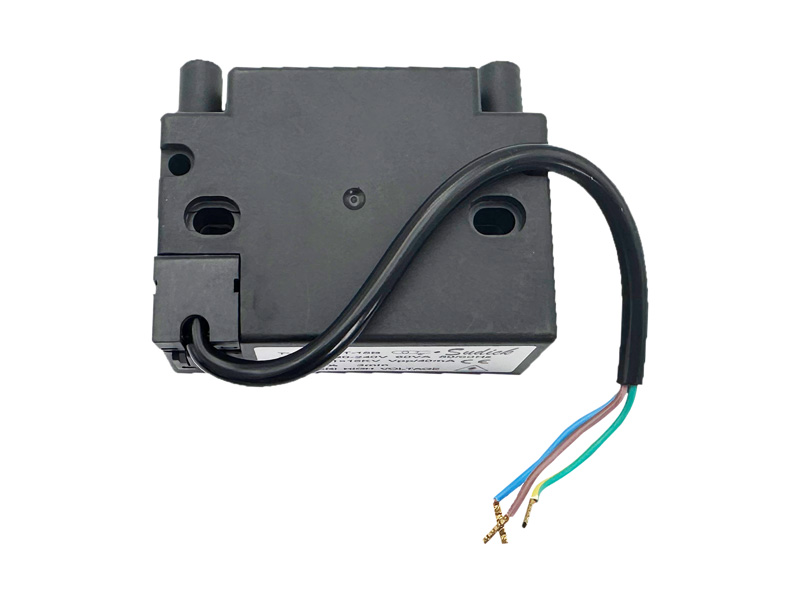

Sudick XT-15B Ignition Transformer

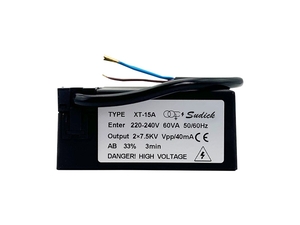

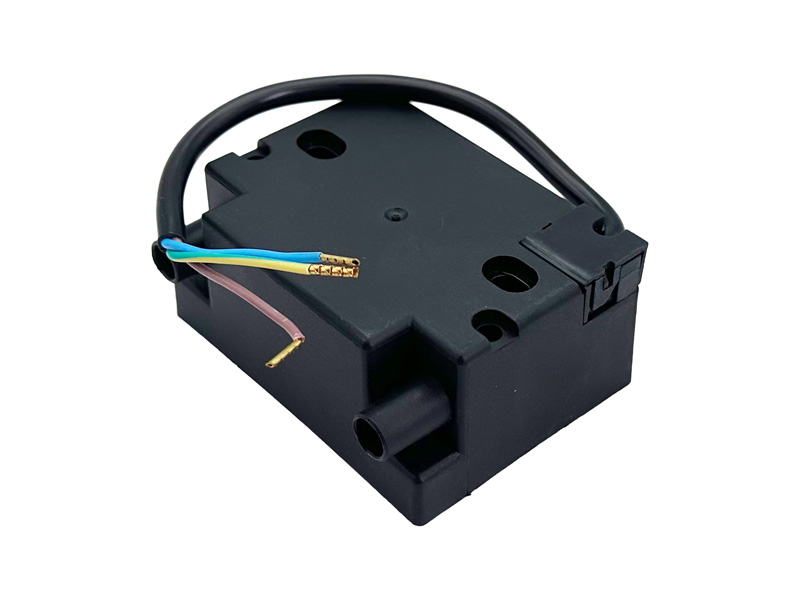

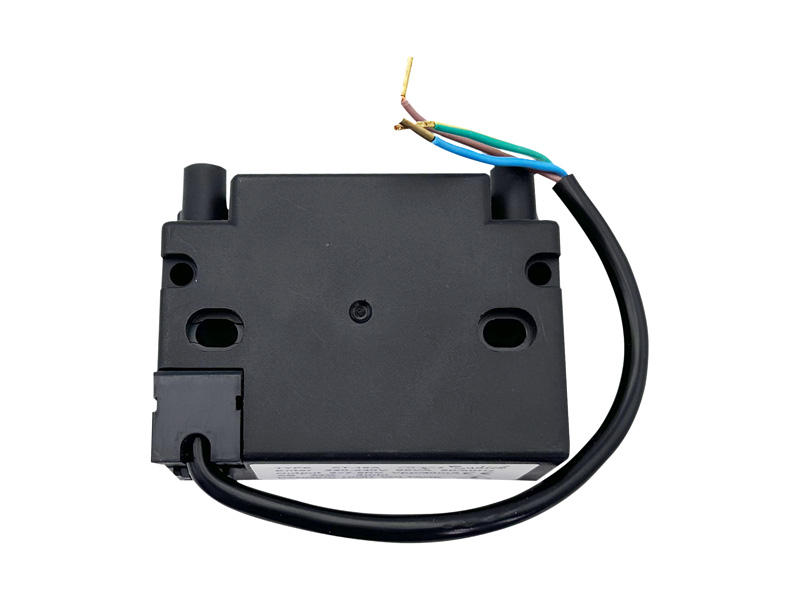

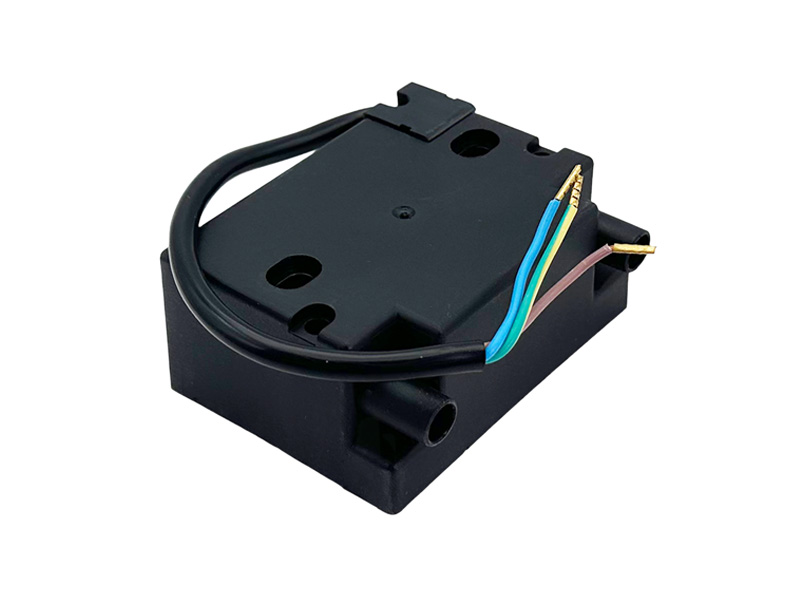

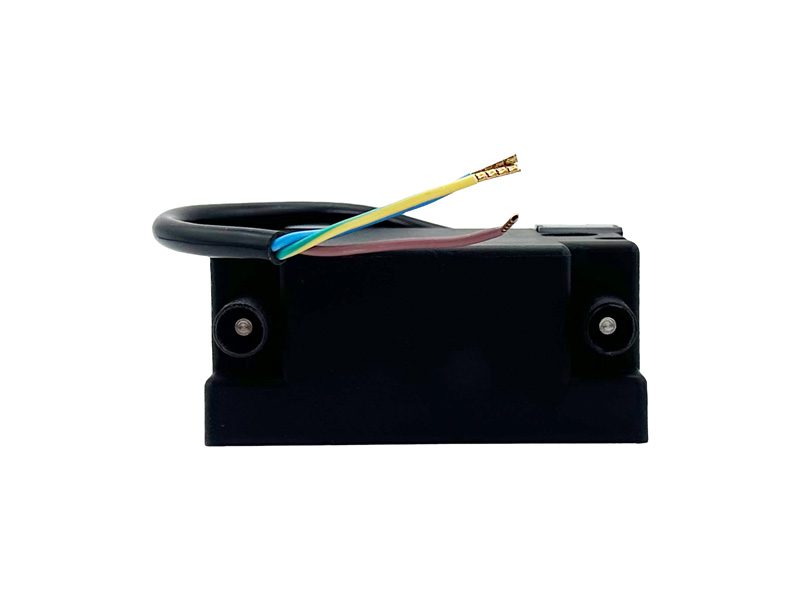

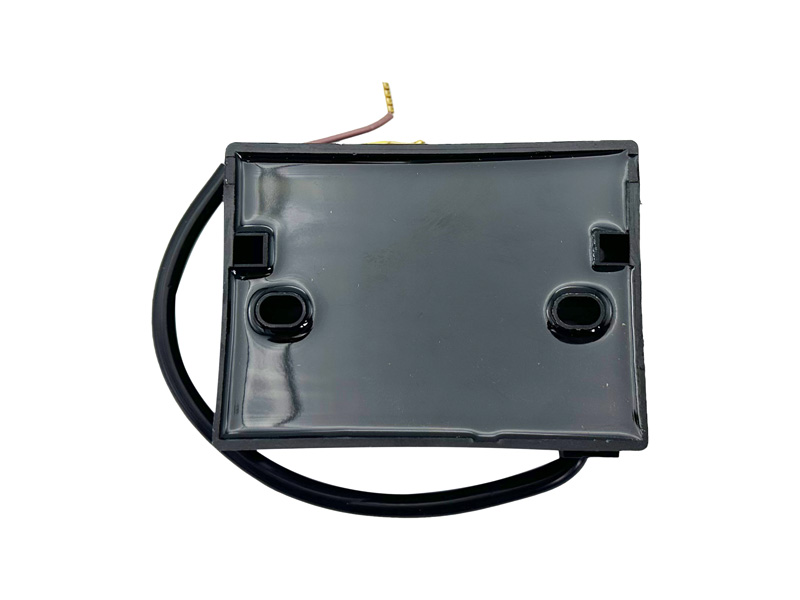

Sudick XT-15A Ignition Transformer
