Description

SUDICK GW A5 and A6 compact pressure switches cover common burner pressure-supervision ranges in a compact housing format. The two groups share the same nominal setting ranges, while the A5 table keeps article numbers for each model and the A6 table preserves the corresponding switching-difference values.

GW A6 Compact Pressure Switches

Model Article No. Setting range (mbar) Switching diff p↓ min (mbar)
GW 3 A6 - 0.7-3 ≤0.7
GW 10 A6 - 2-10 ≤1
GW 50 A6 - 5-50 ≤2.5
GW 150 A6 - 5-150 ≤5
GW 500 A6 - 100-500 ≤15

GW A5 Compact Pressure Switches

Model Article No. Setting range (mbar) Switching diff p↓ min (mbar)
GW 3 A5 241 23 003 0.7-3 ≤0.7
GW 10 A5 241 23 004 2-10 ≤1
GW 50 A5 241 23 005 5-50 ≤2.5
GW 150 A5 241 23 006 5-150 ≤5
GW 500 A5 241 23 007 100-500 ≤15

Product Detail Images

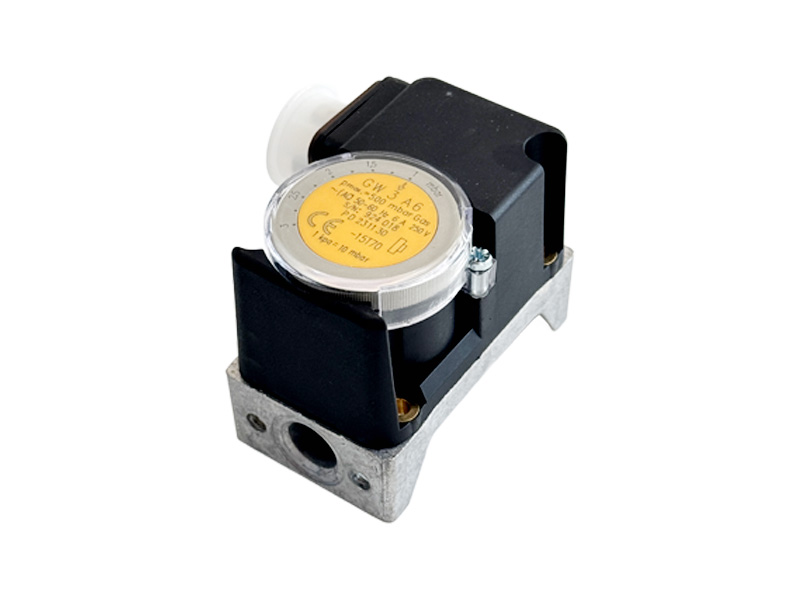

SUDICK GWA6 Pressure Switch

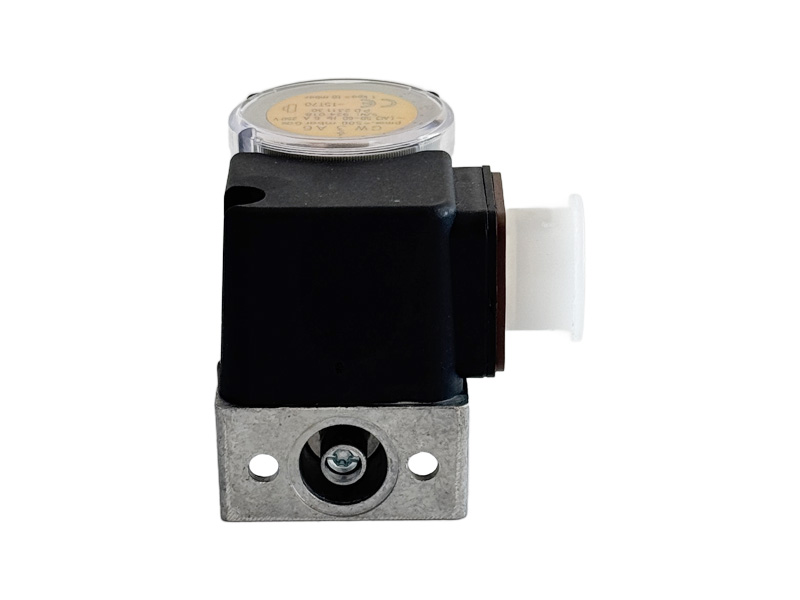

SUDICK GWA6 Pressure Switch detail view 2
Compact pressure switch housing and mounting bracket.

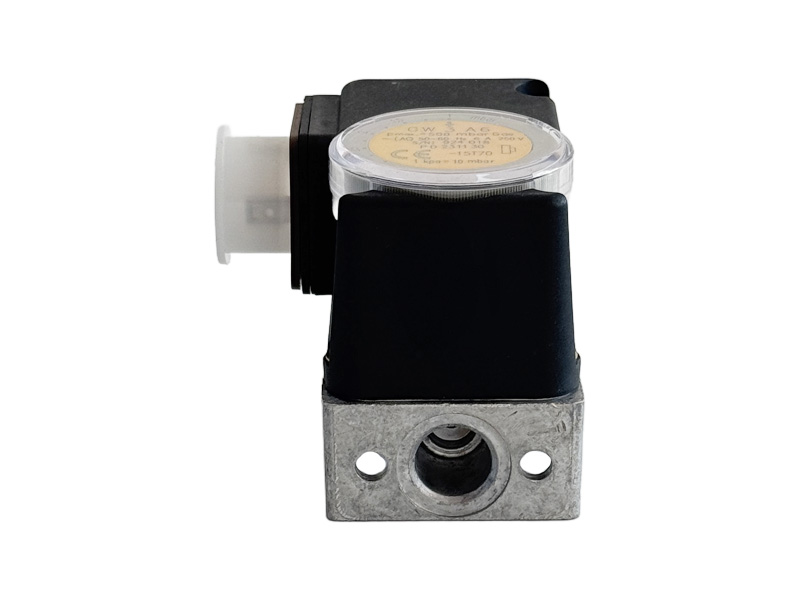

SUDICK GWA6 Pressure Switch detail view 3
Compact pressure switch viewed from the opposite side.

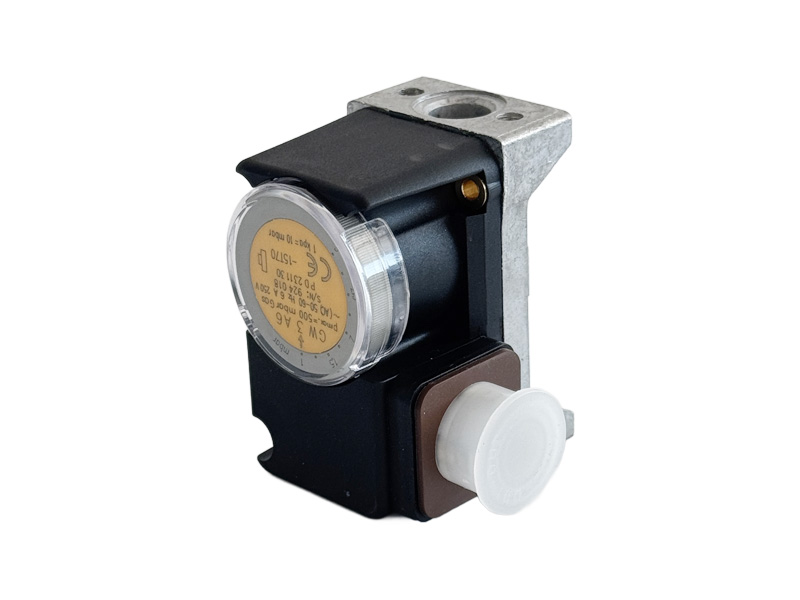

SUDICK GWA6 Pressure Switch detail view 4
Pressure switch adjustment cover and cable entry.

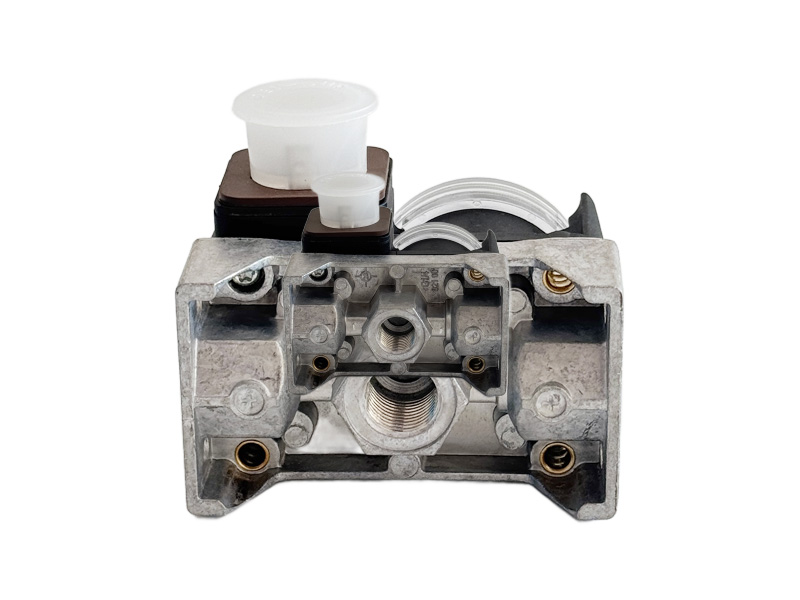

SUDICK GWA6 Pressure Switch detail view 5
Pressure switch underside and pressure port.

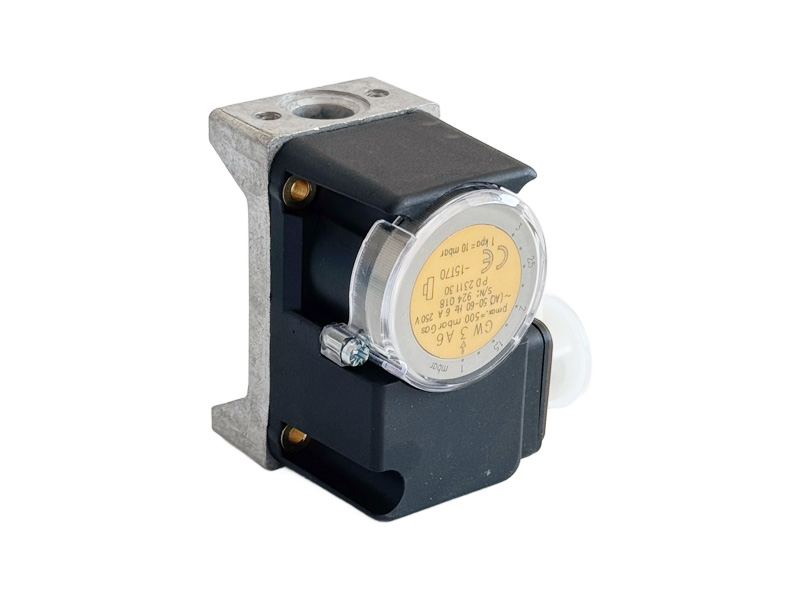

SUDICK GWA6 Pressure Switch detail view 6
Pressure switch angled housing view.

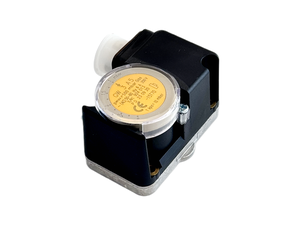

SUDICK GWA5 Pressure Switch

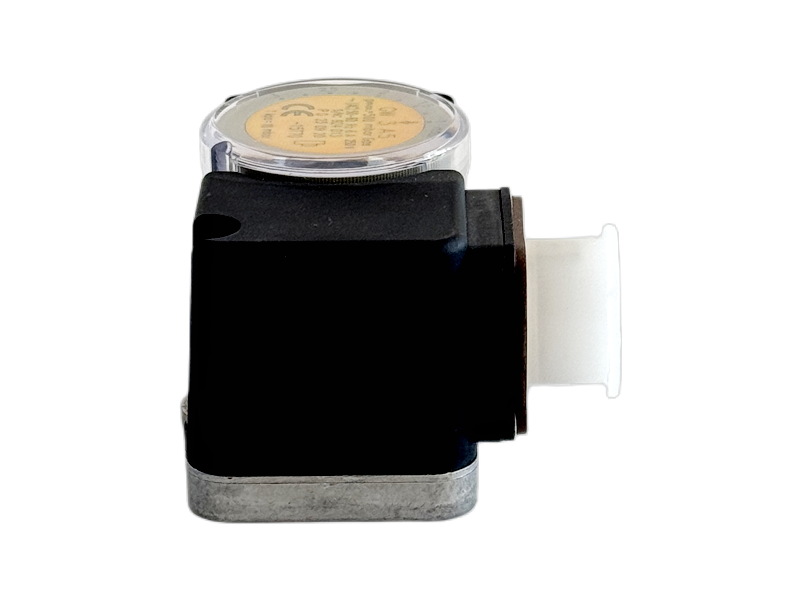

SUDICK GWA5 Pressure Switch detail view 2
Compact pressure switch housing and cable entry.

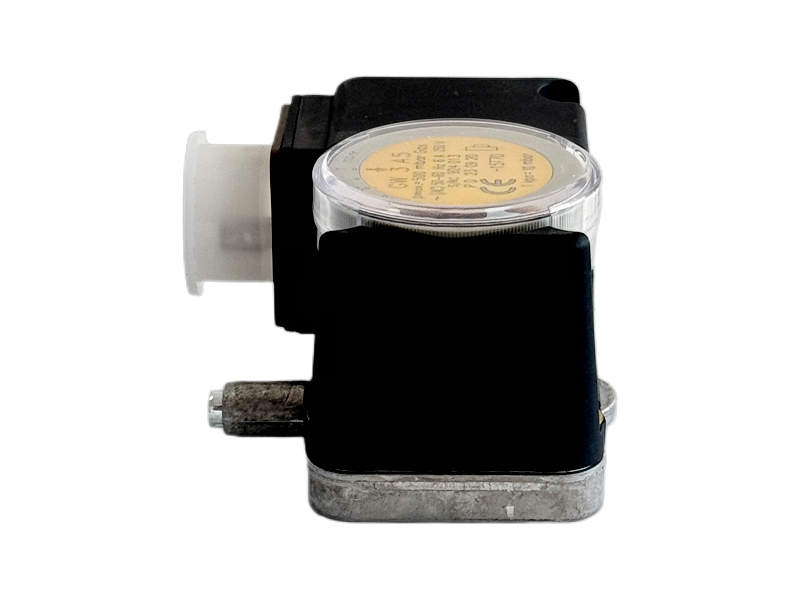

SUDICK GWA5 Pressure Switch detail view 3
Compact pressure switch viewed from the opposite side.

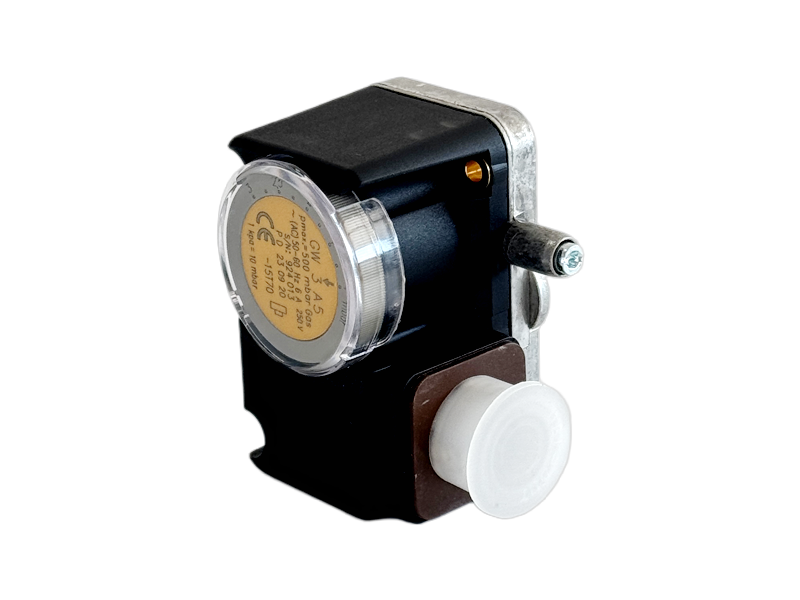

SUDICK GWA5 Pressure Switch detail view 4
Pressure switch adjustment cover and housing profile.

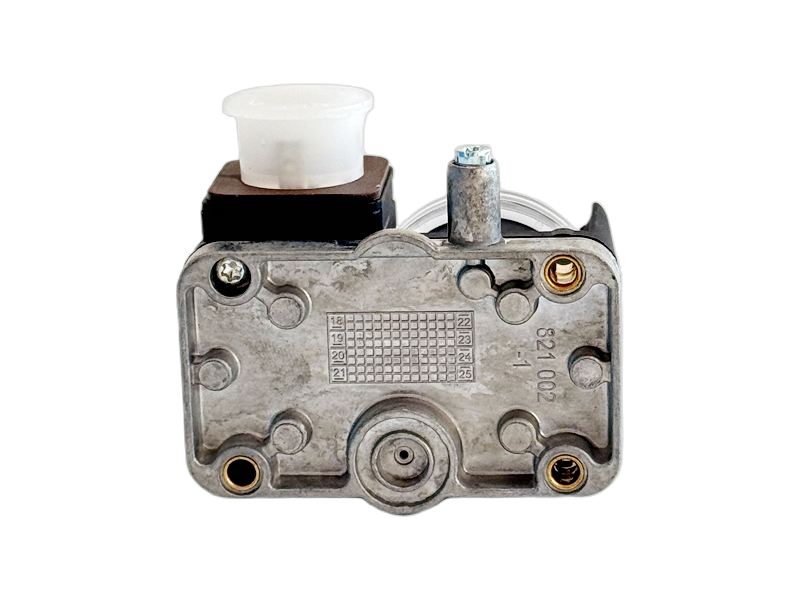

SUDICK GWA5 Pressure Switch detail view 5
Pressure switch underside and pressure connection.

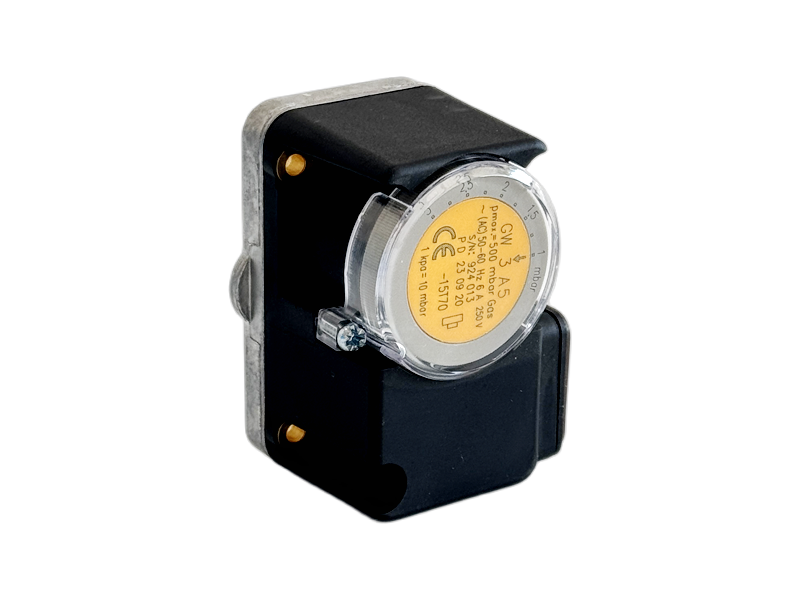

SUDICK GWA5 Pressure Switch detail view 6
