Description

SUDICK LOA, LMO, and LME burner control modules cover oil and gas burner control tasks where compact relay-style control hardware is required. This series keeps the oil-control LOA and LMO variants separate from the gas-control LME variants, with voltage, frequency, fuse, power, and weight data shown by model.

Model Specifications

Series Type Article No. Mains voltage Mains frequency Power consumption External primary fuse Weight
LOA LOA24.171B27 251 20 302 AC 220 V -15% to AC 240 V +10%; AC 100 V -15% to AC 110 V +10% 50...60 Hz +/-6% Approx. 3 VA Max. 10 A fast Approx. 180 g
LMO LMO24.111C2 251 20 027 AC 230 V +10%/-15% 12 VA 6.3 A slow Approx. 200 g
LME LME11.330C2 251 20 372 AC 120 V +10%/-15%; AC 230 V +10%/-15% Max. 10 A slow Approx. 160 g
LME22.232C2 251 20 371

Product Detail Images

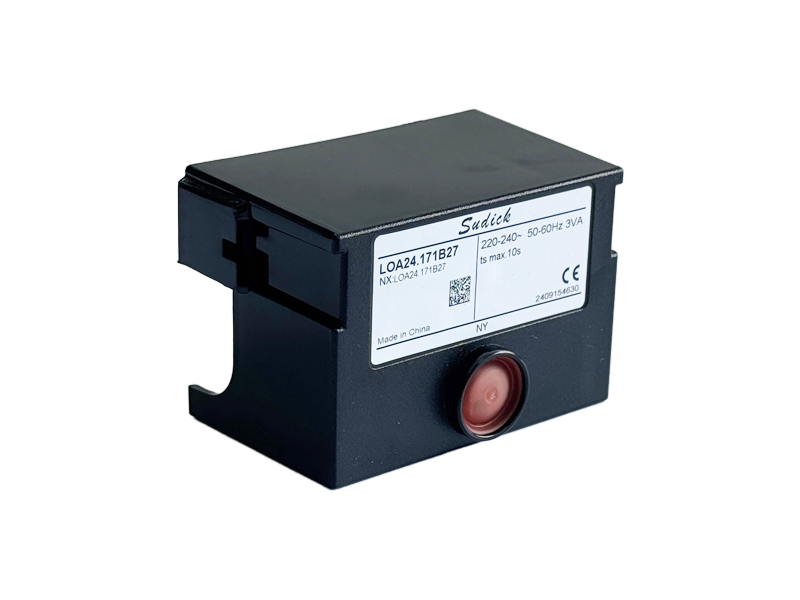

SUDICK LOA... Burner Control

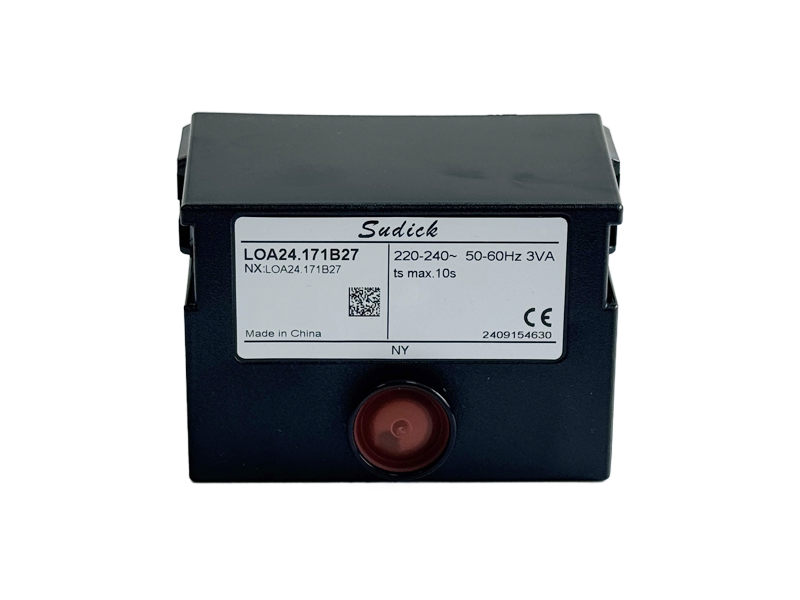

SUDICK LOA control application
LOA control housing with identification label and front button.

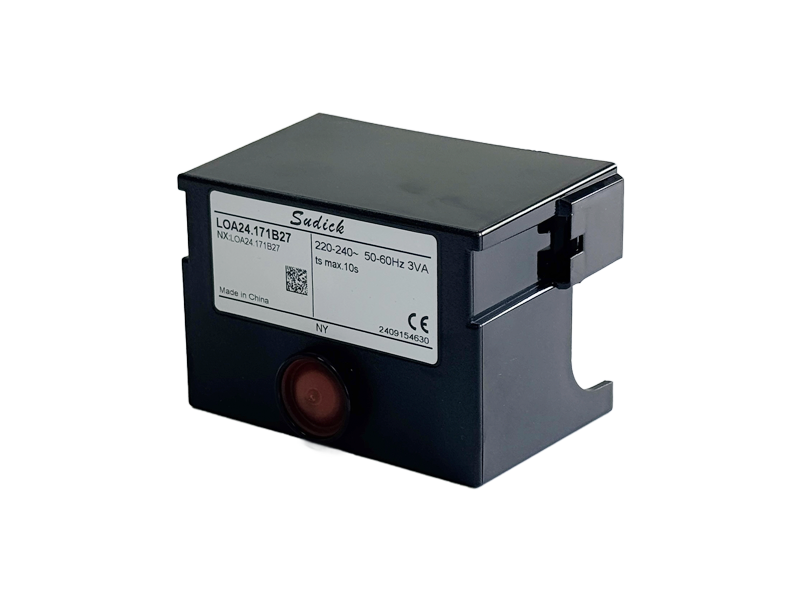

SUDICK LOA combustion optimization
LOA angled housing view.
SUDICK LOA monitoring view
LOA underside with connection markings.

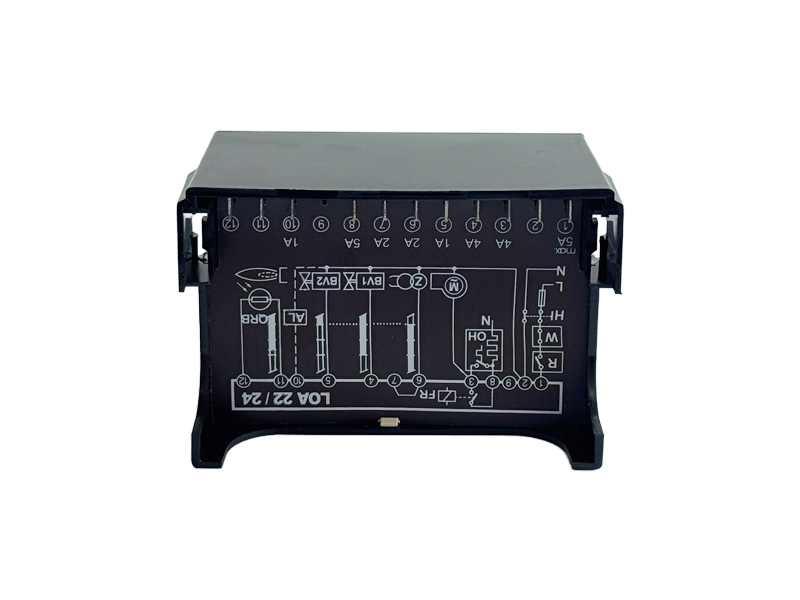

SUDICK LOA fuel regulation view
LOA plug-in connection face and printed diagram.

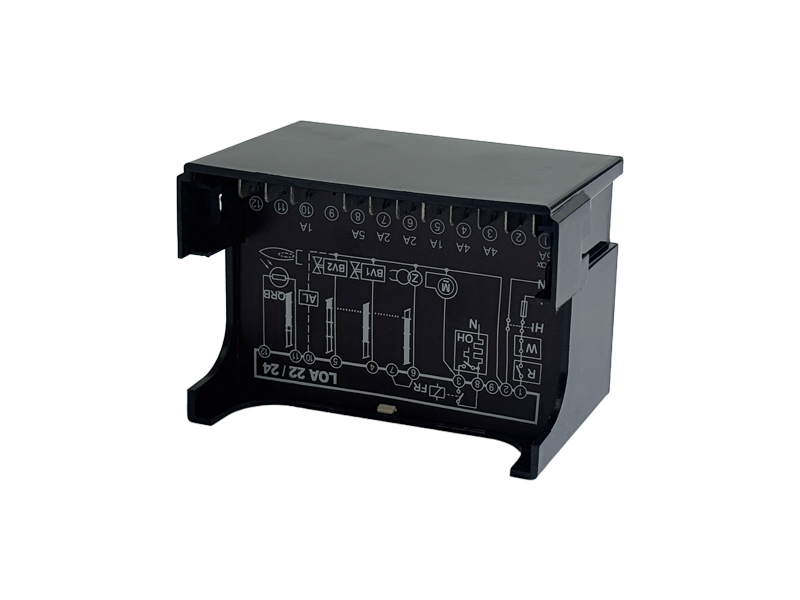

SUDICK LOA detail monitoring view
LOA connection face viewed from the opposite side.

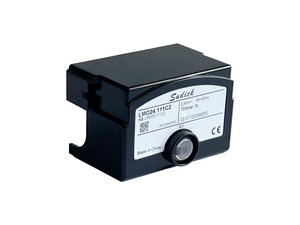

SUDICK LMO... Burner Control

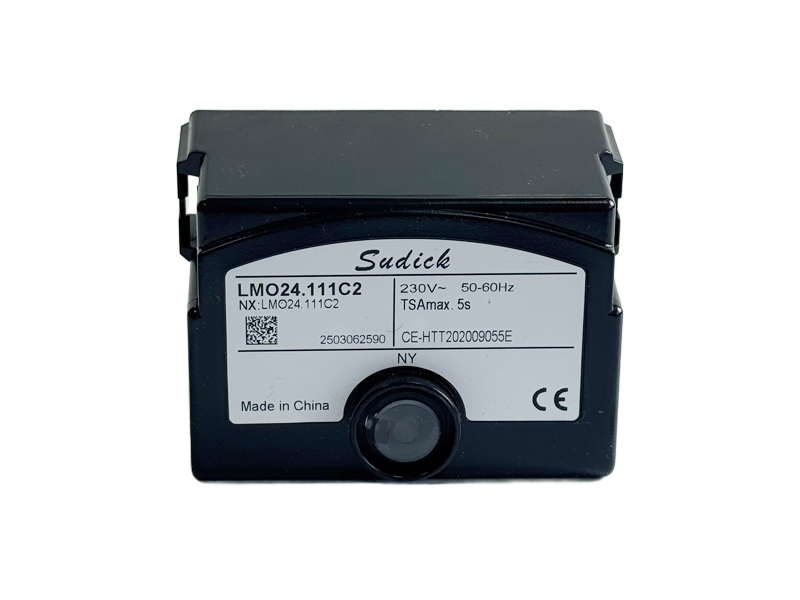

SUDICK LMO control application
LMO control housing with identification label and front button.

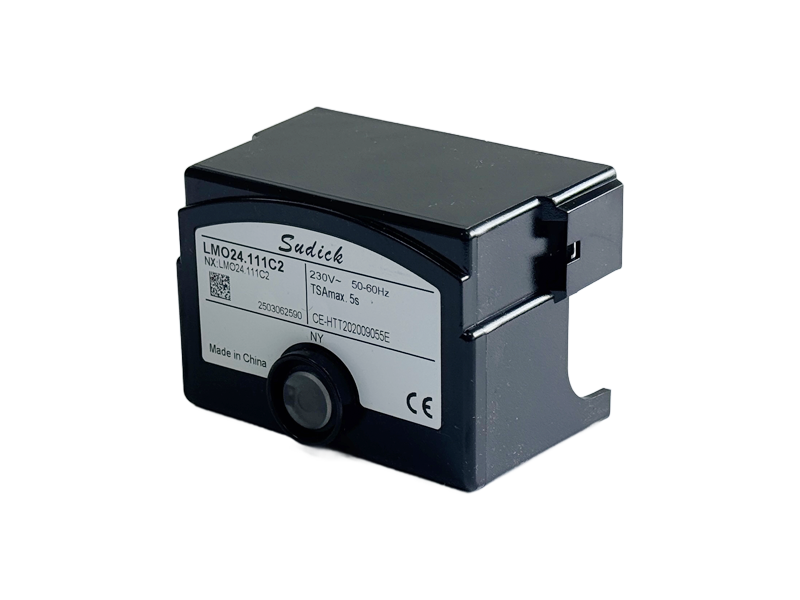

SUDICK LMO combustion optimization
LMO angled housing view.
SUDICK LMO monitoring view
LMO underside showing the plug-in connection layout.

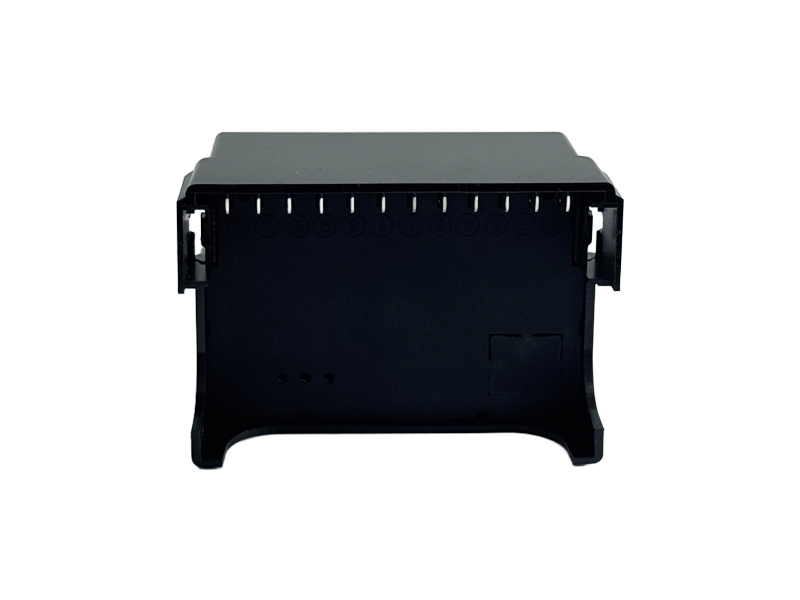

SUDICK LMO fuel regulation view
LMO plug-in connection face.

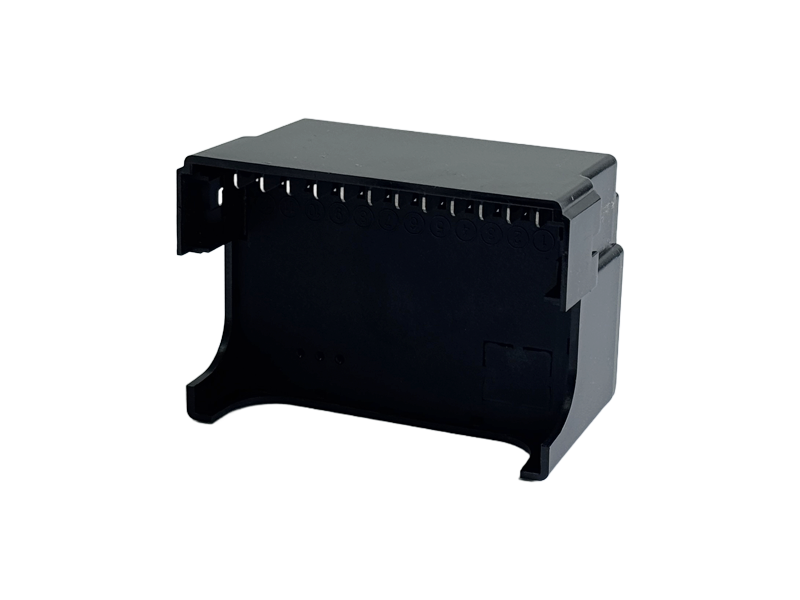

SUDICK LMO detail monitoring view
LMO connection face viewed from the opposite side.

SUDICK LME... Burner Control

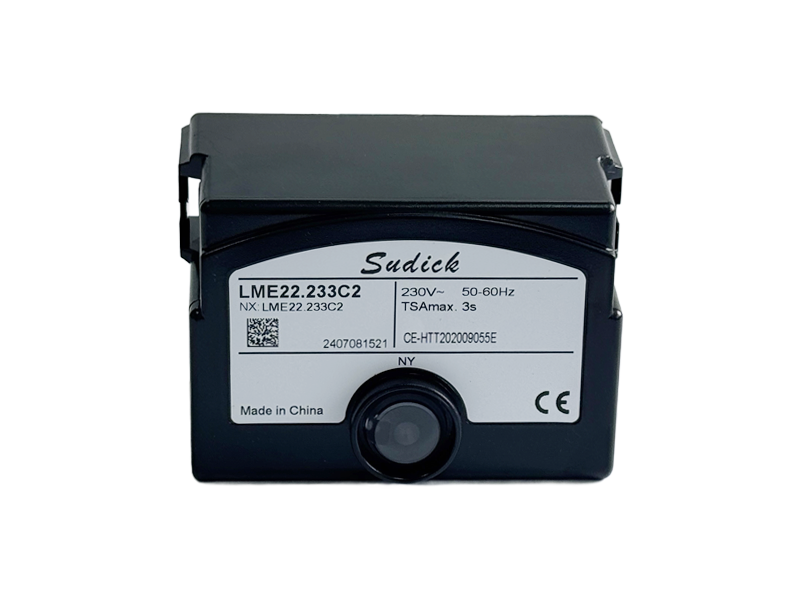

SUDICK LME control application
LME control housing with identification label and front button.

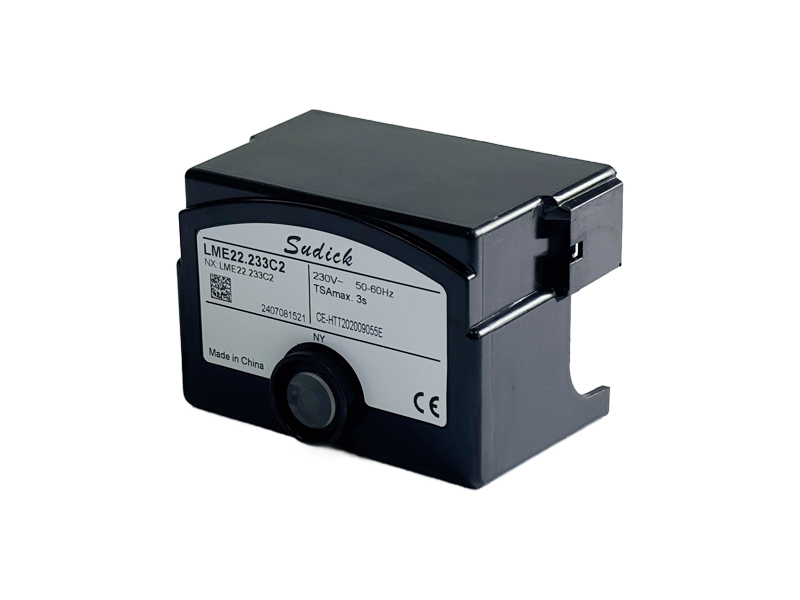

SUDICK LME combustion optimization
LME angled housing view.
SUDICK LME monitoring view
LME underside showing the plug-in connection layout.

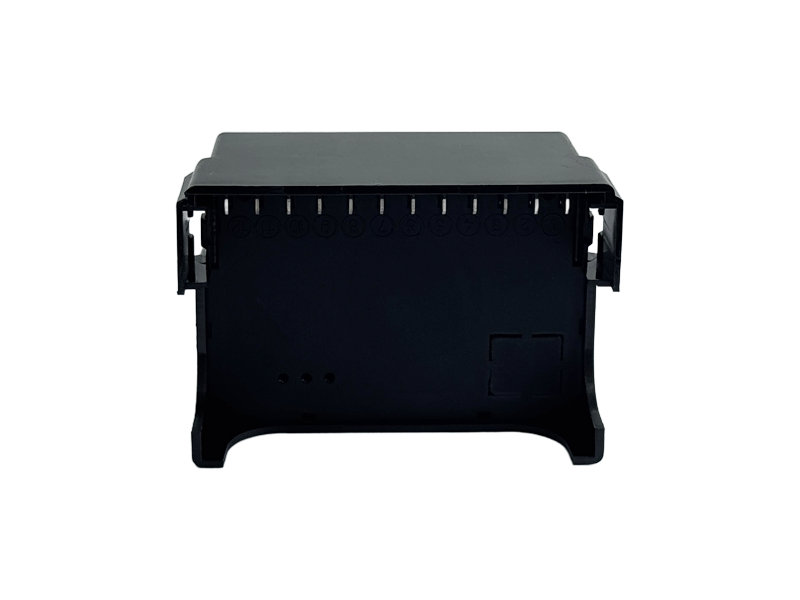

SUDICK LME fuel regulation view
LME plug-in connection face.

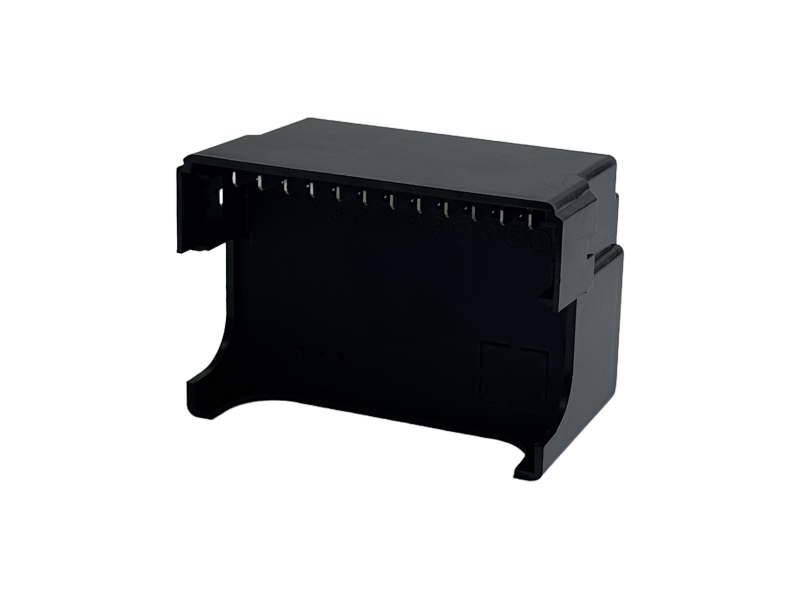

SUDICK LME detail monitoring view
LME connection face viewed from the opposite side.
