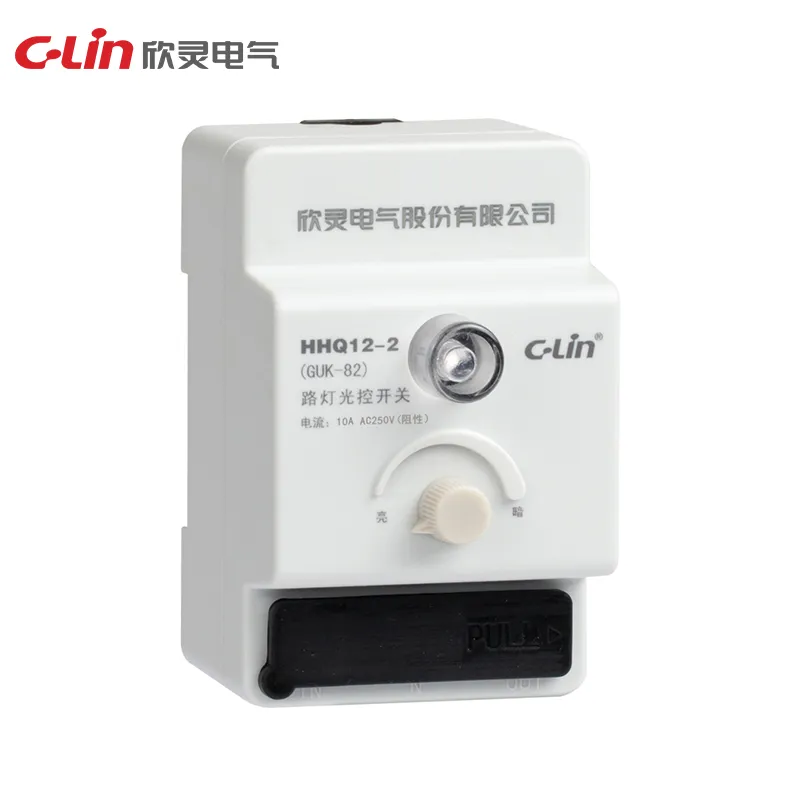

HHQ12 Series street light control switches turn lighting on at dark and off at dawn using adjustable light-control sensitivity. The series is suited to outdoor lighting control circuits that need simple automatic dusk-to-dawn operation.
| Model | HHQ12 |
|---|---|
| Working Power Supply | AC220V, 50Hz |
| Control Range | On at dark, off at dawn, adjustable sensitivity |
| Contact Capacity | HHQ12-1: 10A AC250V resistive load; HHQ12-2: 40A AC250V resistive load |
| Dimensions | 50 × 78 × 59mm |
| Installation Method | Device mounting or 35mm rail mounting |
