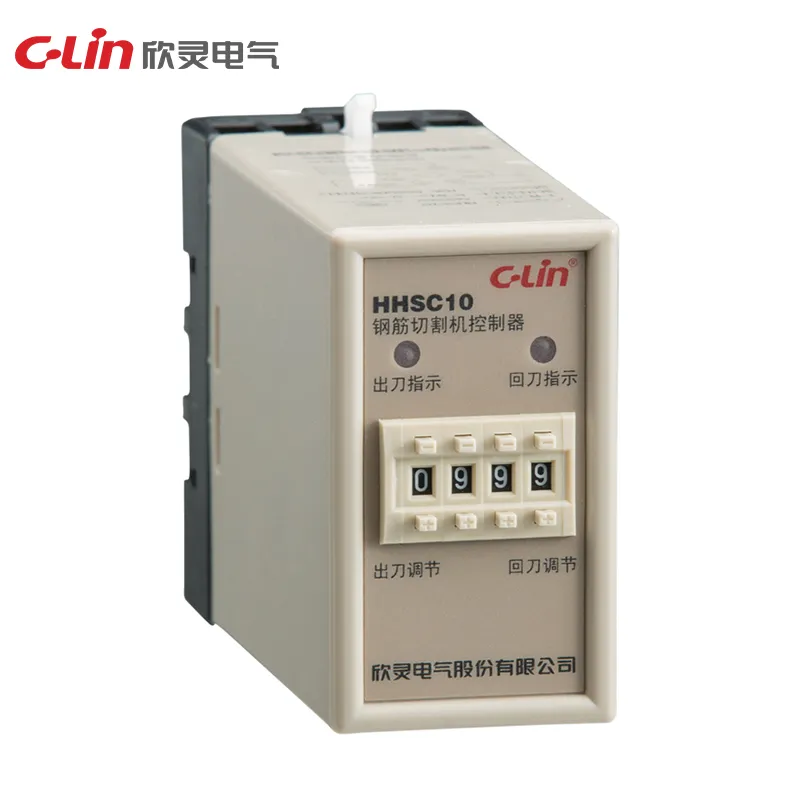

HHSC10 Series steel bar cutting machine controllers provide short power-on delay control and counting-signal output for cutting-machine control circuits. The controller is designed to work with AC contactors and supports panel or rail installation.
| Model | HHSC10 |
|---|---|
| Operating Voltage | AC24V, AC36V, AC110V, AC127V, AC220V, AC380V 50Hz; DC24V |
| Allowable Voltage Fluctuation | 85% to 110% of Ue |
| Delay Range | 0.01s to 0.99s |
| Repetition Error | ≤1% |
| Working Mode | Power-on delay |
| Contact Form | Two delayed changeover contacts and one counting signal contact |
| Contact Capacity | 10A AC250V resistive load |
| Dimensions | 45 × 82 × 108mm |
| Opening Size | 56mm with two 4.5mm diameter mounting holes |
| Installation Method | Panel/device mounting or 35mm rail mounting |
| Operating Temperature | -5 to +40°C |
| Application Note | Suitable for use with AC contactors |
