Square Bezel Metal Switch

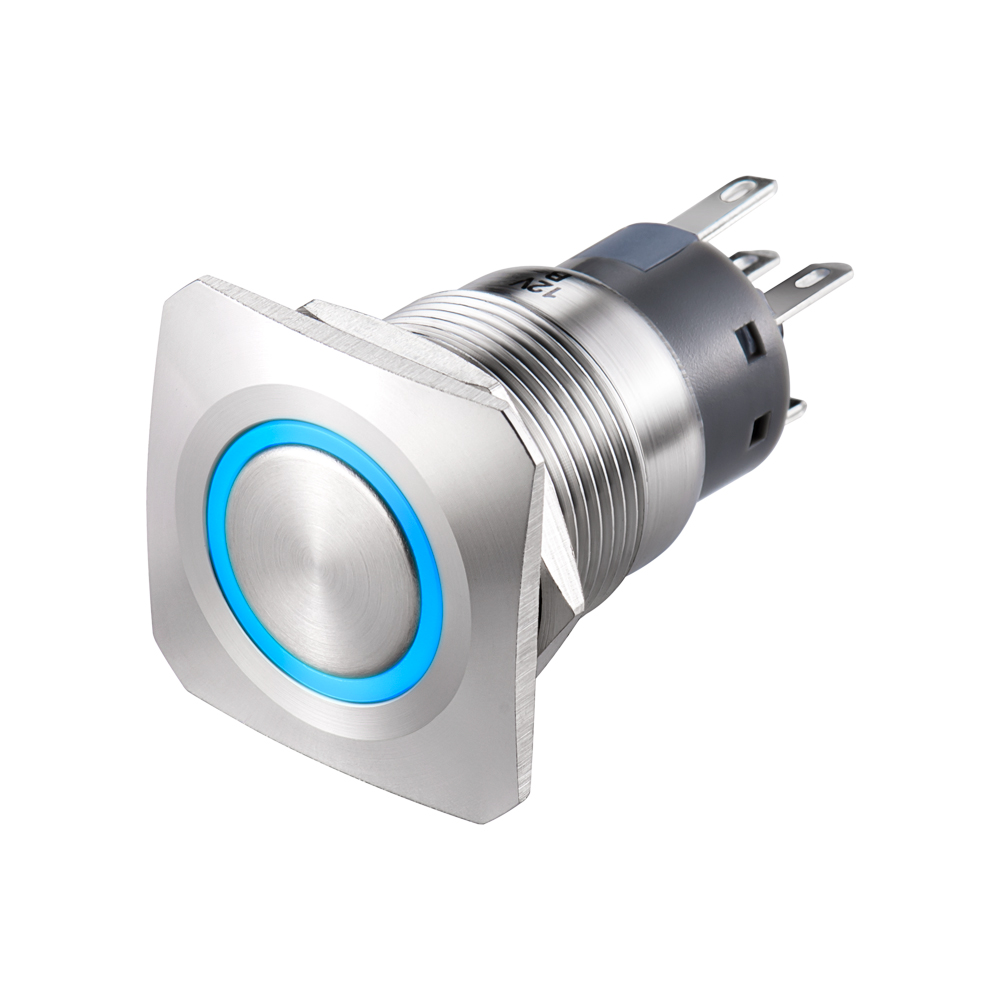

Square Bezel Anti-Vandal Switch (Blue Illumination)

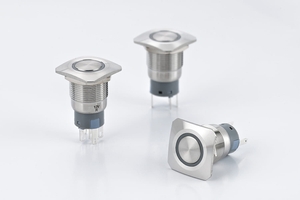

L22S Square Bezel Anti-Vandal Switch

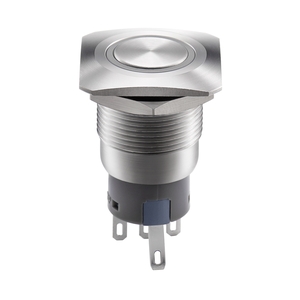

Square Bezel Anti-Vandal Switch (Non-Illuminated)

Series Part Number

Part Number: L19S F C M1 S D W 12V LE
Explanation:

Series

L19S - 19mm
L22S - 22mm

Actuator

F - Flat

Terminal

NONE - Solder-lug (2.8x0.5)
C - Wire-leads 300mm long

Function

M1 - Momentary 1NO1NC
M2 - Momentary 2NO2NC
Z1 - Latching 1NO1NC
Z2 - Latching 2NO2NC

Material

S - Stainless steel

Illumination Style

NONE - Non-illuminated
D - Dot illumination
R - Ring illumination
PS - Power backlit symbol
PY - Ring illum. & Power backlit symbol

LED-Color

NONE - Non-illuminated
W - White
R - Red
O - Orange
G - Green
B - Blue
Y - Yellow
RO - Red/Orange
RG - Red/Green
RB - Red/Blue
RY - Red/Yellow
OG - Orange/Green
OB - Orange/Blue
OY - Orange/Yellow
3A - Red/Green/Blue LED*
*Only for 1NO1NC (SPDT)

Illumination Voltage

NONE - Non-illuminated
1 - Base voltage**
3.3V - 3.3V illumination voltage
6V - 6V illumination voltage
12V - 12V illumination voltage
24V - 24V illumination voltage
36V - 36V illumination voltage
110V - 110V illumination voltage
220V - 220V illumination voltage

Graphic

NONE - Non-illuminated
LE - Laser etched

Description

The Square Bezel Anti-Vandal Switch provides a unique architectural aesthetic with its 25mm square bezel, offering a distinct alternative to standard round bezel designs. This switch combines a modern appearance with full vandal-proof functionality, making it an excellent choice for designer control panels, high-end security systems, and premium public interfaces.

Key Features

  • Distinctive Aesthetic: Features a 25mm square bezel for a unique and modern panel design.
  • Multiple Mounting Sizes: Available for 19mm and 22mm diameter panel cutouts.
  • Versatile Illumination: Supports dot, ring, or power symbol illumination with optional RGB LED configurations.
  • Robust Protection: IP65 rated for dust and moisture resistance, with IK09 impact resistance.
  • Flexible Switching: Available in SPDT and DPDT circuits with momentary or maintained (latching) functions.

Technical Specifications

Electrical Rating 5A, 250VAC
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Contact Resistance 50mΩ Max.
Insulation Resistance 1000 MΩ Min.
Dielectric Strength 2,000VAC
Operating Temp. -20°C to 55°C
Protection Level IP65 / IK09

Function & Order Configuration

Square Bezel Functions
SPDT and DPDT contact arrangements with single-color and RGB illumination connections.
Square Bezel Order Code
L19S and L22S ordering code with contact, terminal and illumination options.

Illumination & Installation

Square Bezel Illumination Options
Dot, ring and power-symbol illumination layouts.
Square Bezel Panel Cutout
19mm and 22mm panel cutouts for the square-bezel switch models.
Square Bezel Terminal Details
Terminal identification for single-color, bicolor and tricolor illuminated versions.

Dimensions

L19S Series

L19S Dimensions
L19S outline, mounting thread and terminal dimensions.

L22S Series

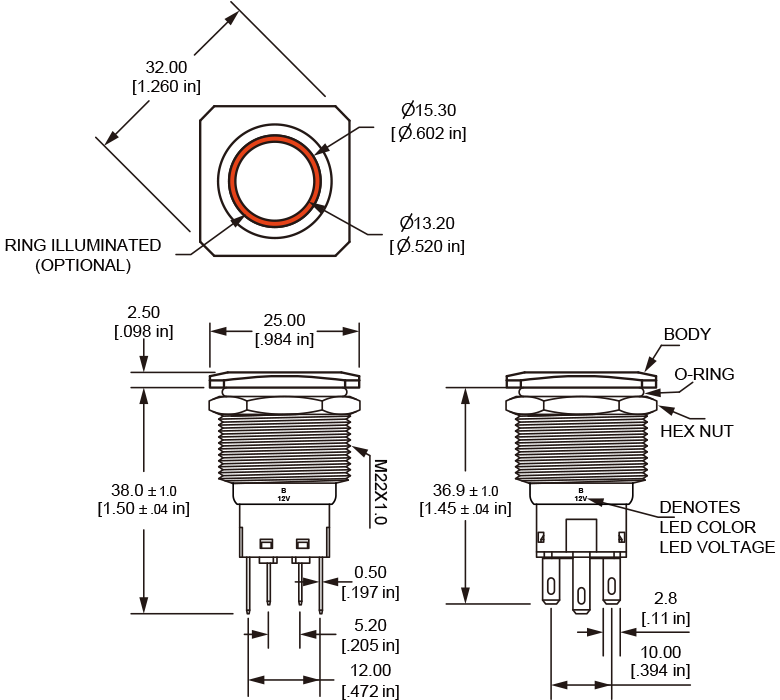

L22S Dimensions
L22S outline, mounting thread and terminal dimensions.
