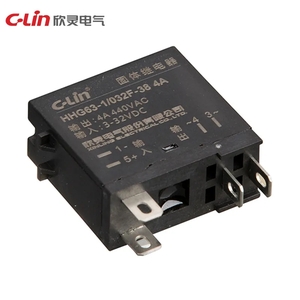

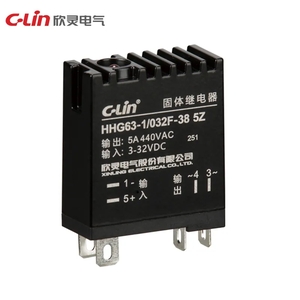

The HHG63 Series is a compact solid-state relay format for interface modules that need plug-in or DIN-rail mounting. The listed data covers AC-output code options for 1A-5A loads and a DC-output option with an aluminum housing for higher DC current.

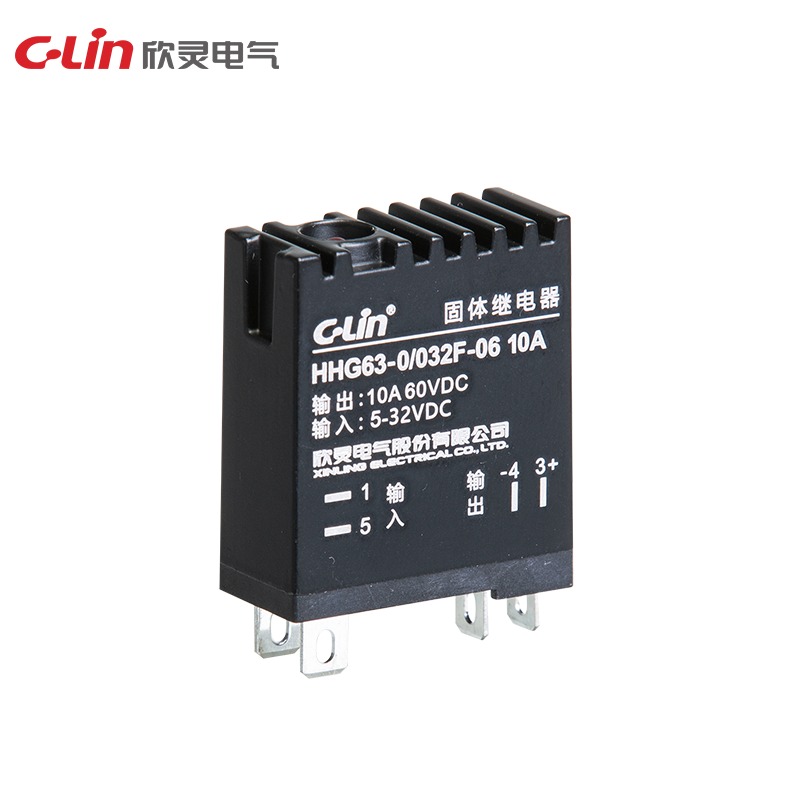

| AC-output control voltage | 3-32VDC |
|---|---|
| AC-output control current | 5-25mA |
| AC load voltage code | 22: 24-240VAC; 38: 24-440VAC |
| AC load current | 1A, 2A, 3A, 4A, 5A |
| AC on-state voltage drop | ≤1.6VAC |
| AC on-off time | ≤10ms |
| AC off-state leakage current | ≤10mA |
| DC-output control voltage | 5-32VDC |
| DC-output control current | 8-15mA |
| DC load voltage | 5-60VDC |
| DC load current | 10A, aluminum housing |
| DC on-state voltage drop | ≤1.2V |
| DC on-off time | ≤5ms |
| DC off-state leakage current | ≤5mA |
| Dielectric withstand voltage | ≥1500VAC; selected AC entries list ≥2500VAC |
| Ambient temperature | -30°C to 80°C |
| Dimensions | 30.6×12.8×33mm for compact AC version; 28.8×12.8×38.5mm for aluminum DC version |
| Installation | Dual-line plug-in and DIN rail mounting |
| Thermal instruction | Install beside a well-ventilated heat-dissipation area |
